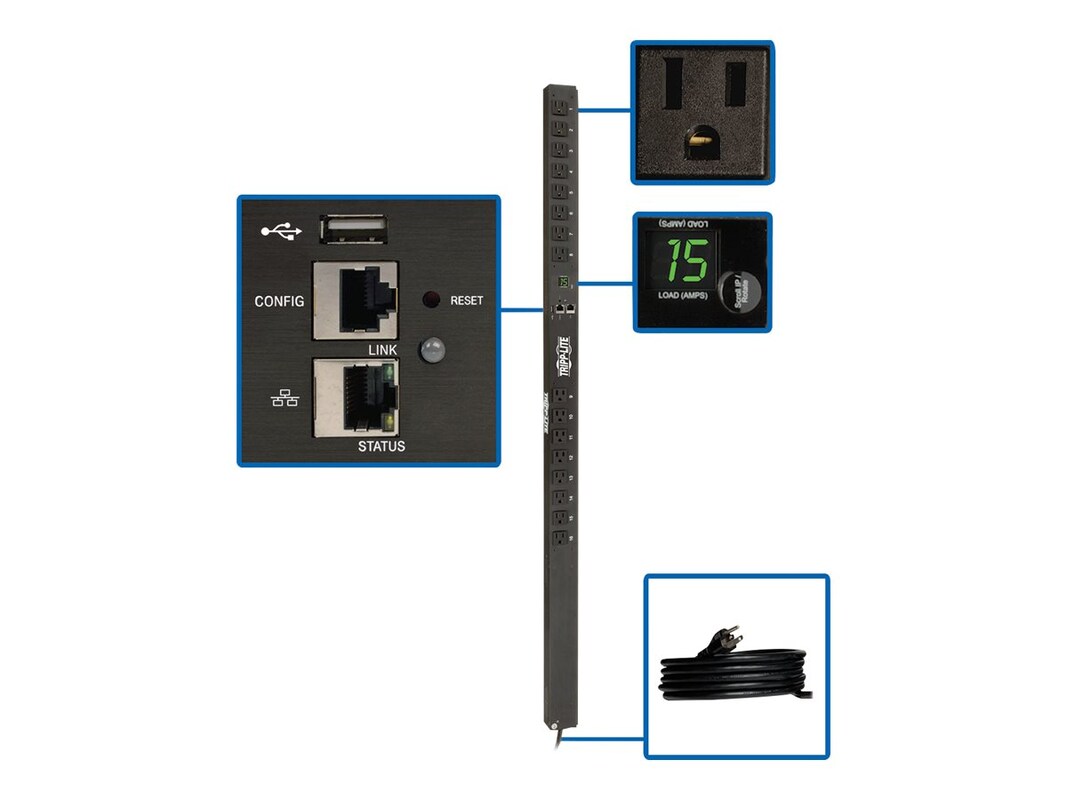

The Monitored 1.4kW PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for any IT or industrial application, it features 16 NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the PDU’s current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included rack-mounting bracket kit to install the unit with outlets facing the rear for better airflow or equipment access.
-
7.00 lbs
-
Features
Distributes Network-Grade Single-Phase Power:
1.4kW 120V monitored PDU with single-phase input/output
NEMA 5-15P with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements
16 Outlets Distribute AC Power:
16 NEMA 5-15R outlets deliver power to connected equipment
Cord retention brackets help prevent cables from becoming accidentally disconnected
Digital Ammeter:
Reports total connected equipment load
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility:
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
# Ports: 16Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15P
-
PDU with built-in LX platform interface, configuration cable, (16) cable ties, (2) cord retention brackets, rack-mounting hardware, mounting bracket accessory, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 7.01lbs
-
49"H x 2.19"W x 1.75"D
-
Power Provided: 1.4kWVoltage Provided: 120VVoltage Provided: AC 100/120/127V
-
PDU Type: Monitored
Output
Output Capacity Details: 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (16) 5-15R
Output Nominal Voltage: 100; 120; 127
Overload Protection: n/a
Input
PDU Input Voltage: 100; 120; 127
Recommended Electrical Service: 15A 120V
Maximum Input Amps: 15
PDU Plug Type: NEMA 5-15P
Input Cord Length (ft.): 10
Input Phase: Single-Phase
User Interface, Alerts, and Controls
Reported Load Segments : Supports local and remote monitoring of PDU output current in amps
Front Panel LCD Display: Digital meter reports PDU output current in amps and Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Front Panel LEDs: n/a
Switches: Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees
Physical
Material of Construction: Metal
Form Factors Supported: 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical
Environmental
Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: 5-95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0-3000
Communications
SNMP Compatibility: Built-in LX Platform Interface -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SMTPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
7 lbs
-
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07Compliant Standards: FCC Class A certifiedCompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: UL 60950-1:2007Compliant Standards: Yes
-
