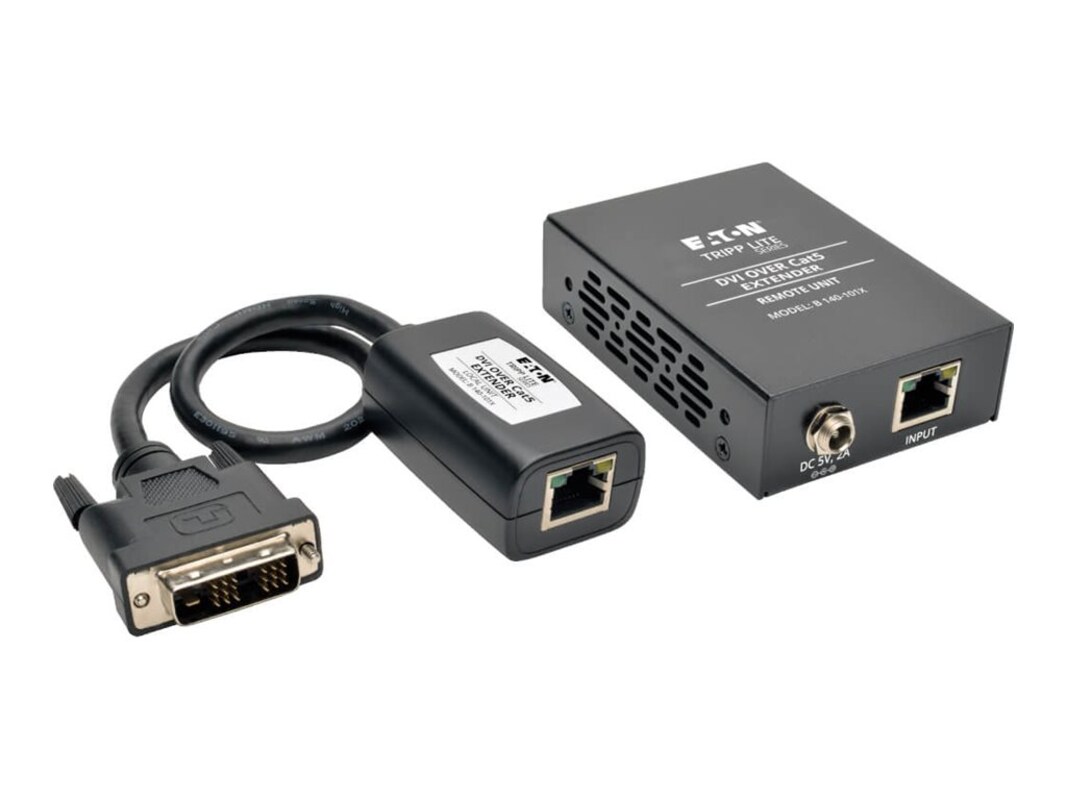

Tripp Lite's B140-101X DVI over Cat5 Active Extender Kit is the perfect solution for those who need to extend a DVI-D Single-Link signal up to 200 feet from the source. When using 24Awg, solid wire Cat5e/6 cabling (Tripp Lite N202-Series), the B140-101X can extend a 1024 x 768 (60Hz) signal up to 200 feet, or a 1920 x 1080 (60Hz) up to 150 feet.
Installation is quick and easy: Simply attach the local unit to your DVI source, attach the remote unit to your display, and then connect a Cat5e/6 patch cable between the two. If necessary, use the built-in Equalization setting on the remote unit to adjust the video image. Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted. The unit is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Installation is quick and easy: Simply attach the local unit to your DVI source, attach the remote unit to your display, and then connect a Cat5e/6 patch cable between the two. If necessary, use the built-in Equalization setting on the remote unit to adjust the video image. Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted. The unit is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
-
2 piece Transmitter/Receiver Kit
Extends a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 @ 60Hz, or up to 100 ft. at 1600 x 1200 @ 60Hz
Uses readily available Cat5e or Cat6 patch cables
No software or drivers required
Compatible with all operating systems
Remote unit is wall-mountable -
Connectivity Technology: Wired
-
Local unit, remote unit, screwdriver, mounting hardware, external power supply, documentation
-
Color: BlackForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: DVI Over Cat5/Cat6 Video Extender Kit Transmitter Receiver 200'Product Type: Extender
-
Networking Type: Video extender
-
Local unti:
(1) RJ-45 (F)
(1) DVI-D (M)
Remote unit:
(1) RJ-45 (F)
(1) DVI-D (F) -
External power supply (100-240VAC< 50-60Hz, 0.5A output: %V, 2A)
-
Networking Protocol: Wall mountable
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.28 lbs
-
Compliant Standards: TAA
-
Computer with DVI video card
Monitor with DVI input -
43222619
-
Warranty Period: 1 year
