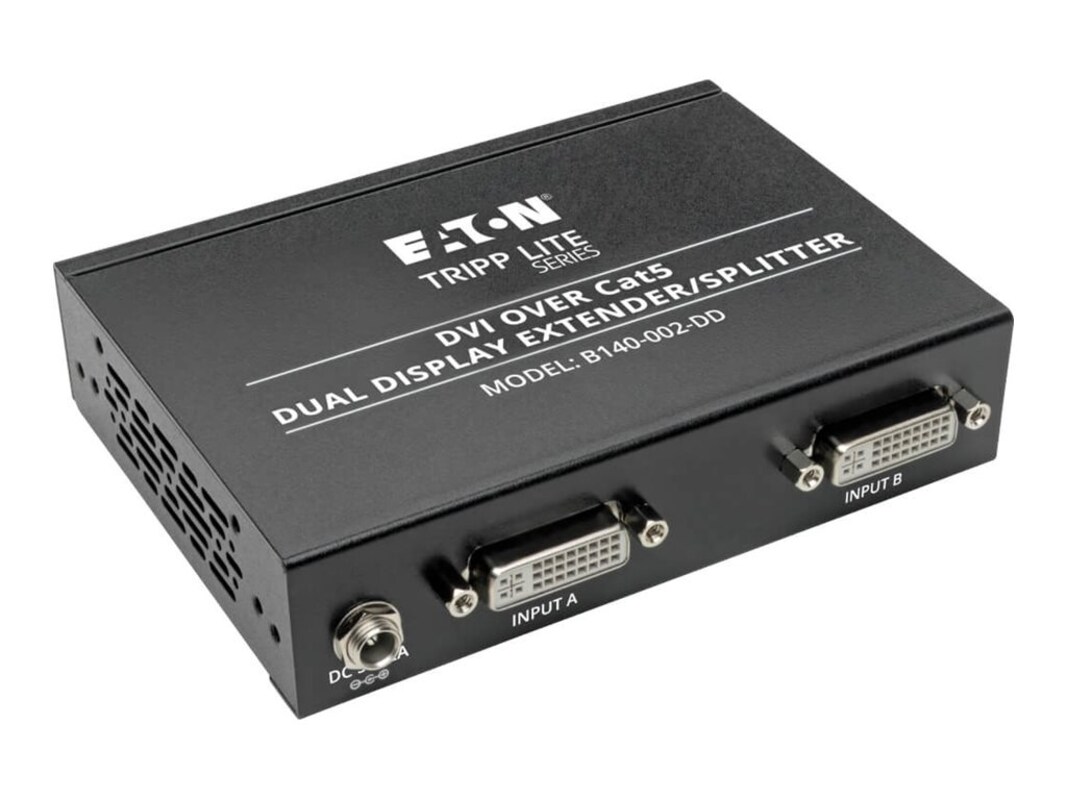

Tripp Lite 2-Port Dual Display DVI over UTP Cat5 Cat6 Extender Splitter

Transmits a DVI-D Single-Link signal from a set of Dual DVI inputs to two sets of Dual Displays.

A B140-Series remote receiver is needed at each monitor.

For longer distances: Use a B140-1A0 or B140-1A0-WP active receiver to extend a 1920 x 1080 @ 60Hz signal up to 150 ft. from the transmitter (or a 1024 x 768 @ 60Hz signal up to 200 ft. from the transmitter).

For shorter distances: Use a B140-1P0 or B140-1P0-WP passive receiver to extend a 1920 x 1080 @ 60Hz signal up to 50 ft. from the transmitter (or a 1024 x 768 @ 60Hz signal up to 100 ft. from the transmitter).

Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series to achieve maximum distance and resolution.

Further expand the range and number of monitors by adding B140-110 remote repeater units.

Add up to three repeaters on each of the B140-002-DD channels, for a total of 4 displays per channel (An active receiver should be the last unit in a channel).

A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. for each repeater added into a channel (or up to 175 ft. for a 1024 x 768 @ 60Hz signal).

DVI 1.0 compliant.

HDCP compatible.

Mounting hardware included that allows the unit to be wall-mounted, rackmounted, or pole mounted.

Plug and play; no software or drivers required.

Compatible with all operating systems.

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Splitter, power adapter, mounting hardware, documentation

(4) RJ-45 LAN
(2) DVI

Supply: 100-240VAC, 50/60Hz

This product is subject to our return policy. Please see our complete return policy for details.

13.8 lbs
