This network mode converter works with a variety of SFP and SFP+ transceivers to convert a multimode fiber signal to a singlemode fiber optic signal and extend it to a second network device. The mode conversion allows your network connection to reach hubs, switches and other devices located up to 80 kilometers (50 miles) away. The N786-MDC-SFPSFP is ideal for network engineers migrating toward higher-density data centers.
Not only does the N786-MDC-SFPSFP support SFP and SFP+ transceivers, as well as DDM functionality, it also supports IEEE 802.3ab 1000Base-Tx and IEEE 802.3z 1000Base-Fx protocols. You can easily hot-swap transceivers and cabling, so no system shutdown is necessary during routine maintenance.

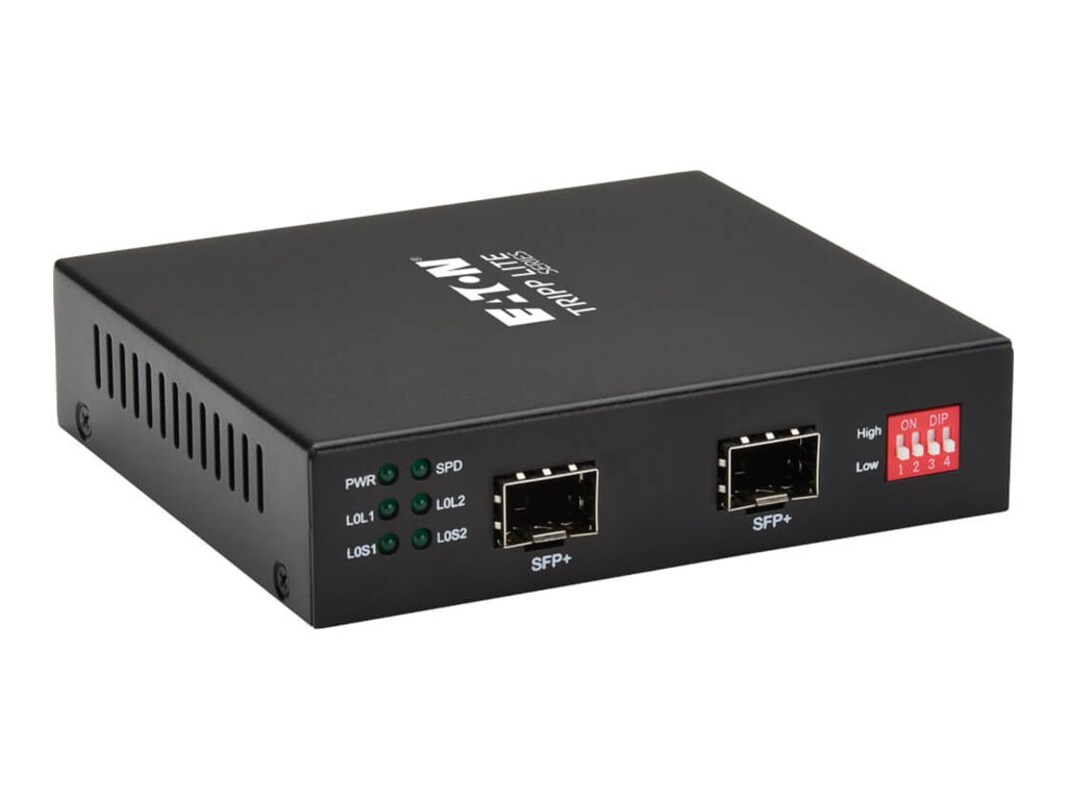

Easy-to-read LEDs on the side of the mode converter indicate essential status information, including network speed and connection, signal diagnostics and unit power. LEDs indicate when a fiber cable has been severed or another cause of disruption in service has occurred. DIP switches on the unit allow changing from 1.25–8.5 Gbps speeds to 10.3 Gbps speeds based on your installation needs.
The rugged metallic case is designed to operate in temperatures ranging from -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit).
-
1.90 lbs
-
Customizable converter extends up to 10 Gbps of data via open SFP+ port up to 80 km
Quick installation supports hot-swapping of connected transceivers and network cables
Durable housing withstands operating temperature range of -20° to 60°C
LEDs indicate fiber connection and various statuses, including data transfer speed
-
Cabling Type: Ethernet 1000Base-FXCabling Type: Ethernet 1000Base-TXConnectivity Technology: Wired
-
converter, power supply, (4) International plug adapters (North America, Europe, U.K., Australia), documentation
-
Color: BlackColor Family: BlackForm Factor: DesktopManufacturer Product Line: Eaton Tripp Lite SeriesWeight Taxonomy: 29.98oz
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 10Gbps
-
0.9"h x 2.9"w x 4.3"d
-
(2) SFP+ (M)
-
Supply: 100-240VAC, 50/60Hz, 0.35A
Consumption: 10W
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit Ethernet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.37 lbs
-
Compliant Standards: CAN/CSA-C22.2 No. 62368-1Compliant Standards: CECompliant Standards: CUCompliant Standards: CULCompliant Standards: FCCCompliant Standards: FCC Part 15 Class BCompliant Standards: GSCompliant Standards: IEC 62368-1Compliant Standards: LPSCompliant Standards: OM3Compliant Standards: OM4Compliant Standards: OM5Compliant Standards: OS2Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: TUVCompliant Standards: UKCACompliant Standards: ULCompliant Standards: UL 62368-1Compliant Standards: WEEE
-
26121609
-
Warranty Period: 2 years
