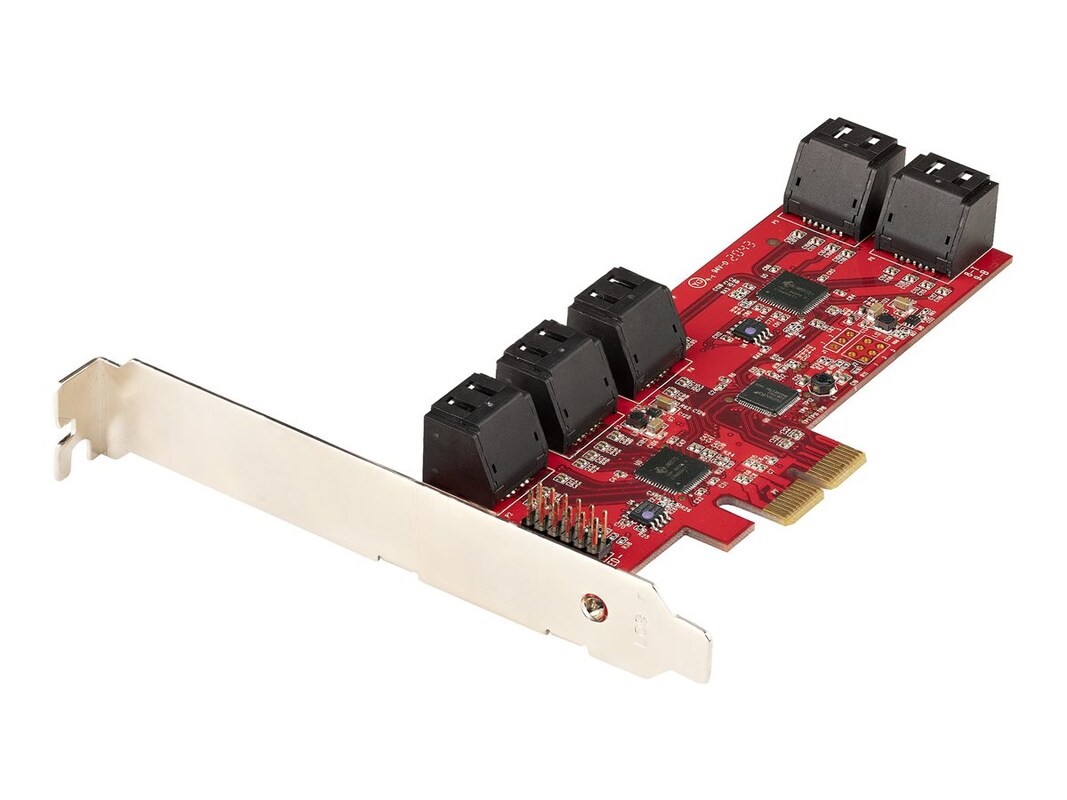

StarTech.com 10 Port PCIe SATA 6Gbps Adapter Converter Expansion Card

Print page
Item#: 41344050 // MFG Part#: 10P6G-PCIE-SATA-CARD // By: StarTech.com
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 1-2 Business Days
Ordering Information
$111.48
Qty:
  • SATA III 6Gbps PCIe 2.0 x2 card
  • SATA expansion adapter card
  • 10-Port SATA to PCIe Card w/ASM1062 controller for 8Gbps combined max
  • PCI Express 2.0/SATA 3.2/AHCI 1.3
  • ATA/ATAPI for HDD/SSD/ODD support
  • Windows/macOS/Linux
  • Full/low-profile
  • Serial ATA 7-pin Connector(s)
  • PCI-Express 2.0 x4 SATA 6Gb/s
  • Compatible OS: Apple macOS 13.0, Apple MacOS X 10.10 - 12, Linux 2.6.32 or later, Microsoft Windows 7
  • 8
  • 8.1
  • 10
  • 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7, Microsoft Windows 8, Microsoft Windows 8.1, Microsoft Windows 10, Apple iOS 10.1 or later
  • Plug and Play, RoHS Compliant
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 10Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).

The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
