- 1920 x 1080 Resolution
- HDDB15, DisplayPort, HDMI, 3.5mm audio, USB Type A, USB Type B, microSD slot, RJ-45, Power Connector(s)
- 1100:1 Contrast Ratio

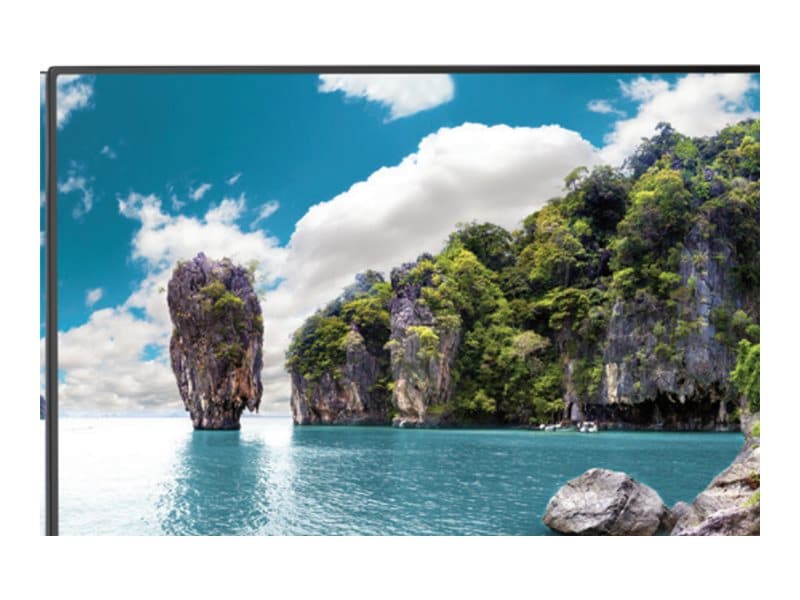

Sharp's 55" PN-UN553V sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for brightness intensity, gamma, uniformity, white point and RGB allows for ideal panel settings and an easy out-of-the-box experience. Brand new panel technology minimizes the bezel gap of this display, allowing for a <3.0mm distance between adjacent displays. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display also received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities.
-
63.10 lbs
-
SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability.
500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience.
Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation.
HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution.
TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall.
Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display.
400 x 400mm (4-hole, M6) VESA mounting pattern.
-
Connector: 3.5mm audioConnector: DisplayPortConnector: HDDB15Connector: HDMIConnector: microSD slotConnector: PowerConnector: RJ-45Connector: USB Type AConnector: USB Type BConnector Type: AudioConnector Type: DisplayPortConnector Type: EthernetConnector Type: HDMIConnector Type: microSD slotConnector Type: PowerConnector Type: USBConnector Type: VGA
-
display, Power cord, DisplayPort cable, HDMI cable, LAN cable, SD Card Cover, Clamp for Power Cable, documentation
-
ENERGY STAR Qualified: YesENERGY STAR Version: 8.0
-
Color: BlackColor Family: BlackManufacturer Product Line: Sharp MultiSyncModel: PN-UN553VWeight Taxonomy: 63.05lbs
-
Dot Pitch: 0.63mmImage Aspect Ratio: 16:9Response Time/Rate: 8ms
-
26.9"h x 47.4"w x 1.2"d
-
(1) HDDB15 VGA
(3) DisplayPort (2 in, 1 out)
(3) HDMI (2 in, 1 out)
(4) 3.5mm audio (2 in, 1 out)
(3) USB Type A
(1) USB Type B
(2) RJ-45
(1) MicroSD
(1) Power in
-
Battery Form Factor: AAA type
-
Supply: 100-240VAC
Consumption: 380W (All functions maxed); 190W (brightness max); 140W (typ.); 0.5W (eco mode standby)
-
Networking Protocol: LAN
-
This product is subject to our return policy. Please see our complete return policy for details.
-
88.2 lbs
-
43211902
-
Brightness (nits/cdm2): 500cd/m2Color Support: 1.07 billion colorsContrast Ratio: 1100:1Display Position Adjustments: Pivot (rotation)Display Size: 55inDisplay Technology: LCDDisplay Technology: LED backlightInternal Resolution (max): 1920 x 1080Television Technology: LED backlightViewing Angle (H/V degrees): 178/178
-
Warranty Period: 3 years
