- Serial RS-232Serial RS-422Serial RS-485 Transceiver
- 3.6Mbps Transfer Rate
- Ethernet, Fast Ethernet, RS-232, RS-422, RS-485, ICMP/IP, TCP/IP, UDP/IP Protocol(s)
- CSA, EN 60950, EN55022 Class A, FCC Class A certified, FCC Part 15, UL 1950 Compliant

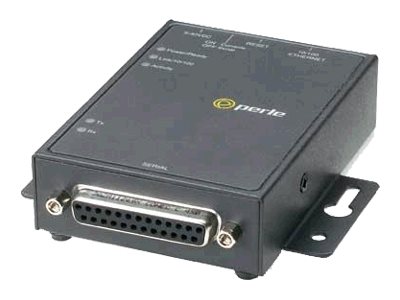

The IOLAN DS1 device server is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the IOLAN DS1 offers flexibility and advanced IP technology making it ideal for applications that require an efficient way of communicating with serial devices over a network.
-
0.90 lbs
-
Compliant Standards CE, FCC Class A certified, CSA, EN 60950, UL 1950, EN55022 Class A, FCC Part 15
-
# Ports: 1Cabling Type: Serial RS-232Cabling Type: Serial RS-422Cabling Type: Serial RS-485Connectivity Technology: Wired
-
Media Converter, documentation
-
Form Factor: ExternalManufacturer Product Line: Perle IOLANModel: DS1Weight Taxonomy: 0.88lbs
-
Modem Type: None
-
Networking Type: Device server
-
OS Required SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003
-
CD/DVD Type: None
-
Data Transfer Rate: 3.6Mbps
-
0.9"h x 2.5"w x 3.5"d
-
Interfaces 1 x serial - RS-232/422/485 - 25 pin D-Sub (DB-25)
1 x network - Ethernet 10BaseT/100BaseTX - RJ-45 -
Power Device Power adapter - external
Voltage Required AC 120 V
-
Processor Speed: 66MHz
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: ICMP/IPNetworking Protocol: RS-232Networking Protocol: RS-422Networking Protocol: RS-485Networking Protocol: TCP/IPNetworking Protocol: UDP/IPRemote Management Protocol: DHCPRemote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: TelnetTransport Protocol: ICMP/IPTransport Protocol: TCP/IPTransport Protocol: UDP/IP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.4 lbs
-
Compliant Standards: CSACompliant Standards: EN 60950Compliant Standards: EN55022 Class ACompliant Standards: FCC Class A certifiedCompliant Standards: FCC Part 15Compliant Standards: UL 1950
-
OS Required: HP-UXOS Required: IBM AIXOS Required: LinuxOS Required: Microsoft Windows 2000OS Required: Microsoft Windows 2000 / XPOS Required: Microsoft Windows NTOS Required: Microsoft Windows Server 2003OS Required: Microsoft Windows XPOS Required: SCO OpenServerOS Required: SunSoft SolarisOS Required: UnixWare
-
26121609
-
Warranty Period: Limited lifetime
