Omnitron 1000 BASE-LX BX FIBER TO FIBER

Print page
Item#: 41069720 // MFG Part#: 8653-1 // By: Omnitron Systems Technology

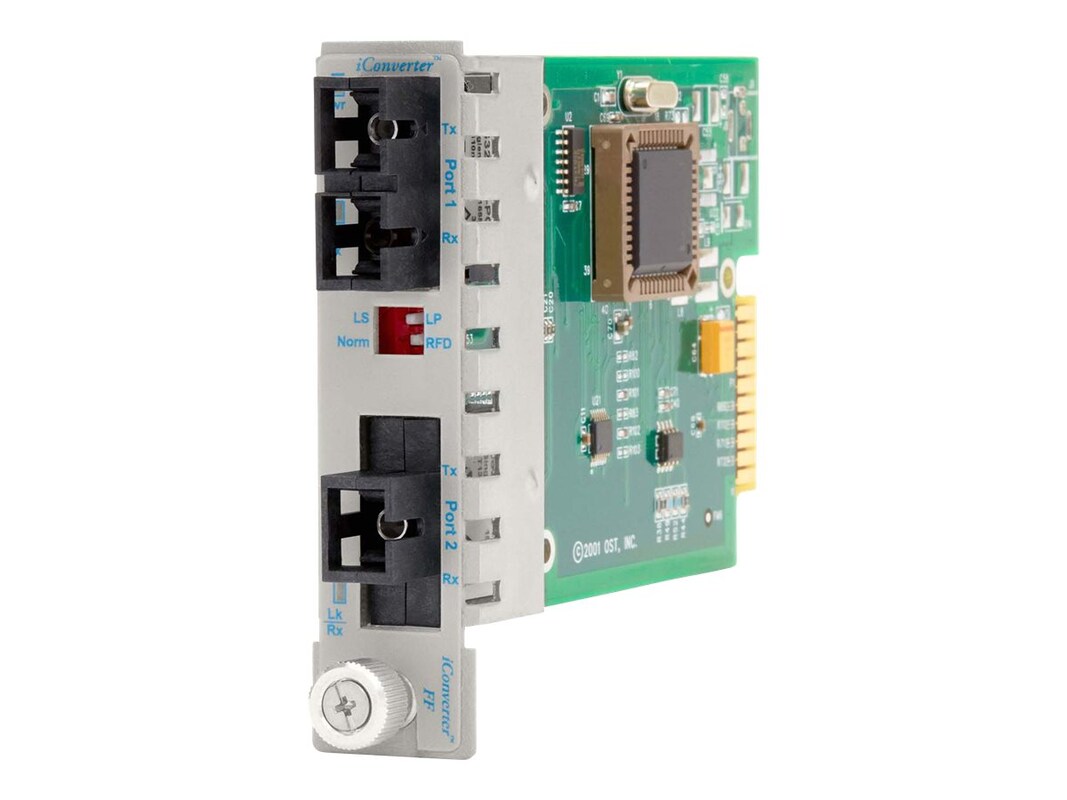

Omnitron Systems Technology 8653-1 Main Image from Left-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • Temporarily Out-of-Stock
  • Call for next available delivery
Ordering Information
$2,017.69
Qty:
  • 1.0Gbps1Gbps Transfer Rate
  • Gigabit Ethernet Protocol(s)
  • FCC Class A certified, NEBS Level 3, UL Compliant
The iConverter 1000FF managed media converter is a member of the modular iConverter product family. The 1000FF provides single-mode to multimode fiber conversion and is a cost-effective solution to extending network distances by connecting multimode fiber network devices over single-mode fiber cabling.

iConverter 1000FF models feature SC connectors and are available with multimode, single-mode and single-fiber options. The single-mode fiber port supports distances up to 80km, and the multimode fiber port supports distances up to 550m. The 1000FF features user-selectable link propagate and remote fault detection modes to facilitate quick fault detection, isolation, and reporting.

iConverter 1000FF modules are hot-swappable and can be mounted in a 19-module (2U high) or 5-module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-module AC or 18 to 60VDC powered chassis, or in a 1-module AC/DC powered chassis.
