NVIDIA MPO12 APC to 2xMPO12 APC MMF Passive Fiber Cable, 20m

Print page
Item#: 41596405 // MFG Part#: MFP7E20-N020 // By: NVIDIA

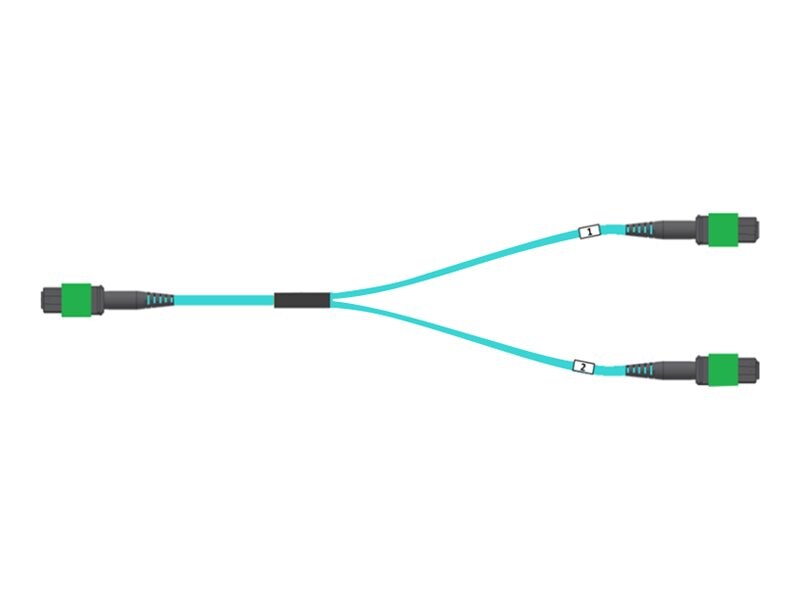

NVIDIA MFP7E20-N020 Main Image from Front
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 24-48 Hours
Ordering Information
$197.95
Qty:
  • MPO-12/APC multi-mode Connector(s)
  • ANSI/TIA/EIA-604-5-199, GR-1435, IEC 61754-7 Compliant
  • Aqua
The NVIDIA MFP7E20-N020, is a multimode, 4-channel-to-two 2-channel splitter fiber cable. The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The Angled Polished Connector has an 8-degree polished angle to deflect internal optical back reflections from entering the transceivers and distorting the signal quality.
The 4-channel end is inserted into a Twin port OSFP, 800 Gb/s transceiver. The 2-channel ends are inserted into two, single-port 400 Gb/s OSFP and/or QSFP112 transceivers which with only 2 fibers can output 200G rates. Two splitter fiber cables are used in the twin-port OSFP transceiver enabling four, 2-channel ends to four transceivers.
The fibers are "crossover", Type-B cables enable directly attaching two transceivers together and allow the transmit laser fiber on pin 1 to "crosses over" and align with pin 12 of the opposite fiber end transceiver photodetector.
