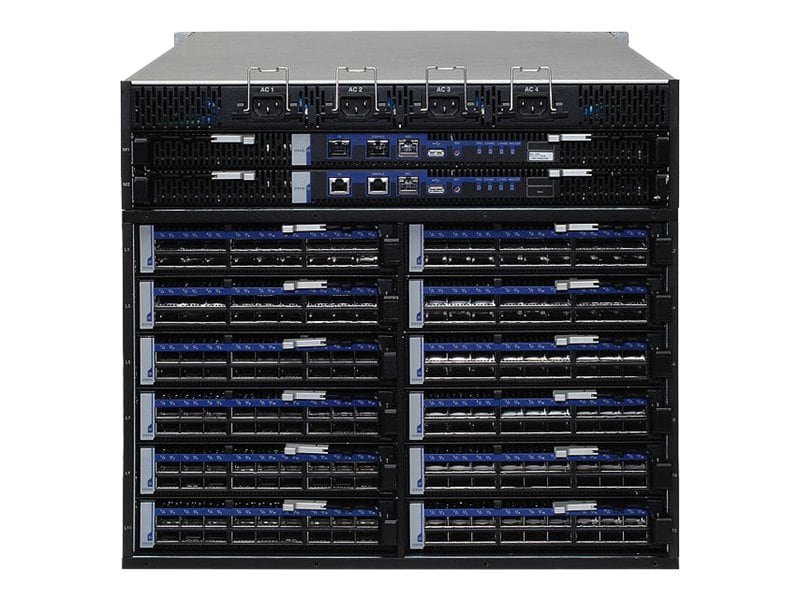

The SX6512 switch system provides the highest-performing fabric solution in a 9U form factor factor by delivering 24.2Tb/s of non-blocking bandwidth with 170ns to 510ns port latency.
Built with Mellanox's 5th-generation Switch InfiniBand switch device, the SX6512 provides up to 216 56Gb/s full bi-directional bandwidth per port.
The SX6512 can scale as the number of nodes per cluster and the number of cores per node increase. This modular chassis switch provides an excellent price-performance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.
Built with Mellanox's 5th-generation Switch InfiniBand switch device, the SX6512 provides up to 216 56Gb/s full bi-directional bandwidth per port.
The SX6512 can scale as the number of nodes per cluster and the number of cores per node increase. This modular chassis switch provides an excellent price-performance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.
-
216 FDR (56Gb/s) ports in a 9U switch
24.2Tb/s aggregate switching capacity
170ns to 510ns switching latency
Hardware-based routing
Congestion control
Quality of Service enforcement
FDR/FDR10 support for Forward Error Correction (FEC) -
# Ports: 216
-
Switch, documentation
-
Color: BlackForm Factor: Rack-mountableManufacturer Product Line: Mellanox InfiniBandModel: SX6512
-
Networking Type: Switch
-
(216) FDR
-
# Power Supplies Installed: 4# Power Supplies Supported: 4
-
Supply: 90-264VAC, 47/63Hz
-
Networking Protocol: IBTA 1.21Networking Protocol: IBTA 1.3Remote Management Protocol: CLI
-
This product is subject to our return policy. Please see our complete return policy for details.
-
131.72 lbs
-
Compliant Standards: CBCompliant Standards: CCCCompliant Standards: C-TickCompliant Standards: CTUVusCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022 Class ACompliant Standards: EN55024 Class ACompliant Standards: ETS 300 753Compliant Standards: FCC Class A certifiedCompliant Standards: GOST-RCompliant Standards: ICES-003 Class ACompliant Standards: IEC 60068-2-29Compliant Standards: IEC 60068-2-32Compliant Standards: IEC 60068-2-64Compliant Standards: IEC 60950Compliant Standards: ISO 7779Compliant Standards: KCCCompliant Standards: RoHSCompliant Standards: RoHS 6/6Compliant Standards: S MarkCompliant Standards: VCCI Class A ITE
-
43222612
-
Warranty Period: 1 year
-
