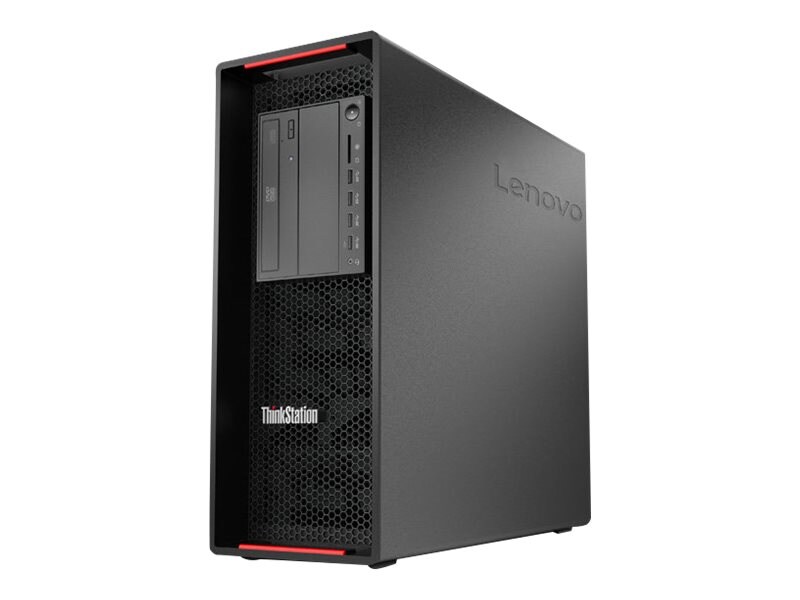

Lenovo ThinkStation P720 Tower vPro (2x)Xeon 8C Silver 4208 2.1GHz 32GB 1TB OPAL 2xGbE 1000W W11P64WS

52.30 lbs

Security features:
Power-on and admin password
Trusted Platform Module, TCG 2.0 compliant, switch to 1.2 via UEFI setting Chassis intrusion switch
Optional access panel lock, Kensington lock, and pad lock

Systems management:
Intel Active Management Technology 11
Front panel warning LED
ThinkStation Diagnostics for Windows
Photo-audio transfer with Lenovo PC Diagnostics for Android and iOS
Optional front 4-digit diagnostic display on flex module

Desktop, keyboard, mouse, power supply, documentation

When purchasing additional service plans, the term years must match

32GB (2x16GB) ECC RDIMM DDR4 SDRAM, upgradeable to 384GB.

There are twelve DIMM slots. Two slots are occupied by removable 16GB modules; the other slots are open.

Memory notes:
Each processor supports up to six DIMM slots with six channels.
Only RDIMMs are supported.
Memory speed will truncate down to match processor data bus speed.

Video memory: graphics card(s) sold separately.

Genuine Windows 11 Pro for 64-bit Edition for Workstations is pre-installed.

17.6"h x 6.9"w x 19.1"d

Expansion slots:
Slot 1 (CPU2): PCIe 3.0 x16, FH/FL, 75W
Slot 2 (CPU1): PCIe 3.0 x16, FH/FL, double-width, 75W
Slot 3 (CPU1): PCIe 3.0 x8, FH/FL, open-ended, 25W
Slot 4 (CPU1): PCIe 3.0 x16,, FH/FL, double-width, 75W
Slot 5: PCI, FH/FL, 25W
Slot 6 (PCH) PCIe 3.0 x4, FH/HL, open-ended, 25W
(2) Onboard M2

Expansion bays:
(4) 3.5" drive bays; two standard, two optional
(2) 5.25" flex bays

Media reader:
(1) 9-in-1 USB 2.0 card reader (on most models)
Optional UHS-II 15-in-1 USB 3.0 reader on flex module

I/O:
Front:
(4) USB 3.0 (includes one 11W charging)
(1) 3.5mm combo audio/microphone
Back:
(2) USB 2.0
(4) USB 3.0
(2) RJ-45 LAN
(3) 3.5mm audio (line-in, line-out, mic-in)
(2) PS.2
(1) Power in

M.2 slot notes:
Supports up to (9) M.2 PCIe NVMe SSDs
Up to (1) FH/FL PCIe 3.0 x16 adapter; supports (4) M.2 slots
Up to (3) PCIe 3.0 x4 adapters; each adapter supports (1) M.2 slot
NOTE: Supports RAID 0/1 on onboard M.2 disks and RAID 0/1/10/5 on quad M.2 PCIe x16 adapter; NVMe RAID upgrade is needed

Disk drive bays notes:
Each bay supports (1) 3.5" or 2.5" SATA/SAS disk drives (SAS disk support needs 9440-8i or 9460-16i).
Selected models supports (4) internal 3.5" dual drive bays
Each bay supports (1) 3.5" HDD plus (1) 2.5" SATA SSD, or;
(2) 2.5" SATA/SAS disks.
Supports up to (4) 2.5" U.2 SSD on selected models
Up to (2) 2.5" or 3.5" SATA disk drives on 5.25" flex bays via (1) 5.25" Front
Access Storage Enclosure plus (1) 5.25" slim ODD and HDD cage

5.25 flex bay notes:
Supports the following options:
Up to (2) HH optical drives, or;
Up to (2) 5.25” slim ODD cages, each supports one 9.0mm optical drive, or;
Up to (2) 5.25" slim ODD and HDD cage for (1) 9.0mm optical drive plus (1)
3.5" or 2.5" SATA disk, or;
Up to (1) Front Access Storage Enclosure for (1) 3.5" or 2.5" SATA disk, or;
Up to (1) flex module for (1) or more of the following options:
9.0mm optical, 15-in-1 USB 3.0 reader, Front eSATA Front Thunderbolt, 4-digit diagnostic display
NOTE: Only one can be supported from 15-in-1 reader, Thunderbolt, and 4-digit display

Storage controller:
Onboard Intel RSTe SATA controller, supports RAID levels 0/1.

Network controller:
Integrated two-port gigabit ethernet (Intel i219LM and i210AT)
Supports Wakeon-LAN on both two ports
Optional PCIe ethernet or wireless adapters are available

1000W fixed platinum power supply
