Limited Quantity Available
- Call for next available delivery

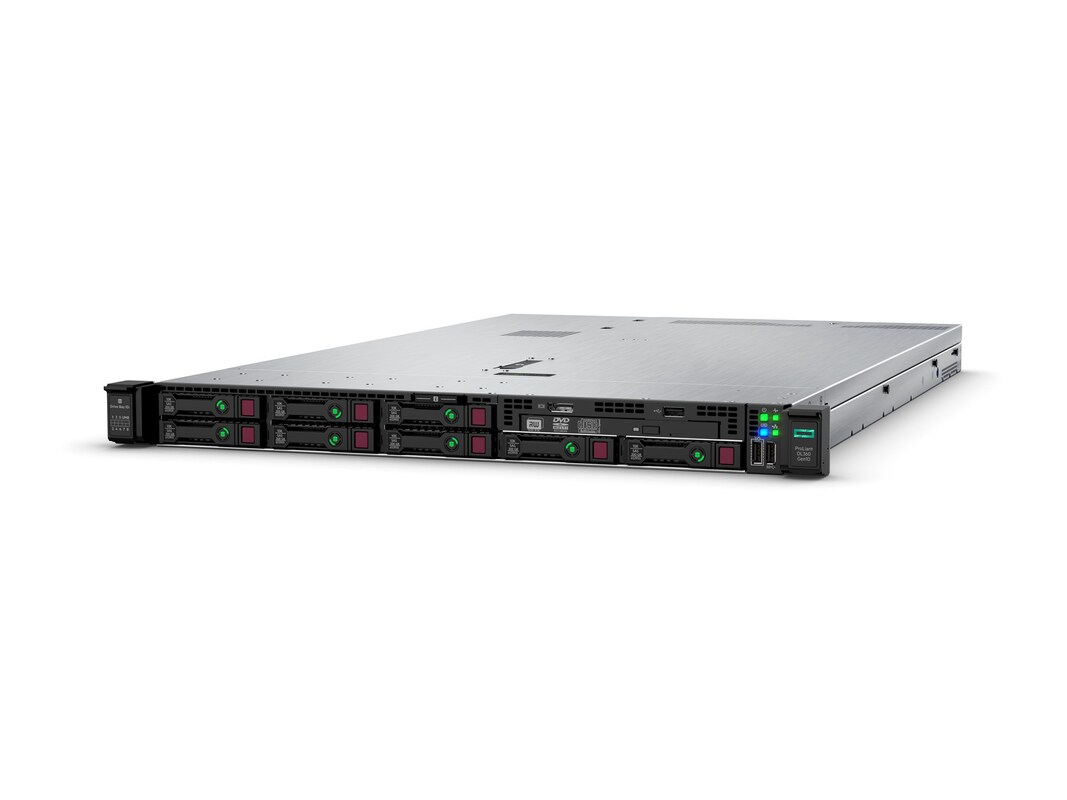

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise.
-
28.80 lbs
-
Server, power supply, CPU heatsink, (5) standard fans, SFF easy install rails, documentation
-
ENERGY STAR Qualified: YesENERGY STAR Version: 3.0
-
Chassis Form Factor: 1U RackmountChassis Form Factor: Rack-mountableColor: BlackColor: SilverForm Factor: DIMM 288-pinPrinter Type: NoneService Included: On-siteSystem Type: ServerWarranty Information: On-siteWarranty Period: 3 yearsWeight Taxonomy: 28.75lbs
-
Cache Memory (installed): 11MBFlash Memory Form Factor: microSDMemory Attributes: 6-channel memory architectureMemory Attributes: Dual RankMemory Attributes: Mixing of different types of memory modules is not supportedMemory Attributes: Online Spare MemoryMemory Attributes: RegisteredMemory Attributes: Slots 13 - 24 are available in two-processor configuration onlyMemory Rating: PC4-23466RAM (installed): 32GBRAM Technology: DDR4 SDRAM
-
32GB (1x32GB) 2933MHz DDR4 advanced ECC DDR4 SDRAM, upgradeable to 1.5TB.
There are twenty-four 288-pin DIMM slots. One slot is occupied by a removable 32GB module; the other slots are open.
Slots 13 - 24 are available in two-processor configurations only.
Memory notes:
Memory speed will truncate down to match processor data bus speed (where applicable).Video memory: graphics card(s) sold separately.
-
HPE Server UEFI software is included.
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
1.7"h x 17.1"w x 27.8"d
-
Expansion slots:
(1) PCIe 3.0 x16, 0.75L/FH(1) PCIe 3.0 x8, low-profile
(1) Flexible LOM, 0.75L, FH (low-profile)
(1) microSD card (internal)
(1) PCIe x16, FHExpansion bays:
(8) 2.5" hot-swap bays
(1) external universal media bayI/O:
(1) HPE iLO Type-A (front)
(1) HPE iLO RJ-45 (back)
(5) USB 3.0 (1 front, 2 back, 2 internal)
(1) VGA (back)
(4) RJ-45 LAN (GbE, back) -
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 800
-
800W power supply, supports 2 maximum.
1+1 power redundancy with 2nd power supply (sold seperately)
100/240V AC, 50/60Hz -
# Processors Installed: 1# Processors Supported: 2Chipset Type: Intel C621Number of Cores: 8-coreProcessor Features: Hyper-Threading TechnologyProcessor Features: Intel Turbo Boost Technology 2Processor Manufacturer: IntelProcessor Model Number: 4208Processor Speed: 2.1GHzProcessor Speed (Boosted): 3.2GHzProcessor Type: Xeon SilverProcessor Upgradability: Upgradable
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: PXE supportNetworking Protocol: Wake on LAN (WoL)Remote Management Protocol: IPMI 2.0Remote Management Protocol: SMASH CLPRemote Management Protocol: SNMP 3
-
This product is subject to our return policy. Please see our complete return policy for details.
-
85 lbs
-
Compliant Standards: ACPI 6.1Compliant Standards: AESCompliant Standards: ASHRAE Class A3Compliant Standards: ASHRAE Class A4Compliant Standards: FIPS 140-2Compliant Standards: IPv6 ReadyCompliant Standards: PCI DSSCompliant Standards: TLS v1.2Compliant Standards: WEEE 2002/95/EC
-
Hard Drive Type: Hot-swapHard Drive Type: No HDDHard Drive Type: NoneStorage Controller Type: RAIDStorage Controller Type: SATA/SAS
-
43211501
-
Display Technology: None.Video RAM (installed): 16MB
