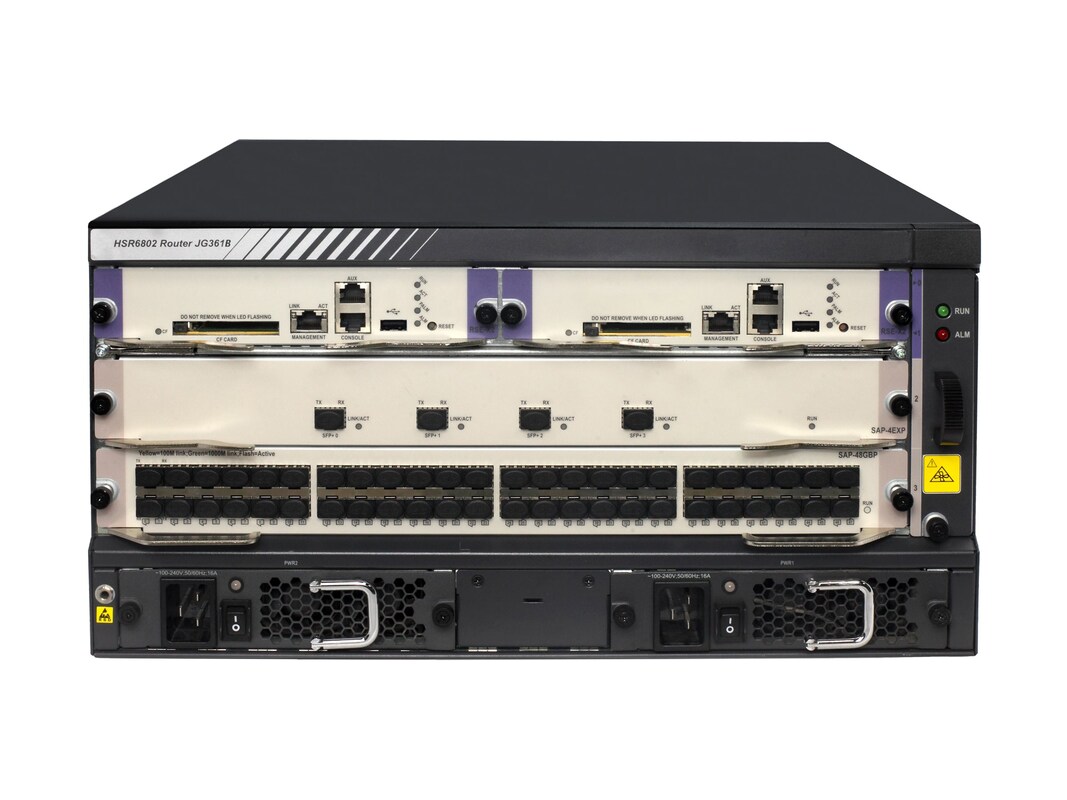

The HPE HSR6800 Router Series is a family of high-performance, multiservice routers designed for data center interconnection, enterprise WAN core, campus WAN edge, and high-speed WAN aggregation services. It runs the Comware operating system and features an advanced multi-core, distributed service processing hardware architecture that scales up to 420 Mpps forwarding and up to 2 Tbps switching capacity.
The router delivers robust routing, multicast, MPLS, IPv6, security, quality of service, carrier-level high-availability features, and high-density 10GbE and 1GbE interface options.
The router delivers robust routing, multicast, MPLS, IPv6, security, quality of service, carrier-level high-availability features, and high-density 10GbE and 1GbE interface options.
-
55.20 lbs
-
Connectivity Technology: Wired
-
Chassis
-
Color Family: BlackForm Factor: Rack-mountableManufacturer Product Line: HPEModel: HSR6802Weight Taxonomy: 50.15lbs
-
Performance:
Throughput: up to 240 Mpps
Routing table size: 4000000 entries (IPv4), 2000000 entries (IPv6)
Forwarding table size: 1000000 entries (IPv4), 1000000 entries (IPv6)
Backplane bandwidth: 1024 Gbps
Mounting and enclosure: EIA-standard 19" rack -
Flash Memory Installed Size: 1GBRAM (installed): 4GBRAM Technology: DDR3 SDRAM
-
Modem Type: None
-
Networking Type: Modular expansion base
-
8.7"h x 17.2"w x 18.9"d
-
I/O:
(2) SAP slots, or (4) HIM slots, or (8) MIM slots, or a combination
(2) MPU slots -
# Power Supplies Supported: 2
-
Maximum power rating: 521W
-
# Processors Installed: 1Processor Speed: 1GHzProcessor Type: PowerPC
-
Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1agNetworking Protocol: IEEE 802.1ahNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1S (MSTP)Networking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1w (RSTP)Networking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3acNetworking Protocol: IEEE 802.3adNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3ahNetworking Protocol: IEEE 802.3iNetworking Protocol: IEEE 802.3i (10BASE-T)Networking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: RMON 3Remote Management Protocol: RMON 9Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: TelnetRemote Management Protocol: TFTPRouting Protocol: BGPRouting Protocol: BGP-4Routing Protocol: Bidirectional Forwarding Detection (BFD)Routing Protocol: GRERouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: IS-ISRouting Protocol: MLDRouting Protocol: MPLSRouting Protocol: MSDPRouting Protocol: Multiprotocol BGPRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: PIM-DMRouting Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: RIPRouting Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routingRouting Protocol: VRRPTransport Protocol: ARPTransport Protocol: DHCPTransport Protocol: IPSecTransport Protocol: L2TPTransport Protocol: NTPTransport Protocol: RSVPTransport Protocol: TCP/IPTransport Protocol: UDP/IP
-
Due to manufacturer restrictions, all sales on this item are final. HPE Aruba has a strict no-return policy on opened products. For product problem troubleshooting, customers should first call 1-800-943-4526 or submit a support case online at cf.passport.hpe.com. HPE Aruba will work directly with the customer for resolution.
-
65.99 lbs
-
Compliant Standards: AS/NZS 60950Compliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: EN 300 386Compliant Standards: EN 301 489-1Compliant Standards: EN 301 489-17Compliant Standards: EN 60825-2Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-6-1Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: ETSICompliant Standards: FCC CFR47 Part 15Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN22Compliant Standards: KN24Compliant Standards: UL 60950-1Compliant Standards: VCCI V-3 Class A ITECompliant Standards: VCCI V-4
-
43222609
-
Warranty Period: 1-year warranty
