In Stock
- Ships in 48 Hours
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

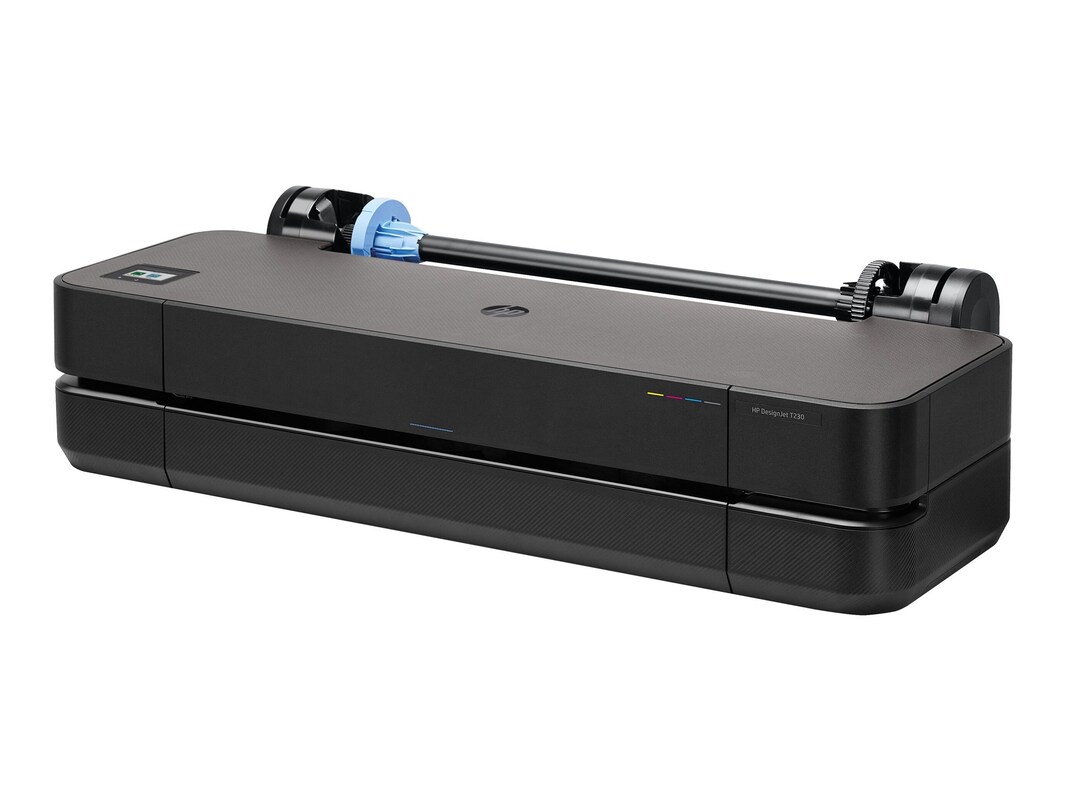

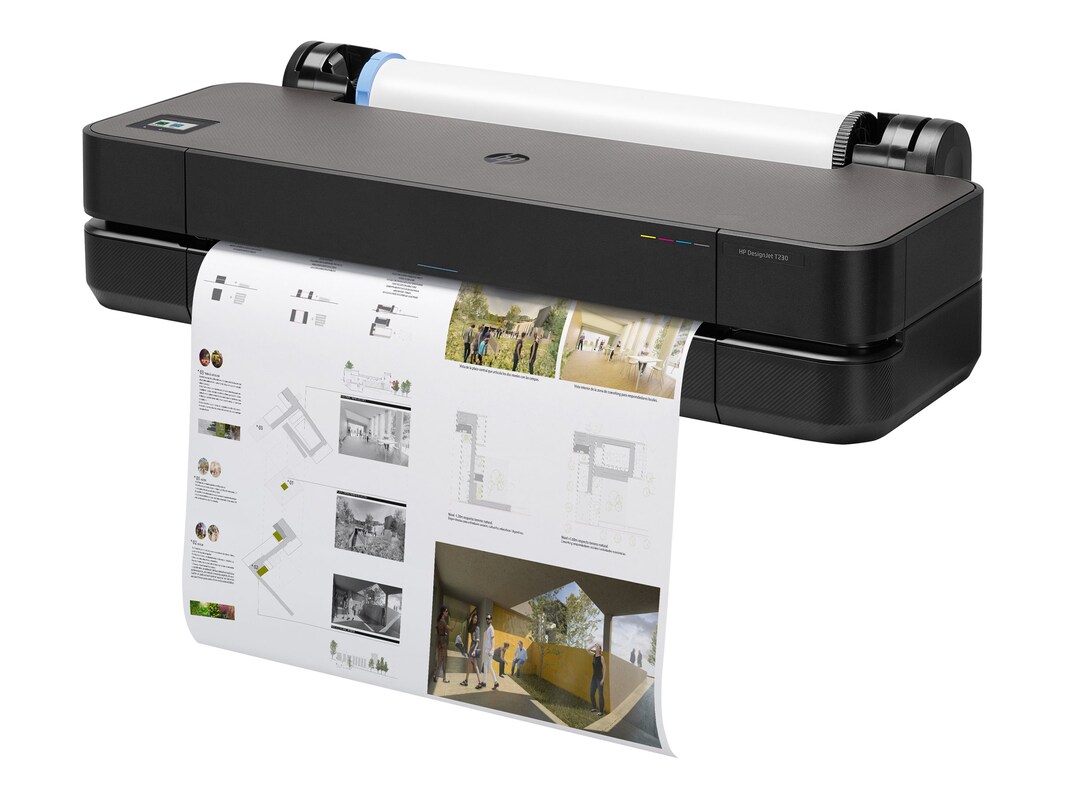

Ideal for AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text, the HP DesignJet T230 24" Large Format Plotter Printer can print multiple files in as little as one click. You can anage your large format printing and printer virtually anywhere and anytime with the HP Smart app and print pges as fast as 45 seconds per page.


-
Print languages: JPEG, URF
Media types:
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene) -
Connectivity Technology: WiredConnectivity Technology: WirelessConnector: RJ-45Connector: USB Type BConnector: WirelessConnector Type: EthernetConnector Type: IEEE 802.11a/b/g/nConnector Type: LANConnector Type: USB 2.0Connector Type: Wi-FiPrinter Output Type: Color
-
Unit, printhead, introductory ink cartridges, spindle, power cord, documentation
-
EPEAT Compliant: YesePEAT Level: EPEAT Gold
-
Language Simulation: JPEGLanguage Simulation: URF
-
Color Family: BlackColor Family: GrayForm Factor: InternalManufacturer Product Line: HP DesignJetModel: T230Print Technology: HP thermal inkjetPrint Technology: Ink-jetPrinter Type: Large-format printerScanner Type: NoneType: PrinterWeight Taxonomy: 47.4lbs
-
Standard Media Size (max): A1 (23.4 in x 33.1 in)Standard Media Size (max): A2 (16.5 in x 23.4 in)Standard Media Size (max): A3 (11.7 in x 16.5 in)Standard Media Size (max): A4 (8.25 in x 11.7 in)Standard Media Size (max): ANSI C (17 in x 22 in)Standard Media Size (max): ANSI D (22 in x 34 in)Standard Media Size (max): Ledger B Size (11 in x 17 in)Standard Media Size (max): Letter A Size (8.5 in x 11 in)Standard Media Size (max): Roll (24 in x 150 ft)Supported Media Type: Bond paperSupported Media Type: FilmSupported Media Type: Glossy paperSupported Media Type: Photo paperSupported Media Type: Plain paperSupported Media Type: Self-adhesive paperSupported Media Type: Semi-gloss paperSupported Media Type: Technical paper
-
RAM (installed): 512MBRAM (max): 512MB
-
Memory: 512 MB
-
Networking Type: Print server
-
B&W Resolution (max): 2400 x 1200 dpiColor H-Resolution (max): 2400dpiColor Print Speed (max): 35sec/pageColor Resolution (max): 2400 x 1200 dpiColor V-Resolution (max): 1200dpi
-
RJ-45 Gigabit Ethernet 1000Base-T prt
USB 2.0 Type B port
Wi-Fi 802.11a/b/g/n connector
Wi-Fi Direct connector -
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby) -
Networking Protocol: 802.1xNetworking Protocol: SNMP 1Networking Protocol: SNMP 2
-
This product is subject to our return policy. Please see our complete return policy for details.
-
61.73 lbs
-
Compliant Standards: EAEU RoHSCompliant Standards: EMCCompliant Standards: EPEAT GoldCompliant Standards: ERPCompliant Standards: EU RoHSCompliant Standards: REACHCompliant Standards: REDCompliant Standards: WEEE
-
43212107
-
Warranty Period: 1 year
