Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
-
In Stock
- Ships in 24-48 Hours
Delivers the highest capacity and greatest value for your data center!
This is a 20-pack.
This is the SATA 6Gb/s Secure Erase (SE) model.

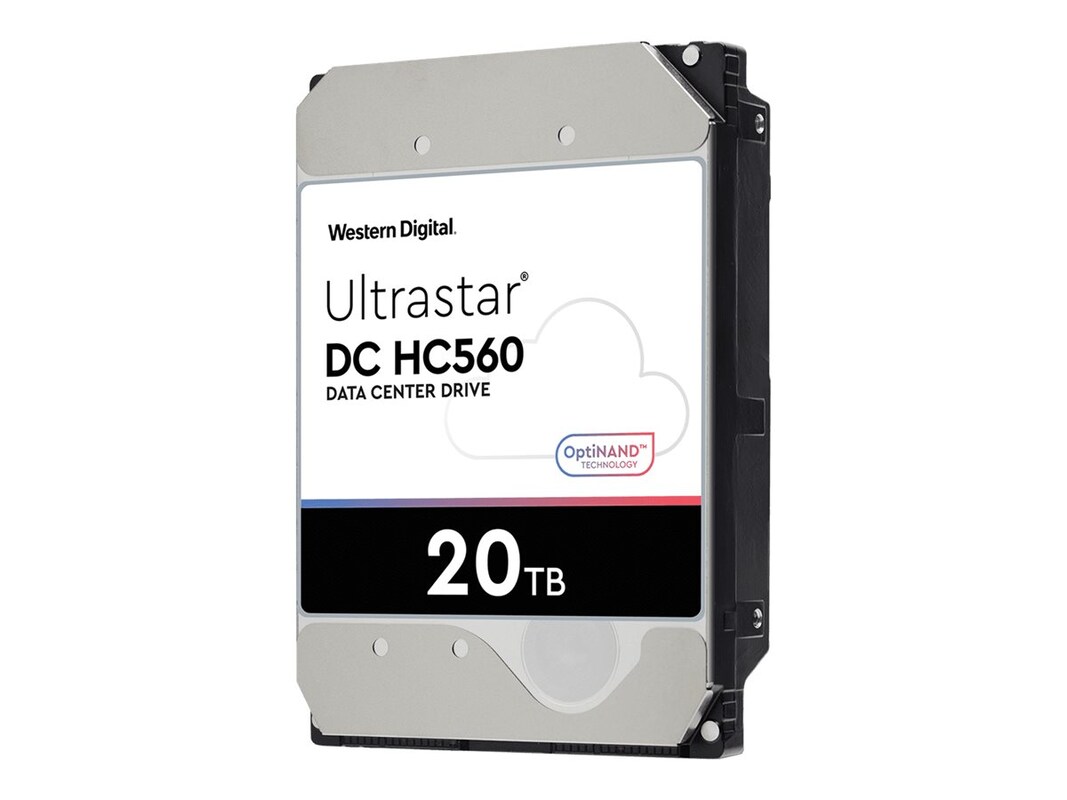

The 20TB Ultrastar DC HC560 3.5" Internal Hard Drive implements OptiNAND technology's capacity-enabling features, delivering an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format. OptiNAND integrates an iNAND Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.
This is the SATA 6Gb/s Secure Erase (SE) model.
The 20TB Ultrastar DC HC560 3.5" Internal Hard Drive implements OptiNAND technology's capacity-enabling features, delivering an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format. OptiNAND integrates an iNAND Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.
-
Connector: Serial ATA 7-pinConnector Type: SATA 6Gbps
-
(20) Drives, documentation
-
Enclosure Type: InternalForm Factor: 3.5"Manufacturer Product Line: WD Ultrastar DC HC560Model: WUH722020BLE6L4Weight Taxonomy: 24.34oz
-
Buffer Size, Cache: 512MBData Transfer Rate: 6GbpsData Transfer Rate: 600MBps
-
1"h x 4"w x 5.8"l
-
7-pin SATA 6Gb/s port
-
Power Requirement: +5 VDC, +12VDC
-
This product is subject to our return policy. Please see our complete return policy for details.
-
31.55 lbs
-
Compliant Standards: Directive 2015/863/EUCompliant Standards: REACH 2006/1907/ECCompliant Standards: ROHS Directive 2011/65/EU
-
Hard Drive Capacity: 20TBHard Drive Type: Internal hard driveSpindle Speed: 7200rpmSpindle Speed: 7200.0rpmStorage Device Type: Hard drive
-
43201803
-
Warranty Period: 5 years
