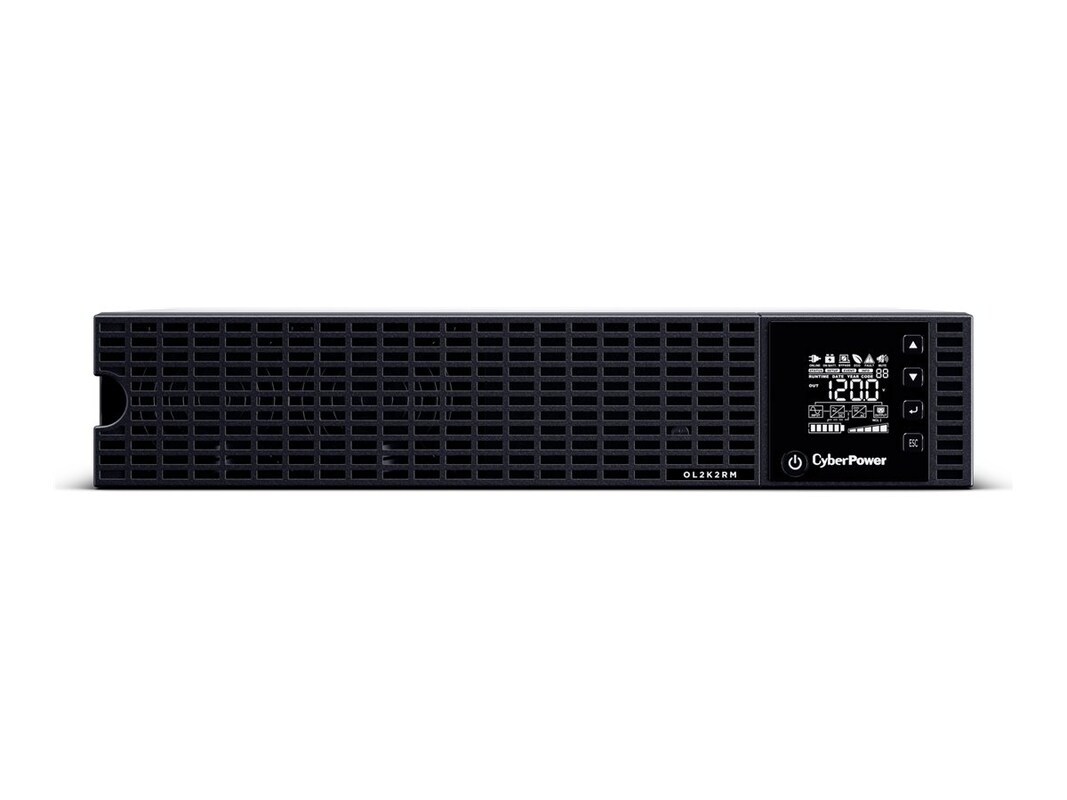

CyberPower 2200VA 1600W 2U Essential Online UPS w 6x NEMA 5-20R, 1x NEMA L5-20R

36.40 lbs

Double-Conversion Topology:

Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a zero millisecond transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output:

Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

PowerPanel Business Edition Software:

Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205 Option:

The optional RMCARD205 allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS).

LCD Control Panel:

Displays and allows configuration of IP address settings when an RMCARD205 is installed.

Extended Battery Module (EBM):

Extends runtime by adding up to 10 EBMs.

Fast Charge Technology:

Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within 4 hours regardless of the number of EBMs.

Smart Battery Management (SBM):

Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

GreenPower UPS ECO Mode:

Improves UPS efficiency >96%; reducing electrical and cooling costs.

Hot-Swappable Batteries:

Keep equipment running by eliminating downtime during UPS battery replacement.

Upgradeable UPS firmware:

The UPS firmware that manages the unit’s features and functions is field upgradeable. UPS firmware upgrades require the optional RMCARD205 to be installed in the UPS and are done via the web management interface.

Emergency Power Off (EPO):

Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible:

Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

USB & Serial Connectivity:

Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.

EMI/RFI Filters:

Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Audible Alarms:

Identify when the model is running on battery power, overloaded, has a low battery, or UPS fault.

Rack Mounted:

Allows for horizontal rack installation.

UPS, Serial Interface Cable (RS-232), USB Communication Cable, rack mounting kit, documentation

3.4"h x 17.1"w x 14.8"d

(6) NEMA 5-20R (F)

(1) NEMA L5-20R (F)

(1) NEMA 5-20P (M)

(1) USB Type B (F)

(1) RS-232 (F)

(1) EPO (F)

(1) Relay Output

Input Voltage:

100 - 125 VAC

Input Voltage Range:

60 VAC - 69 VAC for 0–60% Load

70 VAC - 79 VAC for 0–70% Load

80 VAC - 89 VAC for 0–80% Load

90 – 95 VAC for 0–90% load

96 VAC - 150 VAC for 0–100% Load

This product is subject to our return policy. Please see our complete return policy for details.

44.75 lbs

39121011
