Comnet ELECTRICAL SUBSTATION-RATED

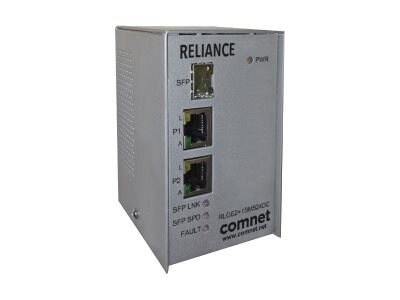

The ComNet RLGE2+1SMSPOEHO is a substation-rated and industrially hardened 3-port self-managed Ethernet switch with uplink management capability, that supports Universal PoE (Power over Ethernet) powered devices requiring up to 60 watts of operating power. Designed to the requirements of IEC 61850-3, IEEE 1613 Class 2, EN50155, and NEMA TS-1/TS-2, it is intended for deployment in environments where high levels of electromagnetic noise and interference (EMI) and severe voltage transients and surges are routinely encountered, such as electrical utility substations and switchyards, heavy manufacturing facilities, trackside and roadside electronic equipment, and other difficult out-of-plant applications. User-selectable link fault pass-through provides remote indication of a network fault, and two summary fault alarms provide a local or remote indication via dry contact closures in the event of loss of optical link or operating power. The 10/100/1000BASE-TX ports support both auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation; manual MDI/MDI-X switching is not required. The RLGE2+1SMSPOEHO comes pre-programmed, preventing network video flooding with DIP-switch selection of the SFP port as uplink or as an unmanaged switch. The internal/self-contained power supply features redundant 48 VDC inputs, for the highest possible reliability. The simple to install, plug-and-play RLGE2+1SMSPOEHO is DIN-rail or panel-mountable, and is ideal for mission-critical applications where very high levels of reliability and network availability are of the utmost importance.
