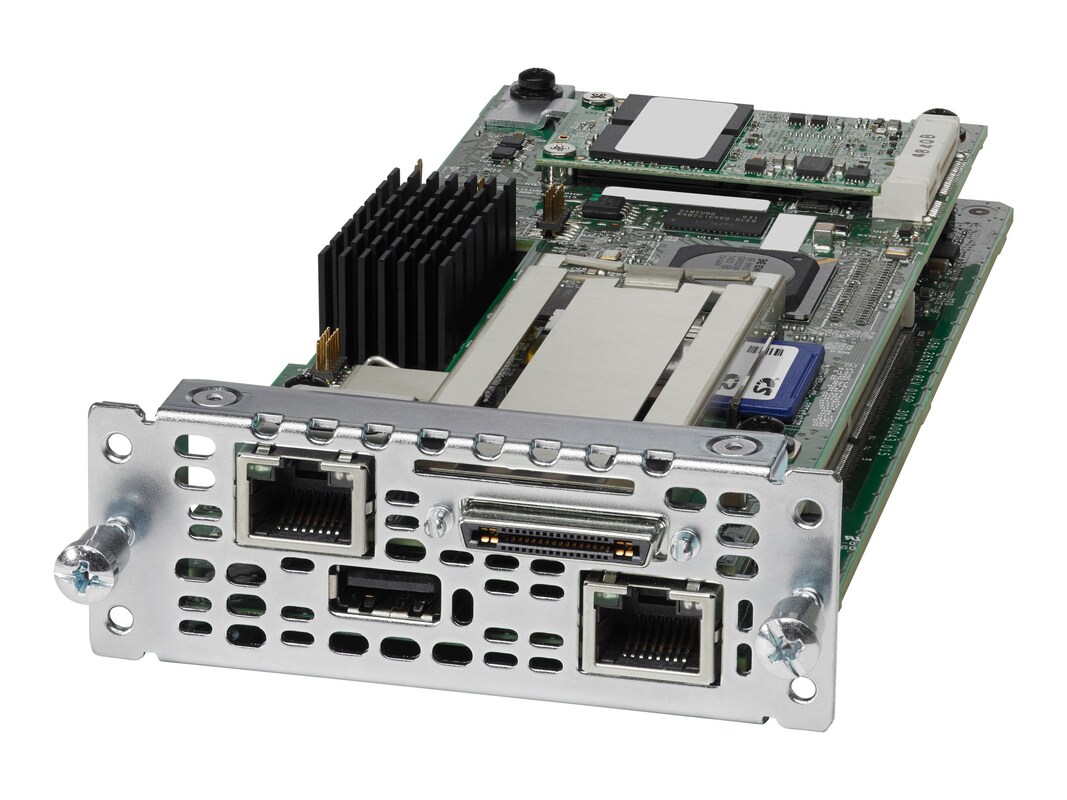

The Cisco UCS E-Series NCEs are computing modules that are both price and power optimized. The zero-footprint form factor of the NCEs make them excellent for hosting Cisco network applications and other lightweight applications in your branch offices.
-
Audio Input Type: None
-
Blade server, SD memory card, documentation
-
Chassis Form Factor: BladeColor Family: GrayForm Factor: DIMM 240-pinManufacturer Product Line: Cisco UCS Network Compute EngineModel: EN140N M2Printer Type: NoneSystem Type: ServerWeight Taxonomy: 10.23oz
-
Cache Memory (installed): 2MBFlash Memory Form Factor: SD Memory CardMemory Attributes: Dual RankMemory Attributes: UnbufferedMemory Attributes: Very Low ProfileMemory Rating: PC3-10600RAM (installed): 8GBRAM (max): 16GBRAM Technology: DDR3 SDRAM
-
8GB (2x4GB) 1333MHz ECC DDR3 SDRAM, upgradeable to 16GB.
There are two 240-pin DIMM slots, both occupied by removable 4GB modules. -
Modem Type: None
-
There is no operating system pre-installed.
-
OS Provided: No Operating System Installed
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
1.2"h x 6.8"w x 1.2"d
-
Expansion slots:
(1) SD card
Expansion bays:
(2) 2.5" HS mSATA bays
I/O:
(1) KVM
(1) USB 2.0
(1) RJ-45 NIC management
(3) RJ-45 LAN (2 internal)
Storage controller:
LSISAS 2004 RAID controller, SATA 6Gbps/SAS 6Gbps interface, supports RAID levels 0/1. -
# Processors Installed: 1# Processors Supported: 1Data Bus Speed: 1333MHzNumber of Cores: Quad-CoreProcessor Manufacturer: IntelProcessor Model Number: C2518Processor Speed: 1.7GHzProcessor Type: Atom
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: IPMI 2.0
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
0 lbs
-
Compliant Standards: AS/NZS 60950-1Compliant Standards: AS/NZS CISPR22:2004 Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CNS 13438(95) Class ACompliant Standards: EN 300386Compliant Standards: EN 60950-1 Second EditionCompliant Standards: EN 61000-6-1Compliant Standards: EN50082-1Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: EN61000-3-2Compliant Standards: EN61000-3-3Compliant Standards: FCC CFR47 Part 15Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI V-3/2007.04 Class A
-
Hard Drive Capacity: 0GBHard Drive Type: Hot-swapHard Drive Type: No HDDHard Drive Type: NoneStorage Controller RAID Level: RAID 0Storage Controller RAID Level: RAID 1Storage Controller Type: RAIDStorage Controller Type: SAS 6.0 GbpsStorage Controller Type: SATA 6.0 Gbps
-
43211512
-
Display Technology: None.
-
Warranty Period: 90 days
