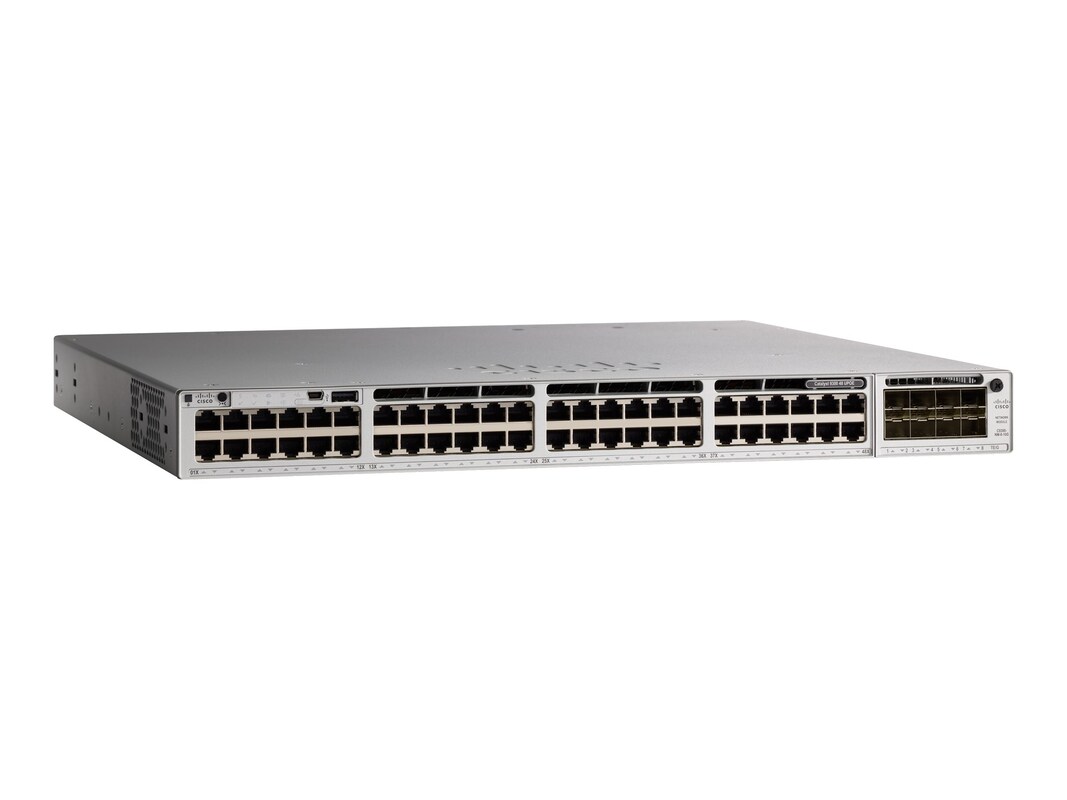

The Catalyst 9300 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/Wi-Fi 6 access points, the Catalyst 9300 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300 delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300 provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
-
# Ports: 48
-
Color: GrayForm Factor: Rack-mountableManufacturer Product Line: Cisco Meraki CatalystModel: 9300-48UWeight Taxonomy: 17.02lbs
-
Networking Type: Switch
-
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 1100
-
Networking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3btRemote Management Protocol: DHCPRemote Management Protocol: IPv4Remote Management Protocol: IPv6Remote Management Protocol: SNMPRemote Management Protocol: SYSLOGRouting Protocol: IGMPRouting Protocol: MSTPRouting Protocol: OSPFv2Routing Protocol: RSTPRouting Protocol: Static IP routingRouting Protocol: STPRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
18.87 lbs
-
Compliant Standards: AN/NZS 60950.1Compliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CNS 13438Compliant Standards: EN 300 386 V1.6.1Compliant Standards: EN 55022 Class ACompliant Standards: EN 55032Compliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55024Compliant Standards: FCC CFR 47 Part 15 Class ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN32Compliant Standards: KN35Compliant Standards: RoHSCompliant Standards: TCVN 7189 Class ACompliant Standards: TCVN 7317Compliant Standards: UL 60950-1Compliant Standards: V-2/2015.04Compliant Standards: V-3/2015.04Compliant Standards: VCCI-CISPR 32 Class A
-
43222612
-
Warranty Period: Limited lifetime warranty
