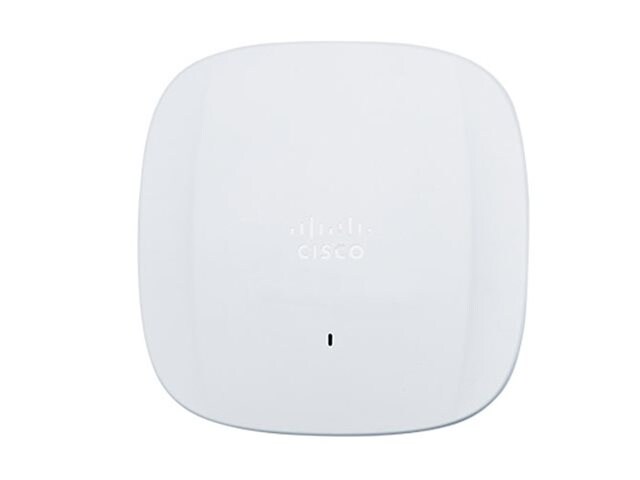

Designed for next-generation smart spaces, the Cisco Meraki Catalyst CW9166D1-MR merges enterprise-grade Wi-Fi 6E performance with integrated environmental sensors to support air quality, temperature, humidity, and barometric monitoring. This tri-band access point features 4×4 MU-MIMO radios for blazing throughput up to 7.8?Gbps and includes IoT-ready radios for BLE, Zigbee, and Thread. Whether managed through the Meraki Dashboard or Catalyst controllers, the CW9166D1-MR is an ideal fit for healthcare, education, and smart building deployments that require both connectivity and ambient monitoring.
-
Connectivity Technology: Wireless
-
Antenna Type: InternalColor Family: WhiteForm Factor: ExternalManufacturer Product Line: Cisco CatalystModel: 9166D1Weight Taxonomy: 3.51lbs
-
RAM (installed): 2GB
-
Networking Type: Wireless access point
-
Data Transfer Rate: 7.78Gbps
-
Networking Protocol: IEEE 802.11aNetworking Protocol: IEEE 802.11acNetworking Protocol: IEEE 802.11axNetworking Protocol: IEEE 802.11bNetworking Protocol: IEEE 802.11dNetworking Protocol: IEEE 802.11gNetworking Protocol: IEEE 802.11hNetworking Protocol: IEEE 802.11iNetworking Protocol: IEEE 802.11nNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3btNetworking Protocol: Wi-Fi CERTIFIED 6E
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
4 lbs
-
Compliant Standards: 47 CFR Part 2.1091Compliant Standards: AS/NZS 2772.2Compliant Standards: AS/NZS 4268:2017Compliant Standards: AS/NZS 60950-1Compliant Standards: AS/NZS 62368-1 Third EditionCompliant Standards: AS/NZS CISPR32:2015+AMD1:2020Compliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CAN/CSA-C22.2 No. 62368-1 Third EditionCompliant Standards: CISPR 32:2015+AMD1:2019Compliant Standards: CNS13438:2006Compliant Standards: Draft EN 303 687 V0.0.14Compliant Standards: EN 300 328 V2.2.2Compliant Standards: EN 301 489-1 V2.2.3 (2019-11)Compliant Standards: EN 301 489-17 V3.2.4 (2020-09)Compliant Standards: EN 301 893 V2.1.1Compliant Standards: EN 50385:2017Compliant Standards: EN 55032:2015/A11:2020Compliant Standards: EN 60950-1Compliant Standards: EN 61000-3-3:2013+A1:2019Compliant Standards: EN 61000-6-1:2019Compliant Standards: EN 62311:2020Compliant Standards: EN 62368-1 Third EditionCompliant Standards: EN55035:2017+A11:2020Compliant Standards: FCC CFR47 Part 15 BCompliant Standards: FCC CFR47 Part 15 CCompliant Standards: FCC Part 15.247Compliant Standards: FCC Part 15.407Compliant Standards: ICES-003 issue 7 Class BCompliant Standards: IEC 60950-1Compliant Standards: IEC 61000-3-2:2019Compliant Standards: IEC 62368-1 Third EditionCompliant Standards: Japan Std. 66Compliant Standards: Japan Std. 71Compliant Standards: KS C 9832Compliant Standards: KS C 9835:2019Compliant Standards: KS X 3124:2020Compliant Standards: KS X 3126:2020Compliant Standards: LP002Compliant Standards: QCVN 112:2017Compliant Standards: RSP-100Compliant Standards: RSS-102Compliant Standards: RSS-247Compliant Standards: RSS-GenCompliant Standards: UL 2043Compliant Standards: UL 60950-1Compliant Standards: UL 62368-1 Third EditionCompliant Standards: UL Class IIICompliant Standards: VCCI-CISPR 32:2016
-
OS Required: Cisco IOS XE 17.12.1 or later
-
43222612
-
Warranty Period: Limited lifetime warranty
