In Stock
- Ships in 1-2 Business Days

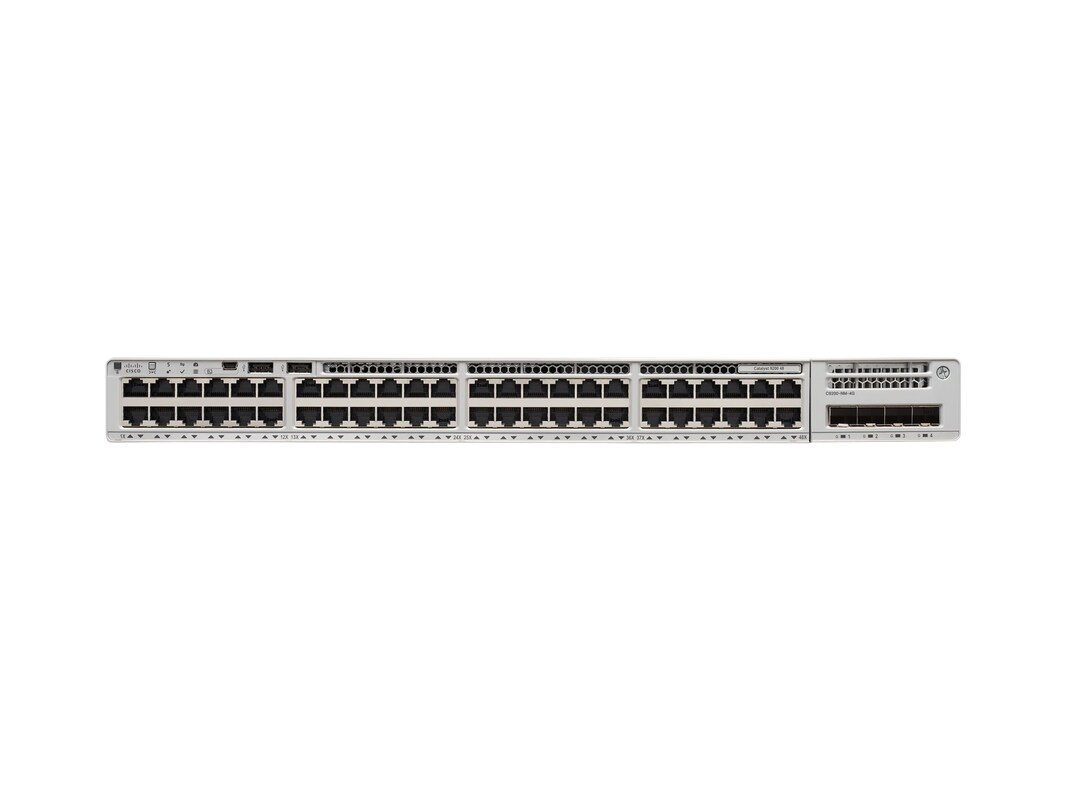

The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time.
-
11.02 lbs
-
# Ports: 48
-
Switch, documentation
-
Color Family: GrayForm Factor: Rack-mountableManufacturer Product Line: Cisco CatalystModel: 9200Weight Taxonomy: 11.02lbs
-
Switching capacity: 176 Gbps
Switch capacity with Stacking: 336 Gbps
Forwarding rate: 130.95 Mpps
Virtual Networks: 4
Stacking bandwidth: 160 Gbps
Total number of MAC addresses: 32,000
Total number of IPv4 routes (ARP plus learned routes): 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries: 4,000
IPv6 routing entries: 2,000
Multicast routing scale: 1,000
QoS scale entries: 1,000
ACL scale entries: 1,600
Packet buffer per SKU: 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries: 16,000 flows on 24- and 48-port Gigabit Ethernet models
VLAN IDs: 4096
Total Switched Virtual Interfaces (SVIs): 1000
Jumbo frames: 9198 bytes
Wireless bandwidth per switch: Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
IP SGT binding scale: 8K
Number of IPv4 bindings: 8K
Number of SGT/DGT policies: 2K
Number of SXP Sessions: 200 -
RAM (installed): 4GB
-
DRAM: 4 GB
Flash: 4 GB -
Networking Type: Switch
-
1.7"h x 17.5"w x 13.8"d
-
(48) GbE RJ-45
-
# Power Supplies Supported: 2Power Provided: 125
-
Default primary power supply: PWR-C5-125WAC
-
Networking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: OSPFNetworking Protocol: RIPRemote Management Protocol: CLIRemote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: EIGRPRouting Protocol: EIGRP for IPv6Routing Protocol: IS-ISRouting Protocol: MSTPRouting Protocol: OSPFRouting Protocol: OSPFv3Routing Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
18 lbs
-
Compliant Standards: AS/NZS 3548 Class ACompliant Standards: AS/NZS 60950-1Compliant Standards: BSMI Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CCCCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CISPR 35Compliant Standards: CNS 13438Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-6-1Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 B Class ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: KN32Compliant Standards: KN35Compliant Standards: RoHS 5/6Compliant Standards: TCVN 7189 Class ACompliant Standards: TCVN 7317Compliant Standards: UL 60950-1Compliant Standards: V-3 Class ACompliant Standards: VCCI Class A
-
43222612
-
Warranty Period: Limited lifetime
