In Stock
- Ships in 24-48 Hours

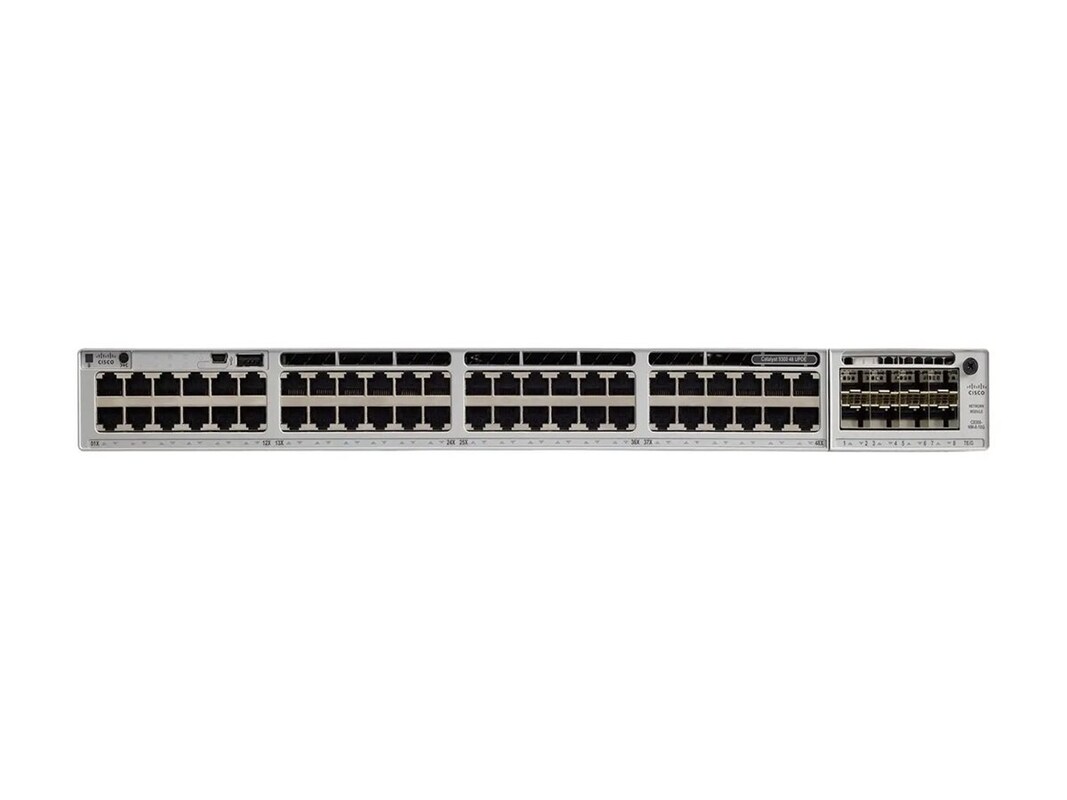

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.
-
16.70 lbs
-
# Ports: 48
-
Switch, power supply, documentation
-
Chassis Form Factor: 1U RackmountColor Family: GrayForm Factor: Rack-mountableManufacturer Product Line: Cisco CatalystModel: 9300Weight Taxonomy: 16.73lbs
-
Switching capacity: 640Gbps
Stacking bandwidth: 480Gbps
Forwarding rate: 190.48Mpps
IPv4 routing table entries: 32000
IPv6 routing table entries: 16000
Flexible NetFlow entries: 64000
VLAN IDs: 4000
Switched virtual interfaces (SVIs): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes -
RAM (installed): 16GBRAM (installed): 8GBRAM Technology: FlashRAM Technology: RAM
-
8GB RAM
16GB Flash memory -
Networking Type: Switch
-
Cisco IOS Universal is pre-installed.
-
OS Provided: Cisco IOS Universal
-
1.7'h x 17.5"w x 17.5"d
-
Expansion slots:
(1) Expansion slot
I/O:
(48) 1/2.5/5GBase-T RJ-45 UPoE
(1) USB 2.0
(2) Power in -
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 1100Power Provided: 1100W
-
1100W internal hot-plug power supply; supports 2 maximum.
Voltage required: 120 to 230V AC, 50 to 60Hz -
Networking Protocol: 2.5 Gigabit EthernetNetworking Protocol: 5 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IGMPNetworking Protocol: OSPFNetworking Protocol: RIPNetworking Protocol: UPoERemote Management Protocol: CLIRemote Management Protocol: NETCONFRemote Management Protocol: RESTCONFRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: IGMPRouting Protocol: IS-ISRouting Protocol: OSPFRouting Protocol: OSPFv3Routing Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: VRRP
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
1 lbs
-
Compliant Standards: AS/NZS 3548 Class ACompliant Standards: BSMI Class ACompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CCCCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-4-2Compliant Standards: EN 61000-4-3Compliant Standards: EN 61000-4-4Compliant Standards: EN 61000-4-5Compliant Standards: EN 61000-4-6Compliant Standards: EN 61000-6-1Compliant Standards: EN50082-1Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: RoHS 5/6Compliant Standards: TVCN 7317Compliant Standards: UL 60950-1Compliant Standards: VCCI Class ACompliant Standards: VCCI V-3/2009 Class A
-
OS Required: Cisco IOS Universal
-
43222612
-
Warranty Period: Limited lifetime
-
Limited warranty includes lifetime replacement and next business day response time.
