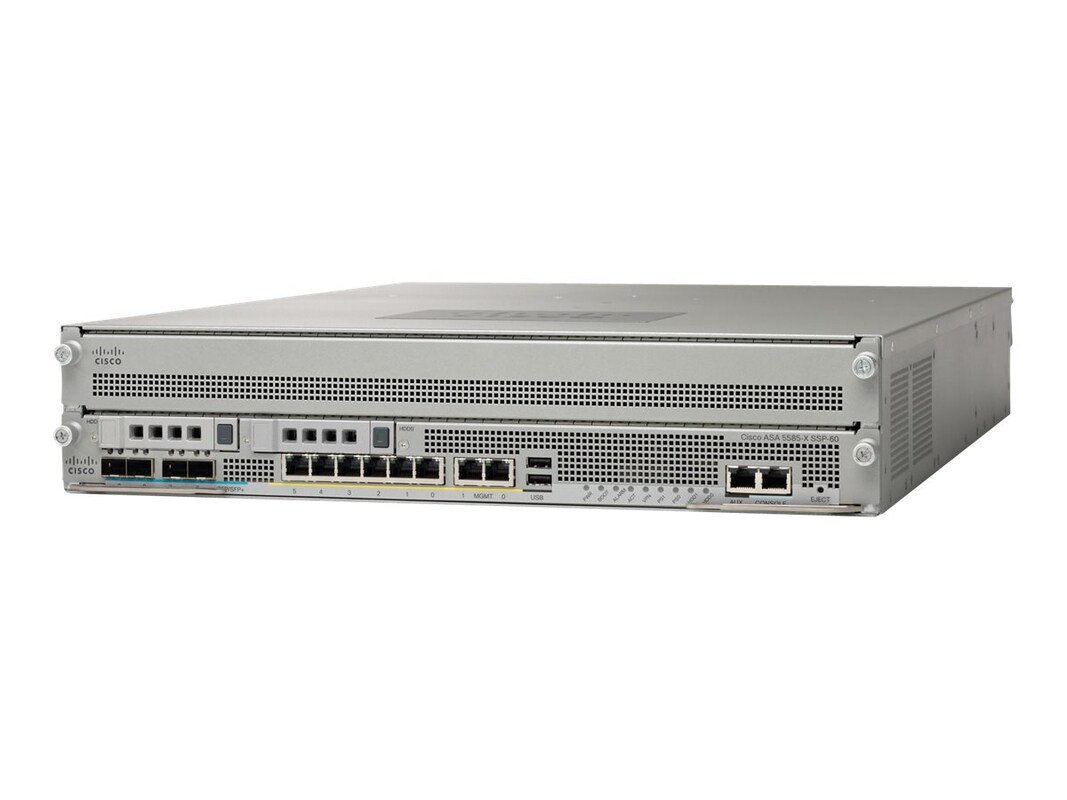

The ASA 5585-X adaptive security appliance is a 2 RU, two-slot chassis accommodating up to two AC power supply modules, which also contain the necessary cooling components for operation, although you can install a fan module in the second bay. The Security Services Processor (SSP) resides in slot 0 (the bottom slot) and the optional Intrusion Prevention System Security Services Processor (IPS SSP) resides in slot 1 (the top slot). All port numbers are numbered from right to left beginning with 0.
In addition to world-class performance, the ASA 5585-X deploys encrypted traffic inspection, port density, and feature performance matching, that is, performance parity between firewall and IPS functions. The ASA 5585-X series adaptive security appliances ship with a core SSP; You must have the core SSP to run the IPS SSP.
The ASA 5585-X SSP-60 provides firewall, VPN support, and 10 interfaces (4 SFP/SFP+ and 6 copper Gigabit Ethernet). You can also order it with the IPS SSP-60, which adds intrusion prevention system protection, and an additional 10 interfaces. The SSP-60 ships with two power supply modules; however, the SSP-60 can function with only one power supply module. Although the SSP-60 with IPS SSP-60 can also operate with only one power supply module, they recommend that you install two power supply modules for extended reliability since the power supply modules operate in load-sharing mode. If one fails in this configuration, the other power supply module can still handle the full load until the failed power supply module is replaced. The SSP-60 has two CPUs, 12 DIMM modules, four embedded crypto accelerators, and two dual-port 10-GB uplinks for the SFP/SFP+ interfaces.
In addition to world-class performance, the ASA 5585-X deploys encrypted traffic inspection, port density, and feature performance matching, that is, performance parity between firewall and IPS functions. The ASA 5585-X series adaptive security appliances ship with a core SSP; You must have the core SSP to run the IPS SSP.
The ASA 5585-X SSP-60 provides firewall, VPN support, and 10 interfaces (4 SFP/SFP+ and 6 copper Gigabit Ethernet). You can also order it with the IPS SSP-60, which adds intrusion prevention system protection, and an additional 10 interfaces. The SSP-60 ships with two power supply modules; however, the SSP-60 can function with only one power supply module. Although the SSP-60 with IPS SSP-60 can also operate with only one power supply module, they recommend that you install two power supply modules for extended reliability since the power supply modules operate in load-sharing mode. If one fails in this configuration, the other power supply module can still handle the full load until the failed power supply module is replaced. The SSP-60 has two CPUs, 12 DIMM modules, four embedded crypto accelerators, and two dual-port 10-GB uplinks for the SFP/SFP+ interfaces.
-
Connectivity Technology: Wired
-
Form Factor: Rack-mountable
-
RAM (installed): 24GB
-
Modem Type: None
-
Networking Type: Security appliance
-
# Power Supplies Installed: 2# Power Supplies Supported: 2
-
# Processors Installed: 1
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit Ethernet
-
Due to manufacturer restrictions, all sales on this item are final.
-
0 lbs
-
Compliant Standards: AS/NZS 60950-1Compliant Standards: BSMI CNS 13438 Class ACompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CSA C22.2 No. 60950-1Compliant Standards: EN 300 386Compliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN50082-1Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: GB 4943Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1Compliant Standards: UL 60950-1Compliant Standards: VCCI Class A ITE
-
46171500
