B+B SmartWorx Serial Converter, RS-232 422 485 TB to MM Fiber ST (Inverted), Ind. DIN, C1D2

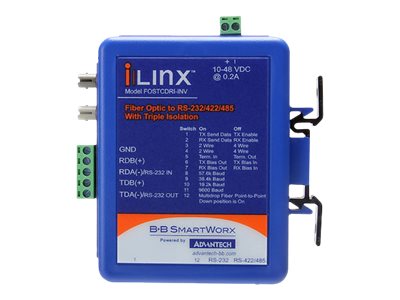

Model FOSTCDRI-INV is a premium industrial serial to multi-mode fiber optic converter. Its rugged design is UL approved and certified for Class 1/Division 2 industrial environments. It extends data communications up to 4 km (2.5 miles). It provides three-way optical isolation on the input, output and power lines. In addition to direct point-to-point connectivity, it is capable of operating in a multi-drop mode. This allows one serial device to communicate with up to 31 other devices around a fiber ring. Since it supports mixed standards, you can replace other converters and isolators and add the EMI / RFI protection inherent to fiber optic communications. In RS-232 mode, the converter supports transmit and receive data. Handshaking signals are not passed through. An automatic send data control circuit controls the RS-422/485 driver chip, eliminating the requirement for external software. Easy to install and configure, it has a 12-position DIP switch on the bottom to configure RS-422/485 parameters. Serial data and power cables connect to removable terminal blocks. ST connectors are used for the fiber.
