- Ethernet 1000Base-EXEthernet 1000Base-TEthernet 100Base-TXEthernet 10Base-T Transceiver
- 1Gbps Transfer Rate
- Ethernet, Fast Ethernet, Gigabit Ethernet, PoE+ Protocol(s)
- FCC Class A certified, CE Class A, IEEE 802.3at Compliant

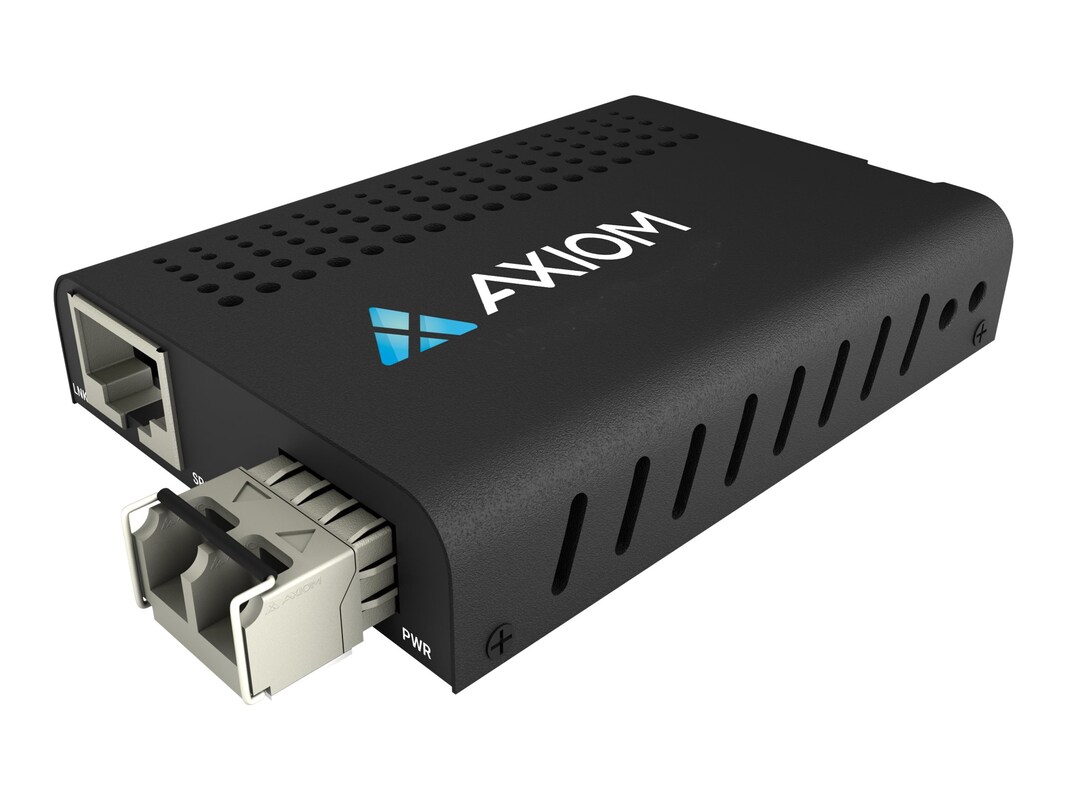

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
-
10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
IEEE802.3at PoE+ PSE compatible
Built-in AC/DC power supply
Over-current protection
DIP switch to set different configurations
LFP (Link Fault Pass-through) support -
Cabling Type: Ethernet 1000Base-EXCabling Type: Ethernet 1000Base-TCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10Base-TConnectivity Technology: Wired
-
converter, documentation
-
Color: BlackForm Factor: ExternalWarranty Period: 1-year warranty
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 1Gbps
-
(1) LCx2
(1) RJ-45 -
Supply: 100-240VAC
Consumption: Full-load<60W
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: PoE+
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.23 lbs
-
Compliant Standards: CE Class ACompliant Standards: FCC Class A certifiedCompliant Standards: IEEE 802.3at
-
