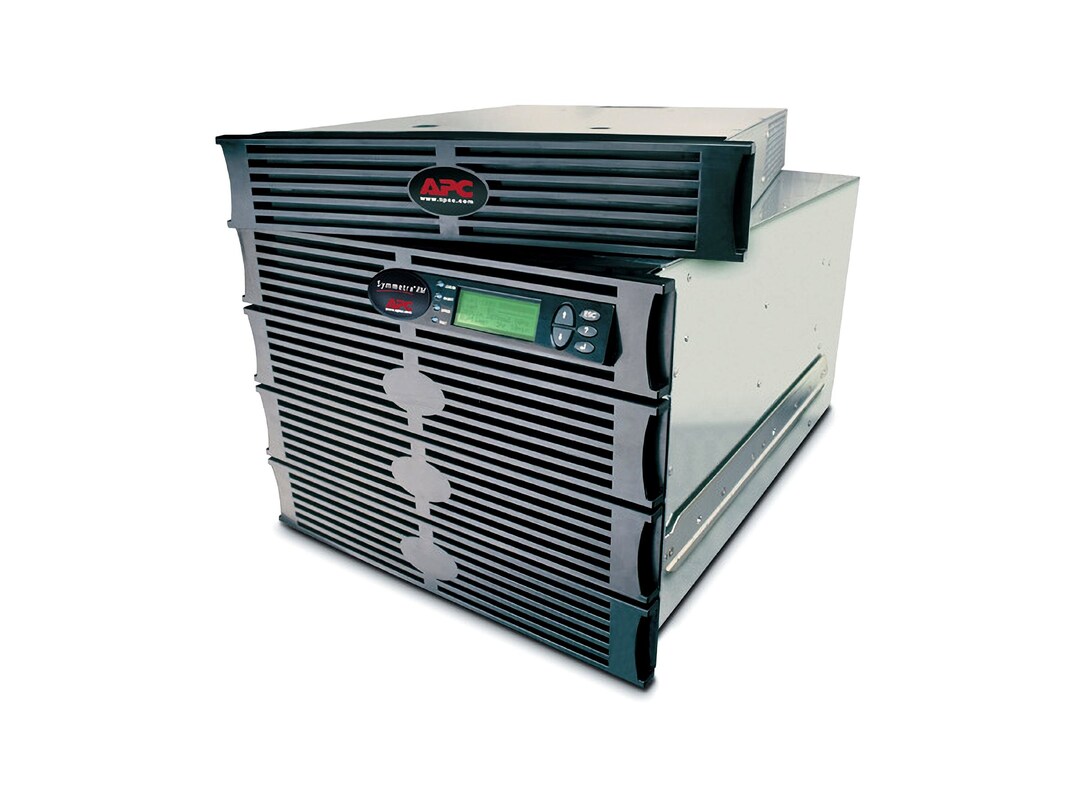

Designed for networking, telecom, and other high-availability applications, APC's Symmetra RM offers scalable, redundant, rack-mountable power protection for your mission-critical servers.
The Symmetra RM delivers APC's proven, patented Symmetra Power Array technology in a rack-mountable form. This scalable, redundant unit provides from 4 to 6kVA (N+1) of power protection, while inhabiting as little as 8 units of rack space.
Symmetra RM is an ideal solution for: branch offices; small- to mid-sized data centers; inter-networking and telecom racks, and all other high-availability applications within its range of power. In addition to hot-swappability and redundancy features, you'll also appreciate the Symmetra RM's self-diagnosing, scalable components and integrated Web/SNMP management functionality. This rack-mountable unit can also be used in a floor-standing capacity for standalone applications. APC's Powerchute Software Bundle is included for ease of installation and management.
Other key features include: Emergency Power Off; Extendable Run Time; Hot-Swappable Batteries and Electronics; Input Power Factor Correction; Intelligent Battery Management; LCD AlphaNumeric Display; Overload Indicator; Replace Batt. Indicator; APC's SmartSlot; Built-in Automatic and Manual Bypasses; Automatic Voltage Regulation, and a host of Power Expansion Options.
Management Software (included): PowerChute Symmetra Bundle
Control Panel: Multi-function LCD status and control console
Audible alarm for On Battery/Low Battery w/configurable delays
Emergency Power Off functionality
Optional management devices available
Battery Type: Maintenance-free, leakproof (sealed) Lead-Acid battery with suspended electrolytes
Typical recharge time: 4 hrs.
Symmetra RM is an ideal solution for: branch offices; small- to mid-sized data centers; inter-networking and telecom racks, and all other high-availability applications within its range of power. In addition to hot-swappability and redundancy features, you'll also appreciate the Symmetra RM's self-diagnosing, scalable components and integrated Web/SNMP management functionality. This rack-mountable unit can also be used in a floor-standing capacity for standalone applications. APC's Powerchute Software Bundle is included for ease of installation and management.
Other key features include: Emergency Power Off; Extendable Run Time; Hot-Swappable Batteries and Electronics; Input Power Factor Correction; Intelligent Battery Management; LCD AlphaNumeric Display; Overload Indicator; Replace Batt. Indicator; APC's SmartSlot; Built-in Automatic and Manual Bypasses; Automatic Voltage Regulation, and a host of Power Expansion Options.
Management Software (included): PowerChute Symmetra Bundle
Control Panel: Multi-function LCD status and control console
Audible alarm for On Battery/Low Battery w/configurable delays
Emergency Power Off functionality
Optional management devices available
Battery Type: Maintenance-free, leakproof (sealed) Lead-Acid battery with suspended electrolytes
Typical recharge time: 4 hrs.
-
324.00 lbs
-
# Ports: 14Communication Interface: EthernetCommunication Interface: Serial (RS-232)Connector: HardwireConnector: Hardwire 3-wire (2PH + G)Connector: Power Hard Wire 3-wire (2PH + G)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L6-20 (F)Connector: Power NEMA L6-30 (M)
-
Unit, rack-mount hardware, software, documentation
-
Attributes: Double conversion onlineColor: BlackColor Family: BlackEnclosure Type: Plug-in moduleForm Factor: 10U RackmountForm Factor: Rack-mountableManufacturer Product Line: APC Symmetra RMModel: 4kVA Scalable to 6kVA N+1Weight Taxonomy: 324.74lbs
-
17.5"h x 19"w x 28.75"d
-
Output Connections:
(12) NEMA 5-15R
(2) NEMA L6-20R
Input Connections:
Hard Wire 3-wire (2PH + G)
NEMA L6-30P (30A Twist-Lock), 6ft. cord length
Communications and Management:
(1) DB9 serial port (RS-232)
(1) RJ-45 port for 10BaseT Ethernet / Web / SNMP
(1) SmartSlot interface (available) -
Battery Run Time (max): 12.2minBattery Run Time (max): 12.5minPower Capacity (VA): 4000VAPower Provided: 2800Power Provided: 2800WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 120/208/240V
-
Output:
Rated Power: 4000 VA
Output Capacity: 2800 Watts
Max. Configurable Power: 6000 VA
Max. Configurable Power: 4200 Watts
Nominal Output: 120/208 V
Efficiency at Full Load: 85%
Bypass: Internal (Automatic and Manual)
Output Voltage Distortion: <5
Output Frequency (sync to mains): 57/63Hz for 60Hz nominal
Output Frequency (not synced): 60Hz +/- 0.1% for 60Hz nominal
Crest Factor: up to 5 : 1
Input:
Nominal Input: 208 V
Frequency: 60Hz +/- 3 Hz
Cord Length: 6 ft.
Voltage range for Main Operations: 155 - 276 V
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte Included Battery Modules: (2)
Available Battery Slots: (2)
Typical recharge time: 4 hours
Replacement battery cartridge note: UPS accepts 1-2 battery packs
Typical Backup Time at Half Load: 29.5 minutes (1400W)
Typical Backup Time at Full Load: 12.5 minutes (2800W) -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
375 lbs
-
Compliant Standards: CSACompliant Standards: UL 1778
-
39121011
-
Warranty Period: 2 years
