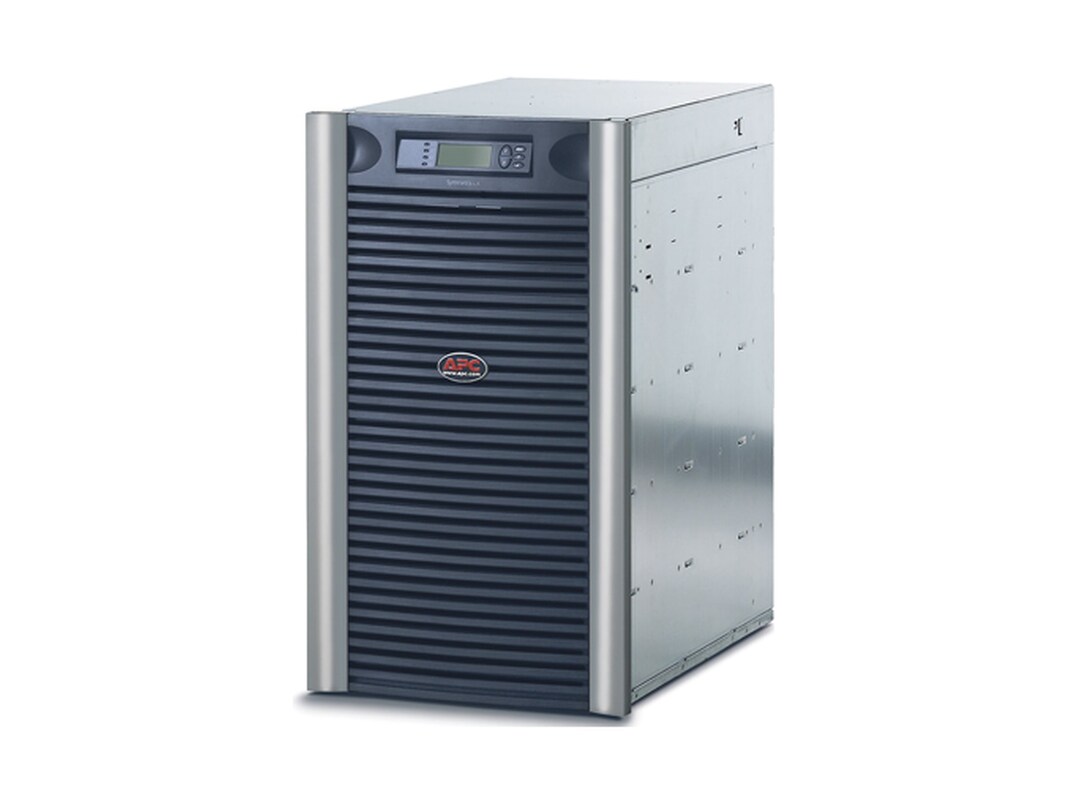

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rackmount, 208 240V Input 208 240V 120V Output (SYA16K16RMP)
-
Temporarily Out-of-Stock
- Call for next available delivery
High performance, redundant power protection with scalable power and runtime for space-constrained computer rooms and voice and data networks.
Ordering Information
$31,638.40
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
-
631.00 lbs
-
# Ports: 13Communication Interface: Serial (RS-232)Connector: HardwireConnector: Hardwire 4-wire (2PH+N+G)Connector: Power Hard Wire 4-wire (2PH + N + G)Connector: Power NEMA L14-30 (F)Connector: Power NEMA L5-20 (F)
-
UPS, Web/SNMP Management card, rack mounting support rails, software, documentation
-
Attributes: Double conversion onlineColor: BlackColor: SilverColor Family: BlackColor Family: SilverForm Factor: Rack-mountableForm Factor: TowerManufacturer Product Line: APC Symmetra LXModel: 16kVA Scalable to 16kVA N+1
-
32.9"h x 18.6"w x 27.1"d
-
(1) DB-9 RS-232 interface port
(2) SmartSlot (1 available)
(8) NEMA L5-20R output ports
(4) NEMA L14-30R output ports
(1) Hard Wire 4-wire (2PH+N+G) output connector
(1) Hard Wire 4-wire (2PH+N+G) input connector -
Battery Run Time (max): 6minPower Capacity (VA): 16000VAPower Provided: 12800WSurge Suppression: StandardVoltage Provided: 120VVoltage Provided: 208VVoltage Provided: AC 120/208/240V
-
Output power capacity: 16,000 VA
Output power capacity: 12,800 Watts
Max Configurable Power: 16,000 VA
Max Configurable Power: 12,800 Watts
Nominal output voltage: 120, 208 V
Output Frequency (sync to mains): 47-63Hz
Configurable for 120/208 or 120/240 output voltage
Output Voltage Distortion: less than 5% at full load
Crest Factor: up to 5 : 1
Waveform type: Sinewave
Internal Bypass (Automatic and Manual), Optional External Bypass
Nominal input voltage: 208 V
Input frequency: 45 - 65 Hz (auto sensing)
Input Connection Type: Hard Wire 4-wire (2PH+N+G)
Input voltage range for main operations: 155 - 276 V
Other Input Voltages: 240V
Typical backup time at half load: 17.1 minutes (6400 Watts)
Typical backup time at full load: 6.0 minutes (12800 Watts)
Maintenance-free sealed Lead-Acid battery with suspended electrolyte. -
Remote Management Protocol: SNMP
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
763 lbs
-
Compliant Standards: CSACompliant Standards: FCC Class A certifiedCompliant Standards: UL 1778
-
39121011
-
Warranty Period: 2 years
