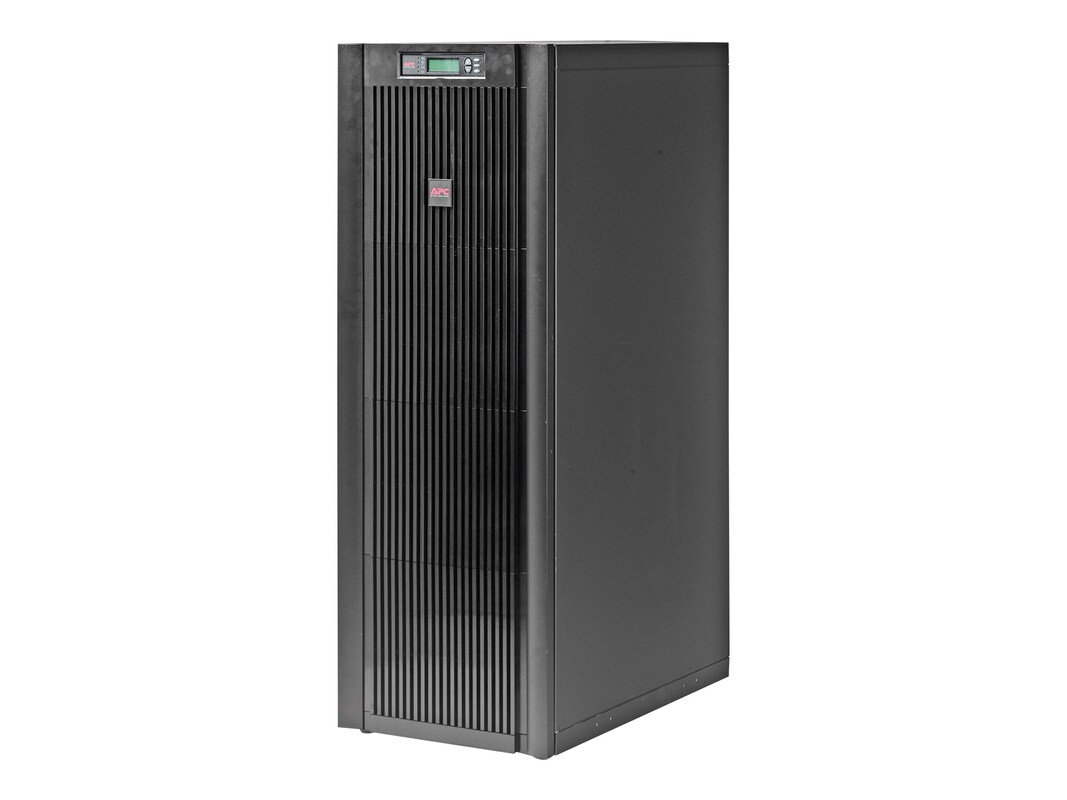

            APC Smart-UPS VT 15KVA 208V (3) Battery Mod Exp to (4), Start-Up 5x8, Int Maint Bypass, (SUVTP15KF3B4S)
-


				Temporarily Out-of-Stock

- Call for next available delivery
Ordering Information

			$12,643.82



            Add to Cart
Messages
					 Loading
					Loading

-
										:
Quick View
                     Getting Details
                    Getting Details

                Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and laboratory equipment, the Smart-UPS VT features dual-mains input, automatic bypass, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators. APC's Network Management Card with temperature monitoring provides remote monitoring and management through Web/SNMP. Serviceability is greatly enhanced with its user-replaceable batteries and manageable extended run frames. The Smart-UPS VT is the easiest UPS in its class to deploy, manage and maintain.

        -
                1115.00 lbs
-
                Pre-Installed SmartSlot card: AP9619
 Control panel: multi-function LCD status and control console
 Audible alarm: audible and visible alarms, configurable delays
 Emergency Power Off (EPO): Yes
-
                # Ports: 2Communication Interface: EthernetConnector: Hardwire 5-wire (3PH + N + G)Connector: Power Hard Wire 5-wire (3PH + N + G)
-
                UPS, (3) battery modules, power modules, bolt-down brackets, Smart UPS signalling RS-232 cable, Start up included, Web/SNMP management card, software, documentation
-
                Attributes: Double conversion onlineColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerManufacturer Product Line: APC Smart-UPS VTModel: 15kVA with 3 Battery Modules Expandable to 4Weight Taxonomy: 1117.73lbs
-
                59"h x 20.6"w x 32"d
-
                (1) Hard Wire 5-wire (3PH + N + G) power out
 (1) Screw Terminals power out
 (1) Hard Wire 5-wire (3PH + N + G) power in
 (1) DB-9 RS-232 interface port
 (1) Smart-Slot (occupied)
-
                Battery Run Time (max): 18minPower Capacity (VA): 15000VAPower Provided: 12kWPower Provided: 12000WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 192VVoltage Provided: 208V
-
                Output power capacity: 12000W/15000VA
 Maximum configurable power: 12000W/15000VA
 Nominal output voltage: 120VAC, 208VAC, 208VAC 3PH
 Output voltage note: configurable for 208 and 220VAC - 3 Phase
 Efficiency at full load: 93%
 Output voltage distortion: less than 5% at full load
 Output frequency: 57-63Hz for 60Hz nominal
 Built-in Maintenance Bypass
 Built-in Static Bypass
 Nominal input voltage: 208VAC 3PH
 Input frequency: 40-70Hz
 Input voltage range for main operations: 177-239VAC
 Other input voltages: 220VAC
 Maximum input current: 40A
 Input breaker capacity: 60A
 Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
 Included battery modules: (3)
 Available battery slots: (1)
 Typical recharge time: 5 hours
 RBC quantity: (1)
 Typical backup time at half load: 45.7 minutes (6000 Watts)
 Typical backup time at full load: 18.0 minutes (12000 Watts)
-
                Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
                This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
                1183 lbs
-
                Compliant Standards: CULCompliant Standards: EN 50091-2Compliant Standards: FCC Class A certifiedCompliant Standards: FCC Part 15Compliant Standards: IEC 62040-1-1Compliant Standards: IEC 62040-3Compliant Standards: ISO 14001Compliant Standards: ISO 9001Compliant Standards: UL 1778
-
                39121011
-
                Warranty Period: 1-year warranty
