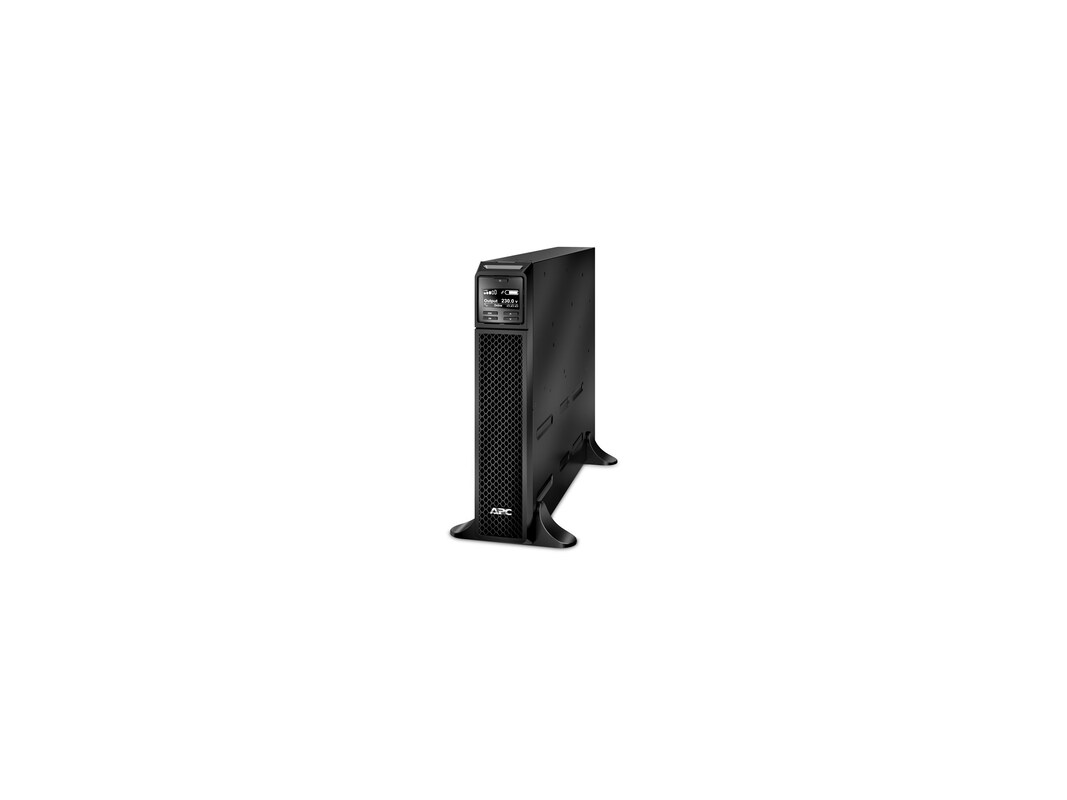

APC Smart-UPS SRT 3000VA 230V Double-Conversion Online Int'l Tower C20 Input (8) C13 (2) C19 Outlets
-
Temporarily Out-of-Stock
- Call for next available delivery
Ordering Information
$4,846.75
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice/data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
-
69.00 lbs
-
SRT3000XLI Features
Best-in-class power density - More real power in watts, 0.9pf.
High-efficiency "green mode" - Achieves 98 percent efficiency, which saves
utility and cooling costs without compromising performance or reliability.
Graphical LCD display with multicolor backlight - Intuitive interface provides detailed and accurate information with ability to configure locally.
Intelligent battery management - Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.
Built-in energy meter - Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
Operate without battery - Ability to immediately protect equipment when power returns after a complete discharge of the battery.
Three-year warranty on electronics - Additional year of warranty protection for electronics provides peace of mind.
Communications & Management
Interface Ports: RJ-45 Serial, Smart-Slot, USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Available SmartSlot Interface Quantity: (1) -
# Ports: 10Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Europlug (power CEE 7/16)Connector: Power BS 1363AConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power IEC 60320 C20Connector: Power Schuko CEE 7 EU1-16 (M)
-
UPS, software CD, removable support feet, USB cable, country-specific detachable power cord, documentation
-
Attributes: Double conversion onlineColor Family: BlackForm Factor: 2U RackmountForm Factor: ExternalManufacturer Product Line: APC Smart-UPS SRTModel: 3000VAWeight Taxonomy: 69lbs
-
17"h x 3.3"w x 25"d
-
Output Connections: (8) IEC 320 C13, (2) IEC 320 C19, (2) IEC Jumpers
Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Cord Length: 8 feet (2.44 meters) -
Battery Run Time (max): 4minPower Capacity (VA): 3000VAPower Provided: 2700Power Provided: 2700WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 230V
-
Output
Output Power Capacity: 2700 Watts / 3000 VA
Max Configurable Power: 2700 Watts / 3000 VA
Nominal Output Voltage: 230V
Output Voltage Note: Configurable for 220V, 230V or 240V nominal output voltage
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3Hz
Other Output Voltages: 220V, 240V
Crest Factor: 3:1
Topology: Double Conversion Online
Waveform Type: Sine wave
Bypass: Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage: 230V
Input Frequency: 40-70Hz (auto sensing)
Input voltage range for main operations: 160 - 275V
Input voltage adjustable range for mains operation: 100 - 275V (half load)
Other Input Voltages: 220, 240V
Batteries & Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Included Battery Modules: (1)
Typical recharge time: 3 hours
Replacement Battery: APCRBC152
Expected Battery Life: 3 - 5 years
RBC Quantity: (1)
Extendable Run Time: yes
Battery Volt-Amp-Hour Capacity: 505
Runtime, Full Load: 4.0 minutes (2700W)
Runtime, Half Load: 11.8 minutes (1350W)
Surge energy rating: 340 Joules -
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
81 lbs
-
Compliant Standards: CECompliant Standards: CSACompliant Standards: EACCompliant Standards: Energy StarCompliant Standards: FCC Part 15 ACompliant Standards: IEC 62040-1Compliant Standards: IEC 62040-2Compliant Standards: IP20Compliant Standards: RCMCompliant Standards: VDE
-
39121011
-
Warranty Period: 3 years
-
3 years repair or replace (excluding battery) and 2 years for battery.
