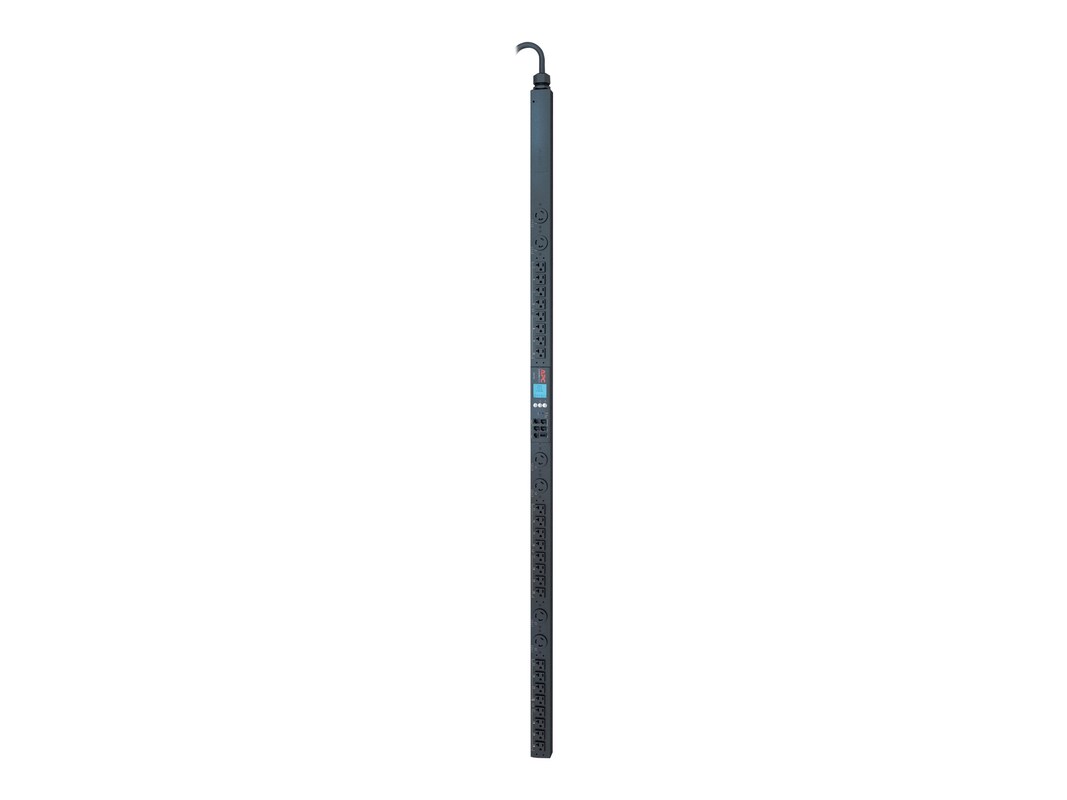

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity and Energy Efficiency.
-
14.48 lbs
-
Regulatory Approvals
cUL Listed
FCC Part 15 Class A
ICES-003
UL 60950-1
UL Listed
RoHS Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: Contains Lithium Coin Cell -
# Ports: 30Connector: Power NEMA 6-20 (F)Connector: Power NEMA L21-20Connector: Power NEMA L21-20 (M)Connector: Power NEMA 5-20 (F)
-
PDU, rack mounting brackets, serial configuration cable, documentation
-
Attributes: MeteredColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 14.51lbs
-
72"h x 2.2"w x 1.7"d
-
Output Connections: (24) NEMA 5-20R, (6) NEMA L6-20R
Input Connection: NEMA L21-20P
Cord Length: 6 feet (1.83 meters)
Number of Power Cords: (1) -
Power Capacity (VA): 5760VAVoltage Provided: 120VVoltage Provided: 208VVoltage Provided: AC 120/208V
-
Output
Nominal Output Voltage: 120V, 208V
Maximum Total Current Draw per Phase: 16A
Input
Nominal Input Voltage: 208V 3-phase
Input Frequency: 50/60Hz
Regulatory Derated Input Current (North America): 16A
Maximum Input Current per phase: 20A
Load Capacity: 5760VA -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
19.2 lbs
-
Compliant Standards: CULCompliant Standards: FCC Part 15 ACompliant Standards: ICES-003Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 60950-1
-
