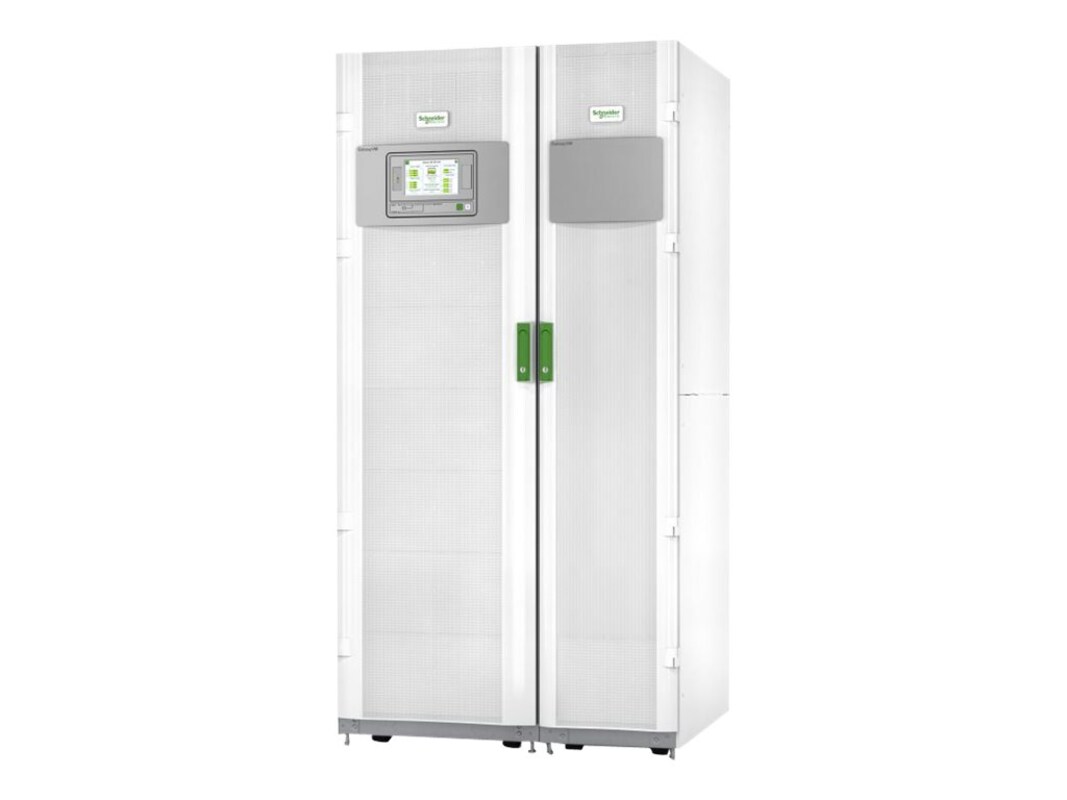

This APC Galaxy VM model is a highly compact, energy efficient, 65kAIC rated 3-phase UPS with parallel capability. The Galaxy VM is a key component of the fully integrated and comprehensive Schneider Electric energy management solution for data centers and industrial applications. Deploying the latest in technology, it lowers energy costs through high efficiency and an ECOnversion mode. State-of-the-art electrical performance options, such as wide input voltage range, high overload and short-circuit capacities, and integrated back-feed protection, allow the Galaxy VM to seamlessly integrate into your electrical network to provide excellent power quality. Highly compact, the Galaxy VM also integrates well with facility monitoring systems and smart grid requirements, offering energy storage flexibility that tailors the solution to your specific needs. It features top and bottom cable entry, full front service access, back-to-the-wall installation, and includes start-up services, making the Galaxy VM one of the easiest UPS units in its class to deploy, install, and maintain.
-
1548.80 lbs
-
Dry Contact inputs:
User assignable inputs allow other equipment alarms to be monitored through the power system controller
Dry contact output:
Provides remote notification of failures when used with APC environmental monitoring unit or system.
ECOnversion mode:
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
Integrated network management:
Provides complete remote monitoring and control of the UPS. Enables you to monitor remote UPS's from a web browser or industry standard Network Management System.
Lithium-ion battery:
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly. Batteries are sold separately.
Modbus RS-485 and Modbus TCP support:
Enables remote monitoring and interfaces with StruxureWare Data Center Expert, building management systems, or other third-party systems.
Parallel-capacity capable:
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Pre-installed dust filters:
Protects the UPS from harsh environments
Seismic compliance:
These all-steel enclosures meet IBC Zone 2 seismic rating.
SmartSlot:
Customize UPS capabilities with management cards.
StruxureWare Data Center Expert compatible:
Enables centralized management via StruxureWare Data Center Expert.
Top and bottom cable entry (standard):
Flexibility that allows the customer to decide - and at no extra cost. -
Connector: Hardwire 4-wire (3PH + G)Connector: Power Hard Wire 3-wire
-
UPS, dust filter, top and bottom cable entry, start-up service (part number: WSTRTUP-VM-18), documentation
-
Color: WhiteForm Factor: ExternalForm Factor: TowerManufacturer Product Line: APC Galaxy VMModel: ParallelWeight Taxonomy: 1552.04lbs
-
77.56"H x 39.45"W x 33.62"D
-
Power Capacity (VA): 225000VAPower Provided: 202.5kWVoltage Provided: AC 480V
-
Output power capacity: 202.5 KWatts / 225.0 kVA
Max Configurable Power (Watts): 202.5 KWatts / 225.0 kVA
Nominal Output Voltage: 480V 3PH
Neutral Output Current: 244A
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60 Hz +/-1 Hz
Output Frequency (not synced): 50/60 Hz +/-1 Hz
Load Crest Factor: Unlimited
Topology: Double Conversion Online
Waveform type: Sine wave
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Output Voltage THD: < 2% linear load and <3% non-linear load
Output Voltage Tolerance: +/- 1% static and +/- 3% at 100% load step
Bypass: Built-in Static Bypass
Nominal Input Voltage: 480V 3PH
Input frequency: 40 - 70 Hz
Input Connections: Hard Wire 3-wire (3PH + G)
Input voltage range for main operations: 360 - 576 (480)V
Input voltage adjustable range for mains operation: 360 - 576 (480)V
Input Total Harmonic Distortion: Less than 3% for full load
Type of Input Protection Required: 3-pole breaker
Maximum Short Circuit Withstand (Icw): 65.0kAmps
Maximum Input Current: 347.0A
Input Power Factor at Full Load: 1.0
Battery type: No internal battery - uses external battery system
Nominal Battery Voltage: 480V
End of Discharge Maximum Battery Current: 549.0A
Expected Battery Life (years): 7 - 10
End of Discharge Battery Voltage: 384
Efficiency in Battery Operation: 95.5 %
Maximum Available Short Circuit Current: 65kAmps
Overload Operation: 60 seconds @ 125% and 30 seconds @ 150%
Control panel: 7" Touch Screen Display
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO: Optional
Available SmartSlot Interface Quantity: 2
Operating Temperature: 32 - 104 F ( 0 - 40 C )
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-3333ft ( 0-999.9meters )
Storage Temperature: -15 - 40 C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-49212ft ( 0-14763.6meters )
Audible noise at 1 meter from surface of unit: 65.0dBA
Online thermal dissipation: 27670.0BTU/hr
Protection Class: IP 20
Bypass Protection Device: 400.0
Max Bypass Input Current: 350.0A -
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
9.8 lbs
-
Compliant Standards: CULCompliant Standards: EN 62040-3Compliant Standards: Energy StarCompliant Standards: FCC Part 15 ACompliant Standards: FCC Part 15 BCompliant Standards: IEC 62040-3Compliant Standards: IP20Compliant Standards: OSHPDCompliant Standards: RoHSCompliant Standards: UL 1778
-
39121011
-
Warranty Period: 1-year warranty
