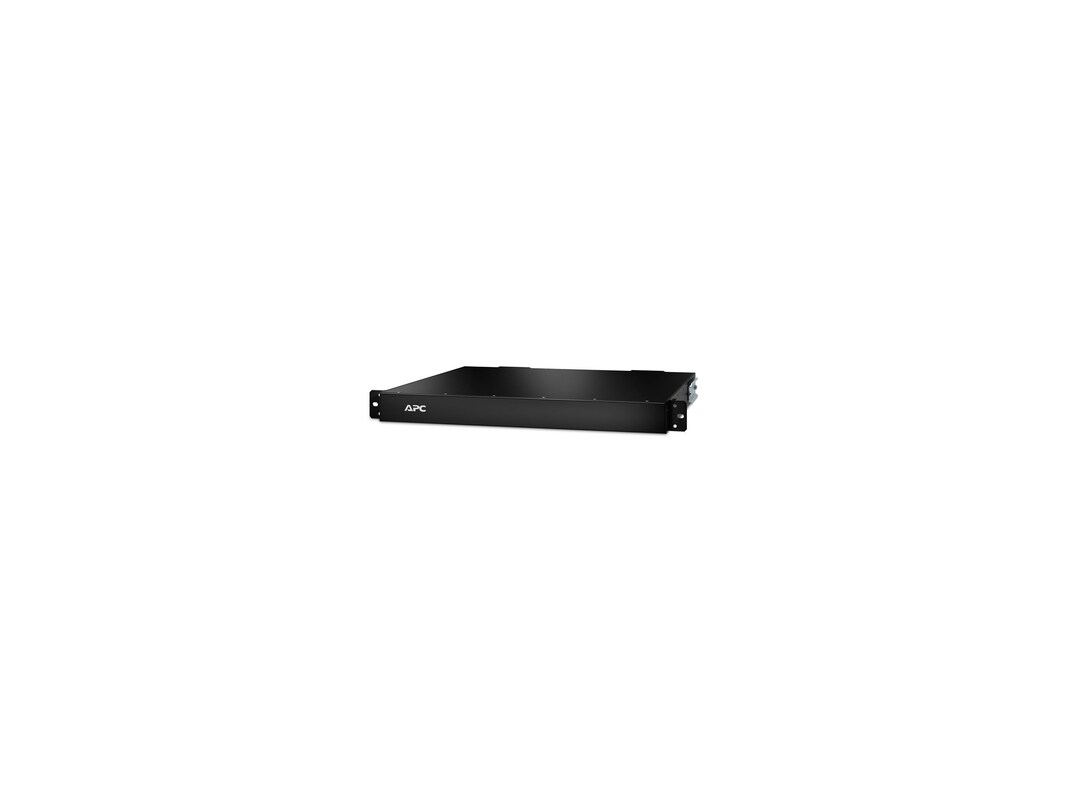

The APC 1U Marine Filter Rack Mount ensures conducted electromagnetic compliance per IEC60945/IACS E10/DNV-GL. When paired with a Marine Smart-UPS, users can depend on high availability, ruggedized power protection for shipboard and other transportation applications.
-
14.80 lbs
-
Compatible with Marine Smart-UPS On-Line
5 and 6 kVA/kW 230 V -
Connector: Hardwire 3-wire
-
Marine filter, mounting hardware, rack mounting brackets, documentation
-
Color: BlackForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 14.84lbs
-
Hardwire capable:
For installations where hard wiring is required or prefered.
Rack Mount:
1U rackmountable. Hardware included. -
1.75"H x 19"W x 13"D
-
Power Capacity (VA): 6000VAVoltage Provided: AC 200/208/220/230/240V
-
Nominal Output Voltage: 200V , 208V , 220V , 230V , 240V
Other Output Voltages: 208, 220, 230, 240
Maximum Total Current Draw: 50
Output Connections: (1) Hard Wire 3-wire (H N + G) (Battery Backup)
Nominal Input Voltage: 200V , 208V , 220V , 230V , 240V
Input frequency: 45 - 65 Hz
Input Connections: Hard Wire 3-wire
Acceptable Input Voltage: 100-240VAC
Load Capacity: 6000VA
Maximum Input Current: 50A
Maximum Line Current: 50A
Regulatory Derated Input Current (North America): 50A
Operating Temperature: 32 - 131 F ( 0 - 55 C )
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -25 - 75 C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-50000ft ( 0-15000meters ) -
This product is subject to our return policy. Please see our complete return policy for details.
-
18.2 lbs
-
Compliant Standards: DNVCompliant Standards: REACHCompliant Standards: RoHS
-
39121000
