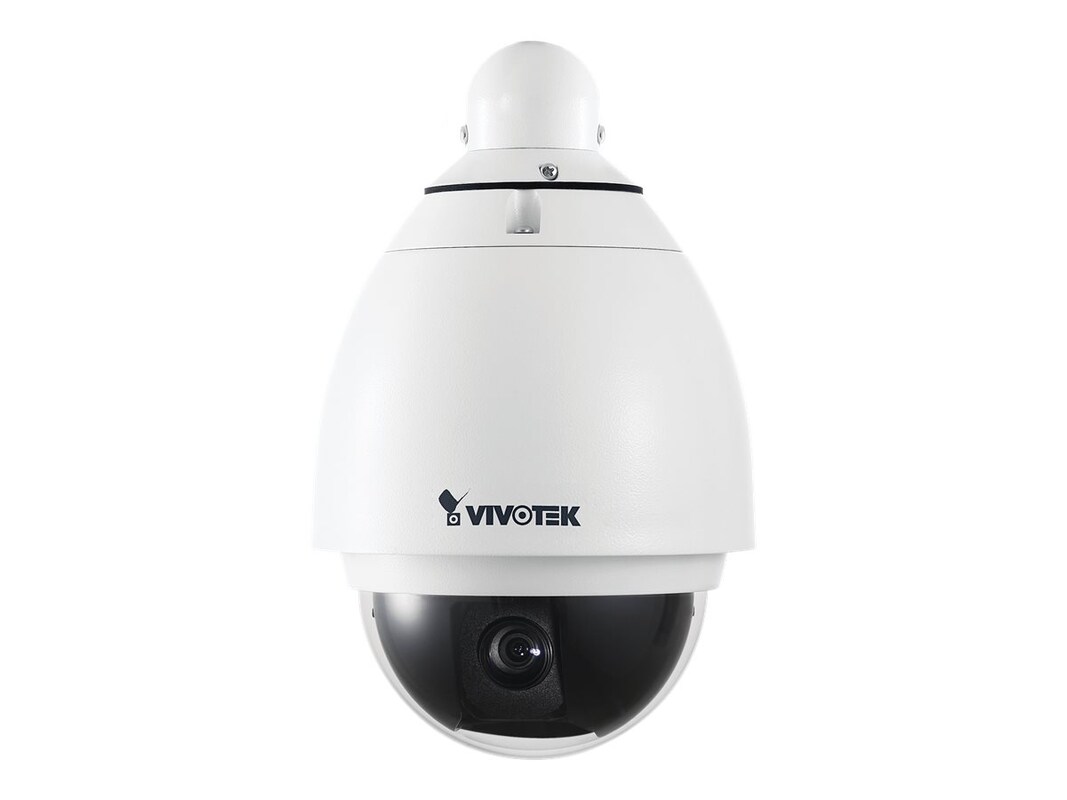

SD8311E/21E are high performance day/night speed dome network cameras suitable for professional surveillance applications. The IP66-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. The SD8311E/21E are especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways, parking lots, and shopping malls, where high-level reliability and precision are always required.
The SD8311E/21E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60fps @ D1. Boasting WDR Pro technology, the SD8311E/21E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of a human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest in and set up to 128 preset positions for patrolling.
As with all VIVOTEK true day/night cameras, the SD8311E/21E features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. With other advanced features such as audio detection, 802.3at compliant PoE Plus, and 60fps high quality video, the SD8311E/21E is the best choice for the most demanding outdoor surveillance applications.
The SD8311E/21E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60fps @ D1. Boasting WDR Pro technology, the SD8311E/21E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of a human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest in and set up to 128 preset positions for patrolling.
As with all VIVOTEK true day/night cameras, the SD8311E/21E features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. With other advanced features such as audio detection, 802.3at compliant PoE Plus, and 60fps high quality video, the SD8311E/21E is the best choice for the most demanding outdoor surveillance applications.
-
7.50 lbs
-
Pan/Tilt/Zoom:
Pan range: 360° continuous rotation
Tilt range: 0° ~ 90° flip
18x optical zoom
Pan speed: 0.1° ~ 300° / sec
Tilt speed: 0.1° ~ 120° / sec
Number of presets: 128
Auto pan mode
Auto patrol mode
Lens:
18x optical zoom
f=4.1 ~ 73.8 mm
F 1.4 (wide)
F 3.0 (tele)
Focus range: wide 10 mm, tele 800 mm to infinity
auto iris
auto focus
Removable IR-cut filter for day & night function
Video Features:
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 60/50 fps at 720x480 (SD8311E) / 720x576 (SD8321E)
MPEG-4: Up to 60/50 fps at 720x480 (SD8311E) /720x576 (SD8321E)
MJPEG: Up to 60/50 fps at 720x480 (SD8311E) /720x576 (SD8321E)
Up to 30/25 fps in WDR mode
Image Settings:
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC AWB AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR Pro
Audio Features:
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, µ-Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio
Supports audio mute -
Camera, Software, Documentation
-
Color: WhiteManufacturer Product Line: VivotekModel: SD8311E/21E WDR Pro
-
Optical Sensor Type: EXview HAD Progressive Scan CCD
-
7.9"w x 10.6"h
-
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X -
24V AC
Power consumption: Max. 60 W
802.3at compliant Power-over-Ethernet Plus -
This product is subject to our return policy. Please see our complete return policy for details.
-
10 lbs
-
Compliant Standards: IEC 60529 IP66
-
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above -
46171610
-
Warranty Period: 1-year warranty
