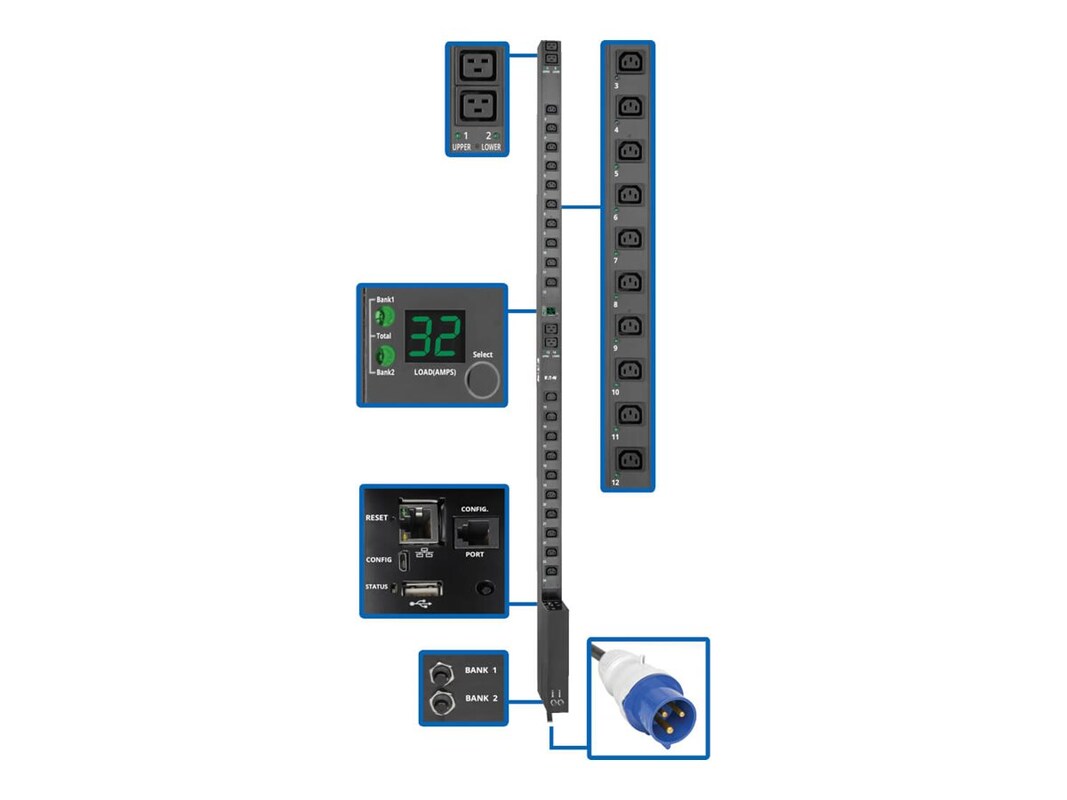

Tripp Lite Switched 0U PDU 7.4kW 230V 32A, IEC-309 32A Blue Input, (20) C13 (4) C19 Outlets, LX Interface

12.51 lbs

0U PDU Distributes, Monitors and Manages Network-Grade AC Power:
Recommended for data centers, server rooms and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and properly balance loads without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance.

24 Outlets Dispense Clean Power:
During normal operation, 24 individually controllable outlets—20 C13 and four C19—distribute AC power to connected equipment. Each 230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into two load banks, each protected by a circuit breaker that trips if the bank’s connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads:
A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. The firmware can be easily upgraded to ensure the PDU continues to perform at its best as connected equipment adds new features.

Built-In LX Platform Network Management Card Allows Remote Access 24/7:
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Easy to Install Vertically in an EIA-Standard 19 in. Rack:
The 0U PDU mounts vertically using the included toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with IEC 309 32A Blue (2P+E) input plug connects the single-phase PDU to a compatible AC power source, generator or protected UPS system.

TAA-Compliant for GSA Schedule Purchases:
The PDUMV32HVNETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

PDU, (24) plug-lock insert sleeves, rack mounting hardware, spare mounting buttons, PDUMVROTATEBRKT mounting brackets accessory, documentation

69.92"H x 2.2"W x 4.25"D

SNMP Compatibility: Pre-installed WEBCARDLX provides remote monitoring and control via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Front Panel LCD Display:
Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)

Front Panel LEDs: 24 power availability LEDs confirm power off/on status for each built-in outlet
Switches: Pushbutton control scrolls visual load meter display from bank 1, bank 2 and band 1&2 combined

PDU Type: Switched

Output Capacity Details:
7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.7kW (208V), 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet

Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (20) C13; (4) C19
Output Nominal Voltage: 230
Overload Protection: Two 20A circuit breakers protect 12 outlets each
Customized Load Management Receptacles: Each outlet is individually controllable via remote interface

PDU Input Voltage: 230
Recommended Electrical Service: 32A 230V
Maximum Input Amps: 32.0
PDU Plug Type: IEC-309 32A BLUE (2P+E)
Input Cord Length (ft.): 10
Input Phase: Single-Phase

Form Factors Supported: 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor: Vertical (0U)

Relative Humidity: 5-95% non-condensing
