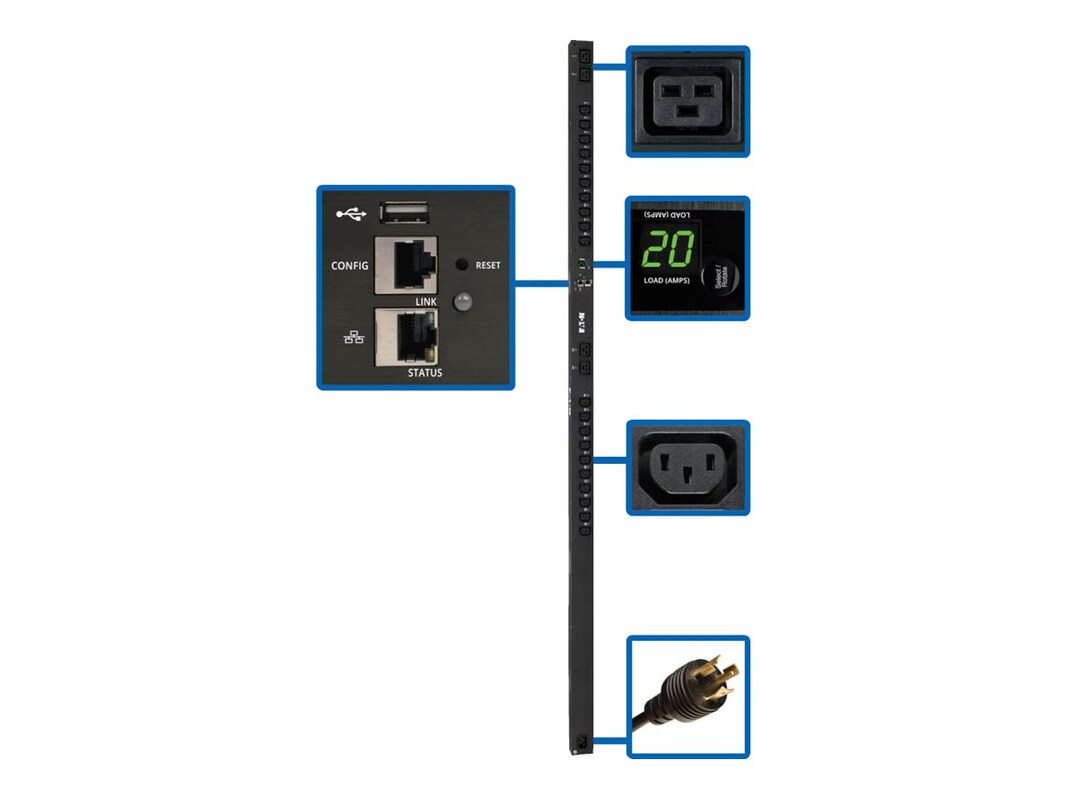

The 3.2–3.8kW Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU’s C20 inlet to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included mounting bracket kit to install the unit with outlets facing the rear for better airflow or equipment access.
-
8.50 lbs
-
Features
Distributes Network-Grade Single-Phase Power:
3.2–3.8kW 200/208/230/240V switched PDU
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
Includes detachable NEMA L6-20P plug with 10 ft. cord; C20 inlet supports user-supplied international input cabling
Firmware upgrades support future product enhancements
24 Switched Outlets Distribute AC Power:
20 C13 and 4 C19 outlets split into 2 separately breakered load banks
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Plug-lock inserts prevent cables from becoming accidentally disconnected
Digital Ammeter:
Reports load level on each bank and total PDU output
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility:
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
# Ports: 24Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power NEMA L6-20P
-
PDU with built-in LX platform interface, 10ft detachable NEMA L6-20P to C19 power cord, configuration cable, (24) plug-lock inserts, rack-mounting hardware, mounting bracket accessory, documentation
-
Attributes: SwitchedColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 8.51lbs
-
70"H x 2.19"W x 2.65"D
-
Power Provided: 3.2kWPower Provided: 3.8kWPower Provided: 3.84kWVoltage Provided: 200VVoltage Provided: 240VVoltage Provided: AC 200/208/220/230/240V
-
PDU Type: Switched
Output
Output Capacity Details: 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (20) C13; (4) C19
Output Nominal Voltage: 200; 208; 220; 230; 240
Overload Protection: n/a
Customized Load Management Receptacles: Each outlet is individually controllable via remote interface
Input
PDU Input Voltage: 200; 208; 220; 230; 240
Recommended Electrical Service: 20A 208/240V; 16A 230V
Maximum Input Amps: 20
Maximum Input Amps Details: Agency de-rated to 16A continuous
Input Connection Type: C20 inlet accepts included L6-20P input cable
PDU Plug Type: NEMA L6-20P; IEC-320 C20
Input Cord Length (ft.): 10
Input Phase: Single-Phase
User Interface, Alerts, and Controls
Front Panel LCD Display: Digital meter reports PDU output current in amps
Front Panel LEDs: 24 power availability LEDs confirm power off/on status for each built-in outlet
Physical
Form Factors Supported: 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical
Environmental
Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: Up to 95% non-condensing
Operating Elevation (ft.): Up to 10,000
Operating Elevation (m): Up to 3000
Communications
SNMP Compatibility: Built-in LX Platform Interface -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
14.2 lbs
-
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07Compliant Standards: EN 55022:2010/AC:2011Compliant Standards: FCC Class A certifiedCompliant Standards: IEC 60950-1:2005Compliant Standards: NOMCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: UL 60950-1:2007Compliant Standards: Yes
-
