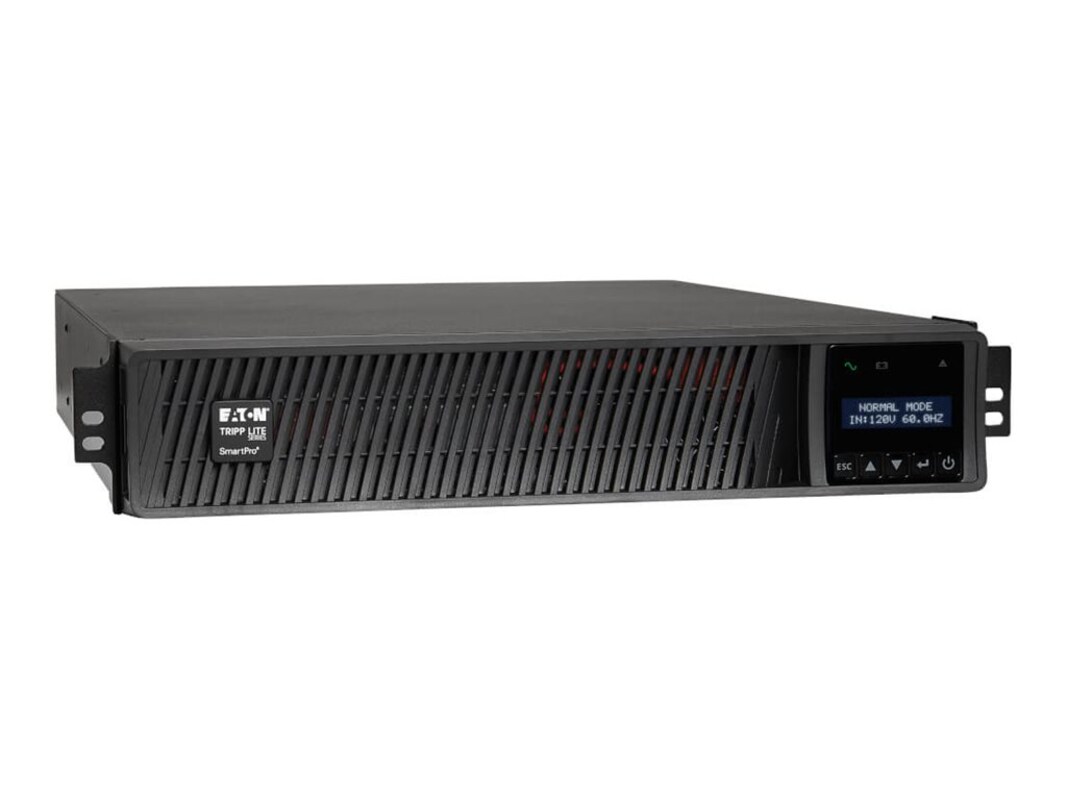

Tripp Lite SmartPro 1KVA 900W 120V Line-Interactive Sine Wave UPS Extended-Run 2U LCD (Smart1000RMXL2U)
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 97% full load efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options.
-
Key Features
Tripp Lite SMART1000RMXL2U line interactive 2U rack/tower UPS with 1000VA / 1kVA / 900 watt capacity
Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147V
NEMA 5-15P input plug; 8 NEMA 5-15R output receptacles, Two independently switchable output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 97% full load efficiency rating offers reduced power consumption and BTU emisssions
Internal batteries offer 18 minutes at 50% load (450W) and 6.3 minutes at 100% load (900W)
Extended runtime is available with optional BP36V15-2U (limit 1) OR BP36V42-3U (no limit), Output is reduced to 1200 watts maximum with external battery packs
External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
LEDs, ALARMS & SWITCHES
Front panel LCD: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Alarms: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
PHYSICAL
Installation form factors supported with included accessories: 4 post 19 inch rackmount (mounting rail kit included)
Installation form factors supported with optional accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Primary form factor: Rackmount
Installed whole system total rack space height (rack spaces): 2U
Secondary form factor: Tower (requires optional 2-9USTAND)
UPS housing material: Steel
Cooling method: Fan
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: Hot swappable batteries
Green & high efficiency features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation
CERTIFICATIONS
UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
UPS, PowerAlert Software with USB, Serial & EPO cabling, 4-post rackmount installation kit, documentation
-
Attributes: Line interactiveColor: BlackEnclosure Type: InternalForm Factor: 2U RackmountForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: SmartPro 1000VA 1000W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower Battery BackupWeight Taxonomy: 44.53lbs
-
Built-in UPS output receptacles: (8) 5-15R outlets
Built-in controllable switched load banks: Two switchable two outlet 5-15R load banks
UPS input connection type: 5-15P
UPS Input cord length: 10ft (3m) -
Battery Run Time (max): 6.3minPower Capacity (VA): 1000VAPower Provided: 1000Power Provided: 900WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 120VVoltage Provided: 48V
-
OUTPUT
Output Capacity: 1000VA/900W
Output power factor: 0.9
Output Capacity Details: Max output de-rates to 800 watts with external battery packs connected
Nominal Output Voltage Supported: 120V
Frequency compatibility: 60Hz
Output voltage regulation (line mode): 120V (+6%, -14%)
Output voltage regulation (battery mode): +/-5%
Output AC waveform (AC mode): Pure Sine wave
Output AC waveform (battery mode): Pure Sine wave
INPUT
Rated input current (at maximum load): 9.2A
Nominal Input Voltage Supported: 120VAC
Recommended Electrical Service: 15A, 120V
BATTERY
Full load runtime: 6.3 min. (900w)
Half load runtime: 18 min. (450w)
Expandable battery runtime: Extended runtime supported via optional external battery packs
External battery pack compatibility: BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible)
DC system voltage: 36VDC
Battery recharge rate (included batteries): Less than 4.5 hours from 10 to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC93-2U
Battery Access: Front panel battery access door
Battery replacement description: Hot-swappable, replaceable batteries
VOLTAGE REGULATION
Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147V
Overvoltage correction: Input voltages between 127 and 147V are reduced by 12%
Undervoltage correction: Input voltages between 104 and 83V are boosted by 14%
SURGE / NOISE SUPPRESSION
UPS AC suppression rating: 570 Joules
EMI / RFI AC noise suppression: Yes
AC suppression response time: Instantaneous -
This product is subject to our return policy. Please see our complete return policy for details.
-
51.25 lbs
-
Compliant Standards: CSACompliant Standards: FCC Part 15 ACompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL 1778
-
OS Required: Apple MacOS XOS Required: Microsoft Windows
-
39121011
-
Warranty Period: 2 years
