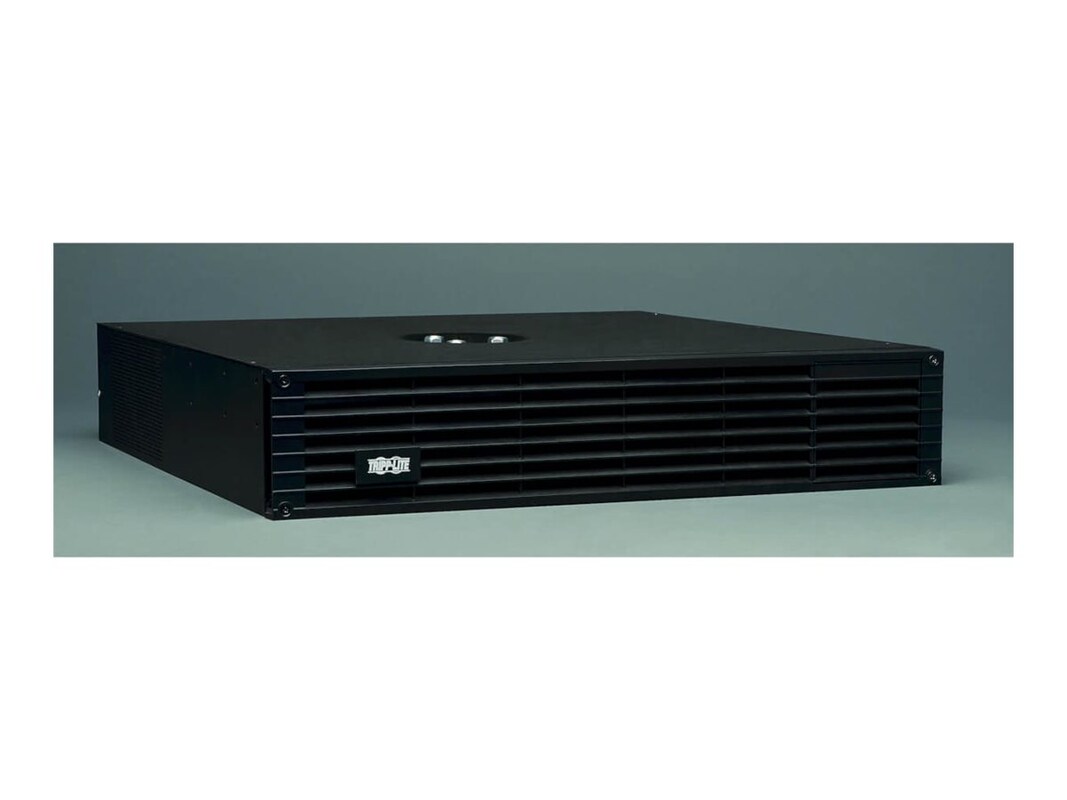

Tripp Lite SmartOnline Step-Down Isolation Transformer, 208 240V to 120V, 6kVA, 6kW, 2U Rack-Mount, TAA
- Tripp Lite
- Call for next available delivery
This 6kVA 6kW transformer converts UPS, utility, generator or other 208/240V input to 120V for powering low-voltage AC components.
208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output:
The 6kVA 6kW SU6000XFMR2UTAA SmartOnline® Step-Down Isolation Transformer converts your UPS, utility or generator’s 208V or 240V high-voltage input to 120V low-voltage output. Set the input voltage using the front-panel switch. The transformer features eight NEMA 5-15/20R and four NEMA 5-15R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable circuit breakers protect your low-voltage equipment against overload conditions. One NEMA L6-30R outlet supports high-voltage output.
Supports Plug or Hardwire Input:
The transformer’s four-foot power cord with 208/240V 24A input connects to a NEMA L6-30R outlet. You can also use the hardwire terminals to connect the transformer module to the power module’s input and output terminal blocks.
Versatile Installation Options:
Hardware is included for mounting the 208V to 120V isolation transformer transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 27.25 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately).
TAA-Compliant UPS for GSA Schedule Purchases:
The SU6000XFMR2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design:
The SU6000XFMR2UTAA comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Transformer, rack mounting hardware, documentation
3.5"H x 17.5"W x 21.8"D
Power Provided: 6 kW, 6000 VA, 6000 watt(s)Surge Suppression: Not available
Frequency Compatibility: 60 Hz
Output Receptacles: (8) 5-15/20R; (4) 5-15R; (1) L6-30R
Output (VA): 6000
Output (Watts): 6000
Output Nominal Voltage: 120, 208/240V AC
Overload Protection: 120V outlets are circuit breaker protected
Nominal Input Voltage(s) Supported: 208V AC; 240V AC
UPS Input Cord Length (ft.): 4
Recommended Electrical Service: 208/240V 30A
Maximum Input Amps: 24
Maximum Input Amps Details: 24A with L6-30P, 30A hardwired
Input Connection Type: L6-30P and hardwire input supported
Voltage Compatibility (VAC): 208; 240
Material of Construction: Steel
Form Factors Supported: Rack/Tower (2U)
Relative Humidity: 0-95% (non-condensing)
This product is subject to our return policy. Please see our complete return policy for details.
Compliant Standards: RoHS, TAA
2-year limited warranty
