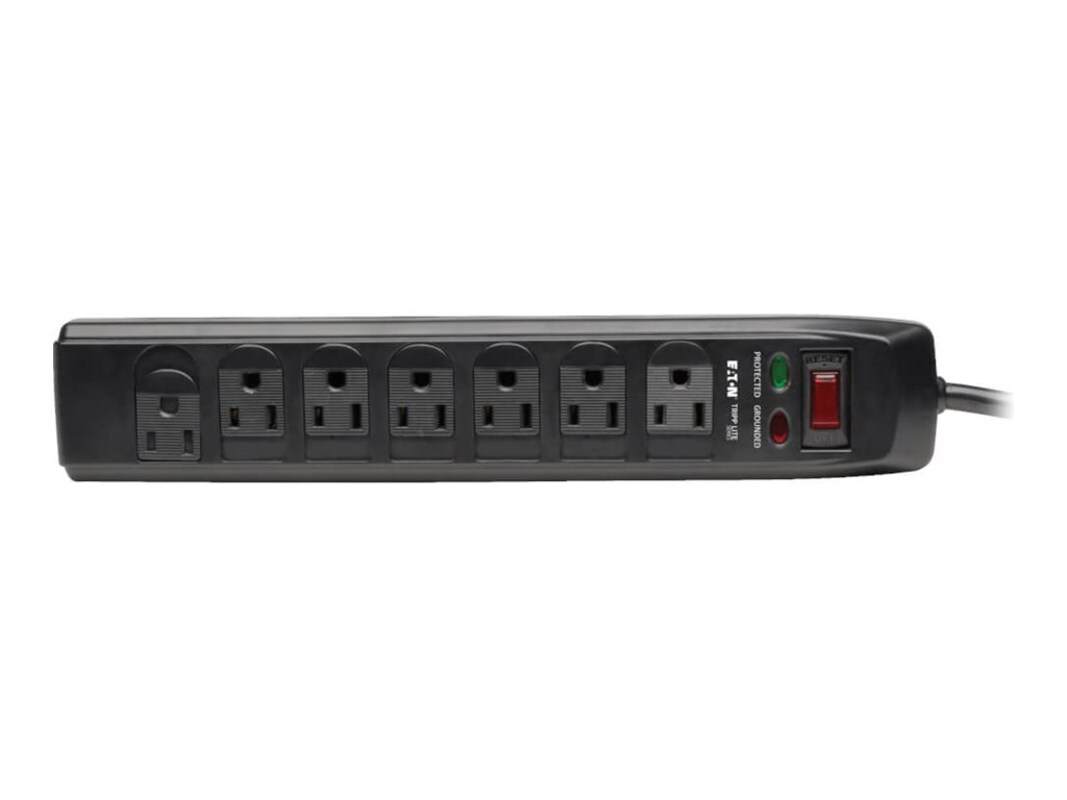

Tripp Lite's TLP76RBTEL surge suppressor offers complete AC and phone line surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. Set of RJ-11 telephone line suppression jacks protect dialup and DSL modem lines, fax machines, cordless phones and more. TLP76RBTEL offers 7 total outlets (6 at right angle and 1 designated transformer plug outlet), 6 foot cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive black housing with keyhole mounting tabs offer convenient protection of desktop computer equipment and accessories.
-
1.20 lbs
-
Key Features
1080 joules AC surge suppression shields equipment from the strongest surges and line noise
(7) total AC outlets (6 right angle and 1 transformer plug outlet)
6-foot AC line cable
Phone line surge suppression protects both dialup and DSL modems, plus fax machines, cordless phones and more
Attractive black housing
Lighted on/off switch with integrated circuit breaker for overload protection of all outlets
Diagnostic LED confirms surge suppression status
Integrated keyhole slots provide convenient wall/desk mounting
UL1449 3rd Edition Rated (400V all modes), UL1363 (Power Tap), cUL (Canada)
Exceeds IEEE 587 category A & B surge suppression specifications
LEDS ALARMS & SWITCHES
Switches: Combination AC circuit breaker and 2 position on/off power switch
Diagnostic LEDs: Built-in LED confirms suppressor "protection present" (green) status
PHYSICAL
Material of construction: Plastic
Integrated keyhole mounting tabs: Keyhole mounting tabs enable wall mounting
AC line cord color: Black
Color: Black
Style: Strip
Outlets center to center measurement: Between Standard Outlets = 28.5mm
Keyhole slot center to center measurement: Distance between slots = 207mm
SPECIAL FEATURE
Right-Angle Plug Yes
CERTIFICATIONS
UL1449 3rd Edition (AC Suppression) UL1449 3rd EDITION
UL1363 (Power Tap) UL1363
cUL / CSA (Canada) cUL
Approvals Exceeds IEEE 587 category A&B specifications -
# Ports: 7Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, phone cord 6ft, documentation
-
Attributes: RJ-11 line protectionColor: BlackForm Factor: ExternalForm Factor: StripWarranty Period: Limited lifetimeWeight Taxonomy: 1.19lbs
-
1.4"h x 2.2"w x 11.7"d
-
Outlet quantity/type: (7) NEMA 5-15R
Outlet orientation: Single row
Input connection type: NEMA 5-15P
Input cord length: 6ft
Input cord gauge, type: 14 gauge, SJT -
Power Provided: 1.8kWSurge Protection Rating: 1440JoulesVoltage Provided: 120V
-
OUTPUT
Frequency compatibility: 560Hz
Output: 1800W
Circuit Breaker: 15A
INPUT
Nominal Input Voltage Supported: 120VAC
Recommended Electrical Service: 120V (110-125V)
Voltage compatibility: 120VAC
LEDS ALARMS & SWITCHES
Switches: Two position on/off power switch
Diagnostic LEDs: Built-in LED confirms suppressor "protection present" (green) status
SURGE / NOISE SUPPRESSION
AC suppression rating: 1080 Joules
AC suppression response time: < 1ns
Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage: 150Vrms
UL1449 let through rating: 400V
DATALINE SURGE SUPPRESSION
Telephone/DSL Protection Details: 1 line -
This product is subject to our return policy. Please see our complete return policy for details.
-
1.5 lbs
-
Compliant Standards: CULCompliant Standards: FCC Part 68Compliant Standards: RoHSCompliant Standards: UL 1363Compliant Standards: UL 1449Compliant Standards: UL 497A
-
