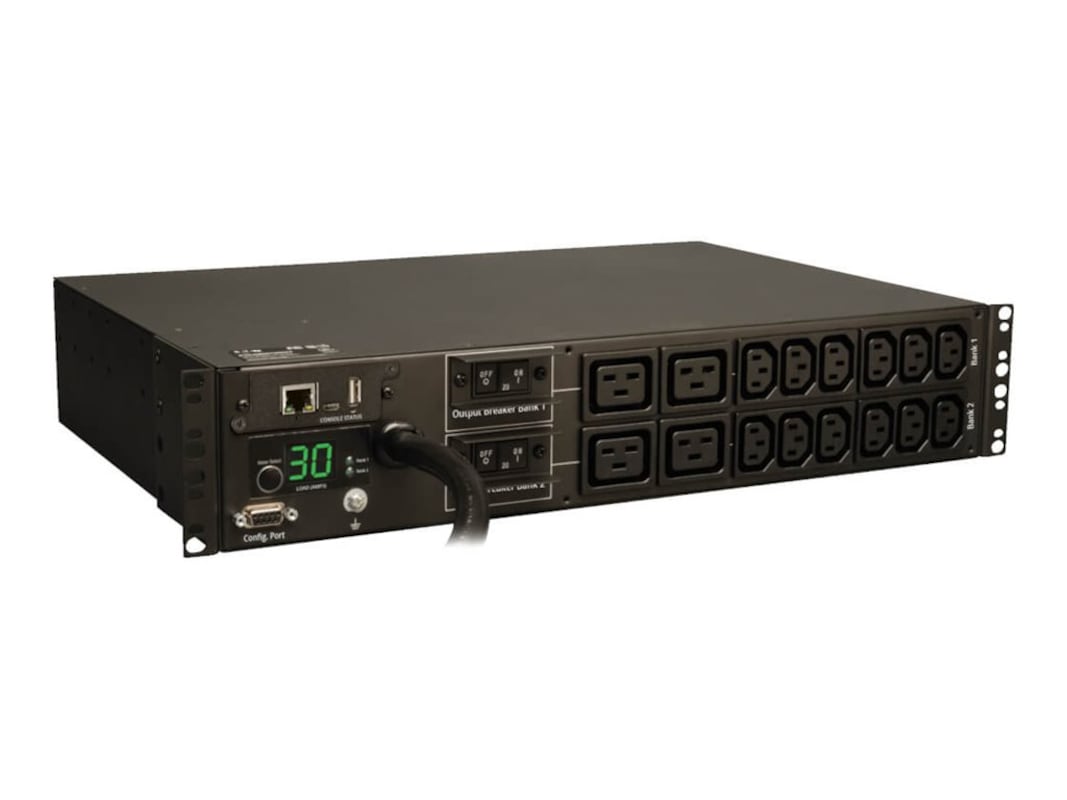

The Tripp Lite PDUMNH30HV horizontal 2U monitored rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). It includes a 12-foot (3.6-meter) attached line cord with an L6-30P input plug and (16) 230V outlets (12 C13, 4 C19). Outlets are arranged in two separately breakered 8-outlet banks. Visual and remote current monitoring tracks the current for each outlet bank separately, and provides combined power consumption for all 16 outlets. 2U installation in a 19-inch rackmount application is supported. The included cord retention brackets keep vital network equipment plugged in and continuously powered.
This Tripp Lite Monitored Rack PDU supports real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed locally on the front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with the optional ENVIROSENSE temperature/humidity probe and rack access notification for up to (4) SRSWITCH or user supplied contact-closure sensors. Real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds is supported. The PDU is fully compatible with PowerAlert Network Management System Software, which is available as a FREE download from www.tripplite.com.
This Tripp Lite Monitored Rack PDU supports real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed locally on the front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with the optional ENVIROSENSE temperature/humidity probe and rack access notification for up to (4) SRSWITCH or user supplied contact-closure sensors. Real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds is supported. The PDU is fully compatible with PowerAlert Network Management System Software, which is available as a FREE download from www.tripplite.com.
-
13.70 lbs
-
Key Features
2U horizontal rackmount Monitored Power Distribution Unit (PDU) with built-in web/network interface
208/240V 30A peak capacity (agency de-rated to 24A continuous)
Supports local current metering and network monitoring via built-in web/network monitoring and control card
Remote interface provides data regarding input power conditions and PDU load level via secure network or web browser interface
Supports notification and logging of all major power events and user specified alarm thresholds
Optional ENVIROSENSE temperature and humidity probe enables remote monitoring of environmental conditions and the ability to report conditions from up to four SRSWITCH or user-supplied contact closure sensors
DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
Real-time clock support maintains the time of day and date even if the PDU is shut down and unpowered
Tiered access privileges allow an administrator and a guest to log into the web browser for monitoring and/or management of all intelligent PDUs
Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
Front panel ammeter with push-button toggle switch displays power consumption for all 3 loading segments (8 outlets in bank 1, 8 outlets in bank 2 and total load of all outlets combined)
Two front panel LEDs with toggle button identify which bank the visual current meter is reporting (bank 1, bank 2 or banks 1 & 2 combined)
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Certifications: Tested to UL (USA), CSA (Canada), NOM (Mexico), Class A (emissions), RoHS compliant -
# Ports: 16Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power NEMA L6-30Connector: Power NEMA L6-30 (M)
-
PDU, rack mounting brackets, cable retention brackets, SNMPWEBCARD, configuration cable, software, documentation
-
Attributes: MeteredColor: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 13.67lbs
-
3.5"h x 17.5"w x 12.5"d
-
Attached L6-30P input plug with 12ft/3.6m line cord
(16) total output receptacles (12 C13, 4 C19) -
Power Provided: 5.8kWVoltage Provided: 240VVoltage Provided: AC 208/240V
-
OUTPUT
Frequency compatibility: 50/60Hz
Output nominal voltage: 208/240VAC
INPUT
PDU Input Voltage: 208, 240VAC
Recommended Electrical Service: 208/240V
Maximum Input: 30A
Voltage compatibility: 208, 240VAC, Single-Phase -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
16.25 lbs
-
Compliant Standards: CSACompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL
-
