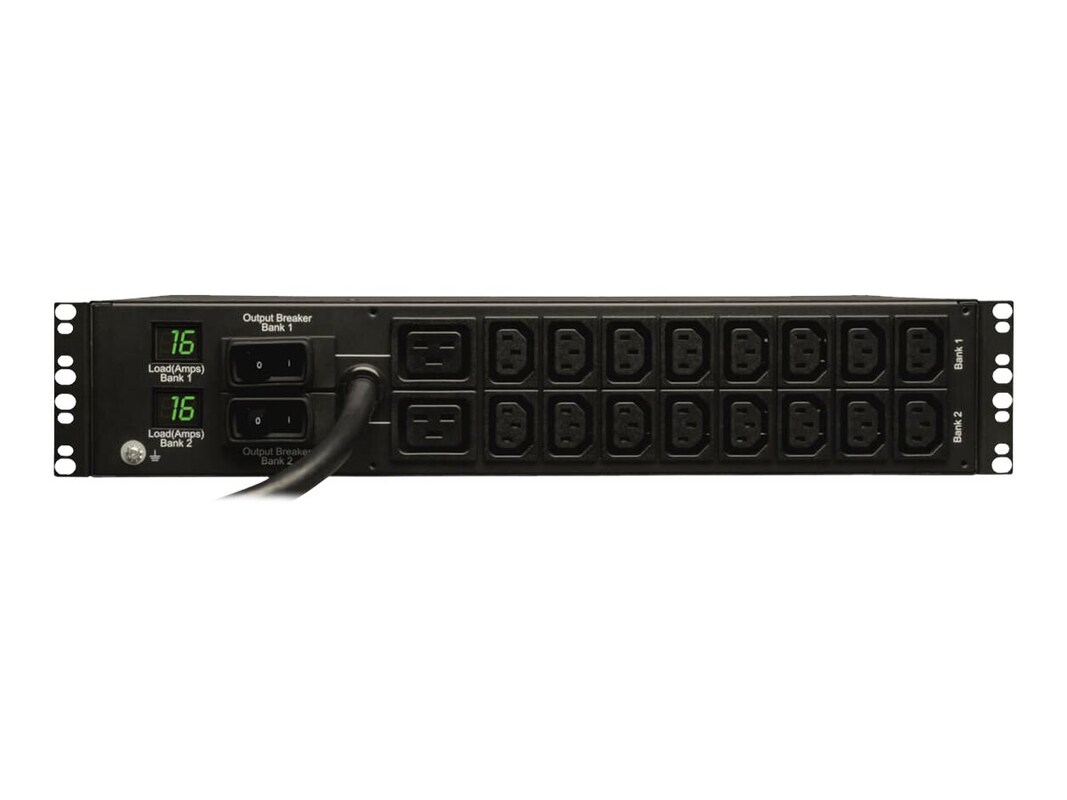

The PDUMNH32HV Metered, 2U horizontal rackmount PDU supports a 32A maximum capacity at 230V. An attached Blue 230V, IEC-309 32A (2P+E) input plug is included. (18) 230V outlets (16 C13, 2 C19) are arranged in two separately breakered 9-outlet banks. A set of two visual current meters tracks the output current of each load bank separately. 2U installation in 19-inch rackmount applications is supported. The included cord retention brackets keep vital network equipment plugged in and continuously powered.
The Tripp Lite Metered Rack Power Distribution Unit gives you the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. The built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more.
The Tripp Lite Metered Rack Power Distribution Unit gives you the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. The built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more.
-
13.70 lbs
-
Key Features
32A single phase 230V Metered Power Distribution Unit / PDU
Set of two lighted current meters separately report power consumption in amps for each output load bank
Attached IEC-309 32A (2P+E) input plug with 12 ft. / 3.6m line cord
2U horizontal rackmount format installs in two rack spaces
(18) total 230V outlets (2 C19, 16 C13)
Outlets are arranged in two separately breakered and metered 16A load banks(each with 8 C13 and 1 C19 outlet)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front-panel grounding lug
Included cord retention brackets
Typical Applications
Ideal for network configurations requiring a metered PDU. -
# Ports: 18Connector: Power IEC 320 (M)Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 32A
-
PDU, rack mounting hardware, cable retention brackets, documentation
-
Color: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 13.67lbs
-
3.5"h x 17.5"w x 12.5"d
-
Outlet quantity/type: (16) C13, (2) C19
Input connection type: IEC-309 32A BLUE (2P+E)
Input cord length: 12ft (3.65m) -
Power Provided: 7.4kWVoltage Provided: 230VVoltage Provided: AC 230V
-
OUTPUT
Output capacity: 7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
Frequency compatibility: 50/60Hz
Output nominal voltage: 230V
Overload protection: Outlets are arranged in two banks of 9 (8 C13, 1 C19 per bank); Each bank is protected by a separate circuit breaker
INPUT
PDU Input Voltage: 230V
Recommended Electrical Service: 230V
Maximum Input Current: 32A
Voltage compatibility: 230VAC
Phase: Single-Phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
16.2 lbs
-
Compliant Standards: CSACompliant Standards: IEC 60950-1Compliant Standards: RoHSCompliant Standards: TAACompliant Standards: UL
-
