Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance

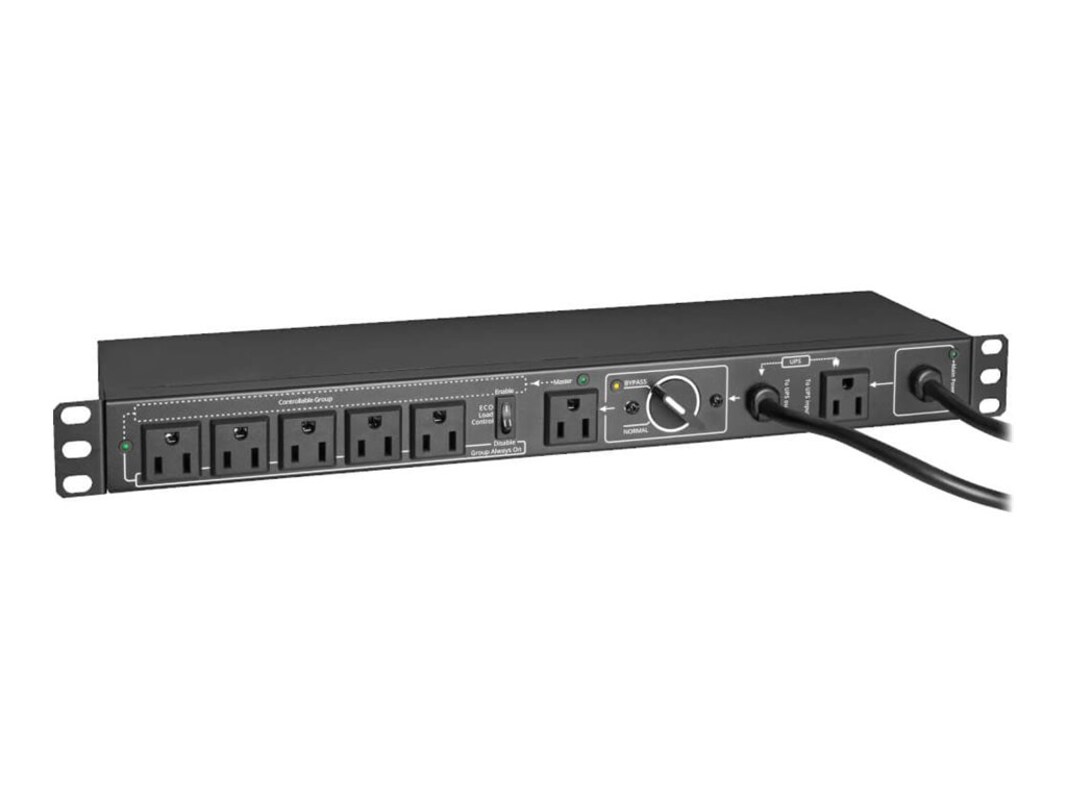

Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 120V 15A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU's bypass switch, permitting maintenance or equipment replacement with no interruption of performance.
Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation
The PDUB151U includes separate UPS and utility input cables with NEMA 5-15P plugs. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the six NEMA 5-15R outlets will continue to operate without interruption.
Optional ECO Switching Feature Enables Cost-Cutting Power Savings
By enabling the ECO power saving feature, you can power off a single bank of five controlled 5-15R outlets all at once when the device connected to the master 5-15R outlet is powered off or goes into a low-power consumption mode.
Mounts into 1U of Rack Space or Wall
Use the included mounting hardware to install the PDUB151U's all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.
Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 120V 15A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU's bypass switch, permitting maintenance or equipment replacement with no interruption of performance.
Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation
The PDUB151U includes separate UPS and utility input cables with NEMA 5-15P plugs. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the six NEMA 5-15R outlets will continue to operate without interruption.
Optional ECO Switching Feature Enables Cost-Cutting Power Savings
By enabling the ECO power saving feature, you can power off a single bank of five controlled 5-15R outlets all at once when the device connected to the master 5-15R outlet is powered off or goes into a low-power consumption mode.
Mounts into 1U of Rack Space or Wall
Use the included mounting hardware to install the PDUB151U's all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.
-
Connector: 2 x power NEMA 5-15P
-
Color: BlackForm Factor: Rack-mountableManufacturer Product Line: Eaton Tripp Lite SeriesModel: PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase - 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/WallWarranty Period: 2 yearsWeight Taxonomy: 5.2lbs
-
Power Provided: 1.52kWVoltage Provided: AC 100/120/127V
-
This product is subject to our return policy. Please see our complete return policy for details.
-
6.75 lbs
-
Compliant Standards: CAN/CSA-C22.2 No. 62368-1Compliant Standards: CAN/CSA-C22.2 No. 62368-1-14Compliant Standards: EACCompliant Standards: EMC Class ACompliant Standards: EMI Class ACompliant Standards: EN 55032:2015+AC:2016-07Compliant Standards: EN 55035:2017Compliant Standards: FCC CFR47 Part 15 BCompliant Standards: FCC Class A certifiedCompliant Standards: ICES Class ACompliant Standards: ICES-003Compliant Standards: IEC 62368-1: 2014 Second EditionCompliant Standards: NOMCompliant Standards: PCTCompliant Standards: RoHSCompliant Standards: TUV RheinlandCompliant Standards: UL 62368-1Compliant Standards: UL 62368-1-2014 Second Edition
-
