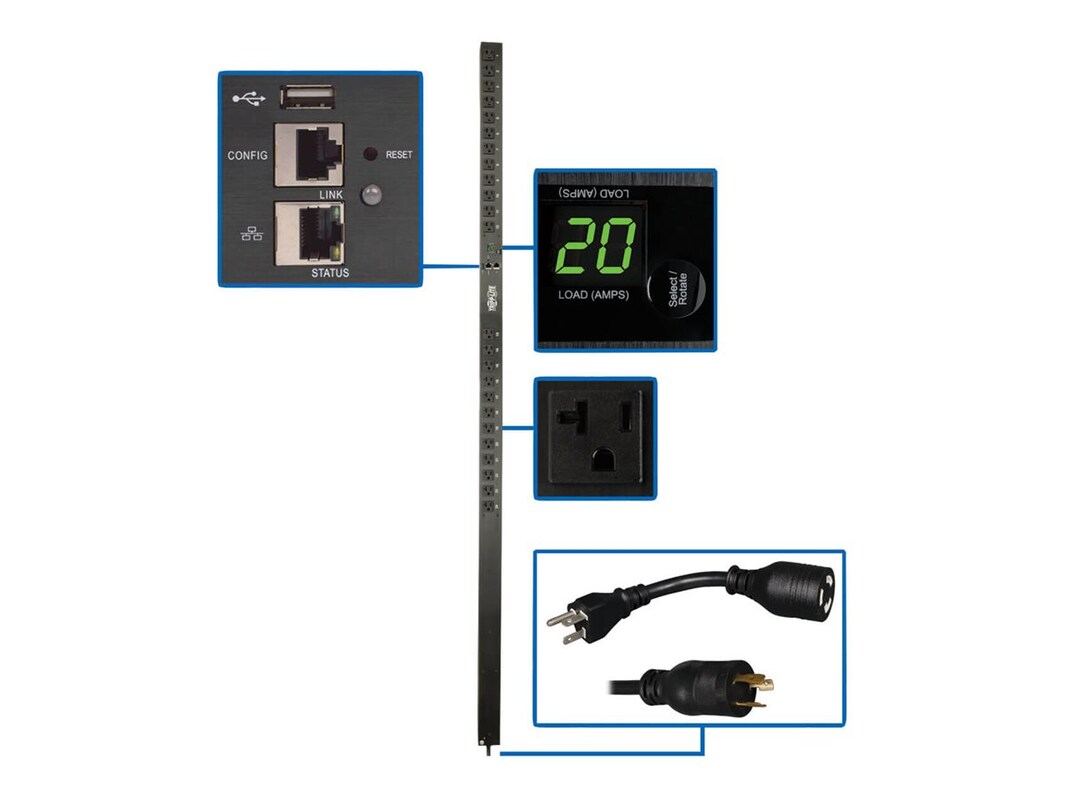

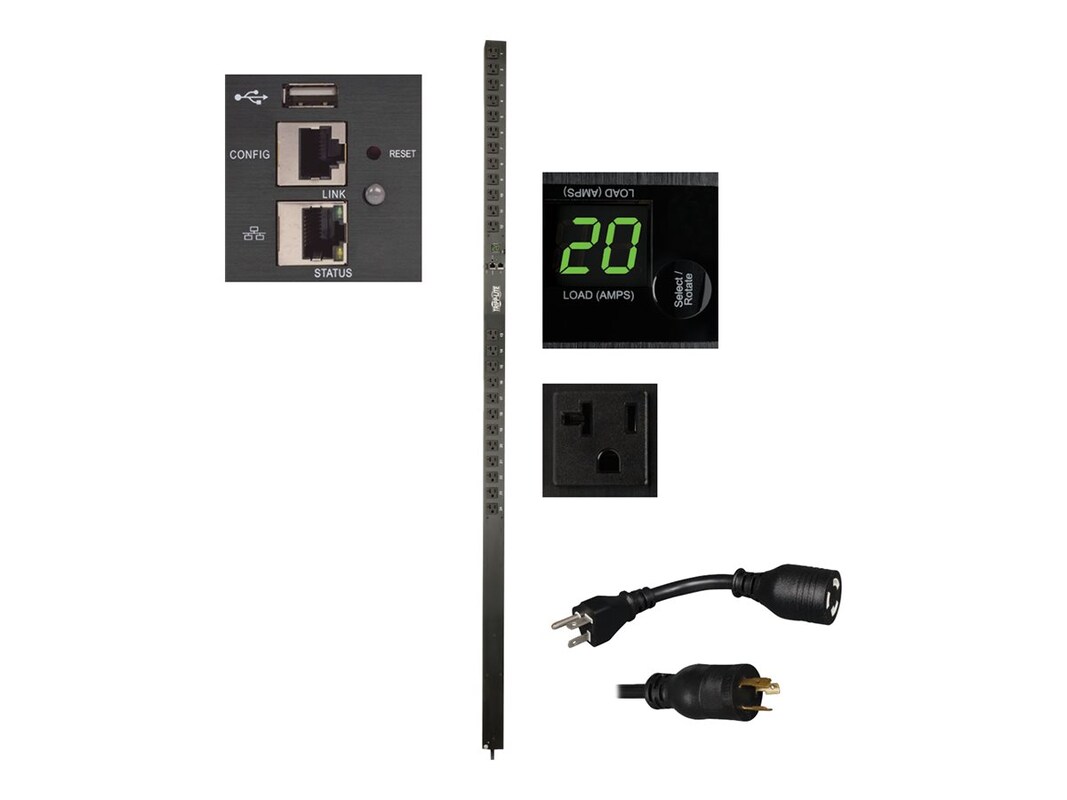

The Monitored Vertical 1.9kW Single-Phase PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features twenty-four NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with a NEMA L5-20P plug and 5-20P adapter connects the PDU to a compatible AC power source, generator, or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the PDU's current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the PDU's current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
-
12.20 lbs
-
# Ports: 24Connector: Power NEMA 5-15R/20RConnector: Power NEMA 5-20 (M)Connector: Power NEMA 5-20P
-
PDU, configuration cable, (24) cable ties, (2) cord retention brackets, NEMA 5-20P adapter, rack mounting hardware, bracket accessory for rear-facing outlet configuration, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 12.19lbs
-
Features
Distributes Network-Grade Single-Phase Power:
1.9kW 120V 20A monitored PDU with single-phase input/output
NEMA L5-20P with 10 ft. cord connects to compatible AC power source
NEMA 5-20P adapter converts locking input plug to straight-blade plug
Firmware upgrades support future product enhancements
24 Outlets Distribute AC Power:
24 NEMA 5-15/20R outlets
Cord retention bracket prevents cables from becoming accidentally disconnected
Digital Ammeter:
Reports total connected equipment load
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility:
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19" Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets -
70"H x 2.19"W x 1.75"D
-
Power Provided: 1.9kWVoltage Provided: 120VVoltage Provided: AC 100/120/127V
-
Output
Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (24) 5-15/20R
Output Nominal Voltage: 100; 120; 127
Overload Protection: n/a
Input
PDU Input Voltage: 100; 120; 127
Recommended Electrical Service: 20A 120V
Maximum Input Amps: 20
PDU Plug Type: NEMA 5-20P; NEMA L5-20P
Input Cord Length (ft.): 10
Input Phase: Single-Phase
User interface, alerts and controls
Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Front Panel LEDs: n/a
Switches: Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees
Physical
Material of Construction: Metal
Form Factors Supported: 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical
Environmental
Storage Temperature Range: 5 to 122F (-15 to 50C)
Relative Humidity: 5-95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0-3000
Communications
SNMP Compatibility: Via built-in LX Platform Interface -
Remote Management Protocol: SNMPRemote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
12.8 lbs
-
Compliant Standards: FCC Part 15 ACompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: UL 60950-1Compliant Standards: Yes
-
