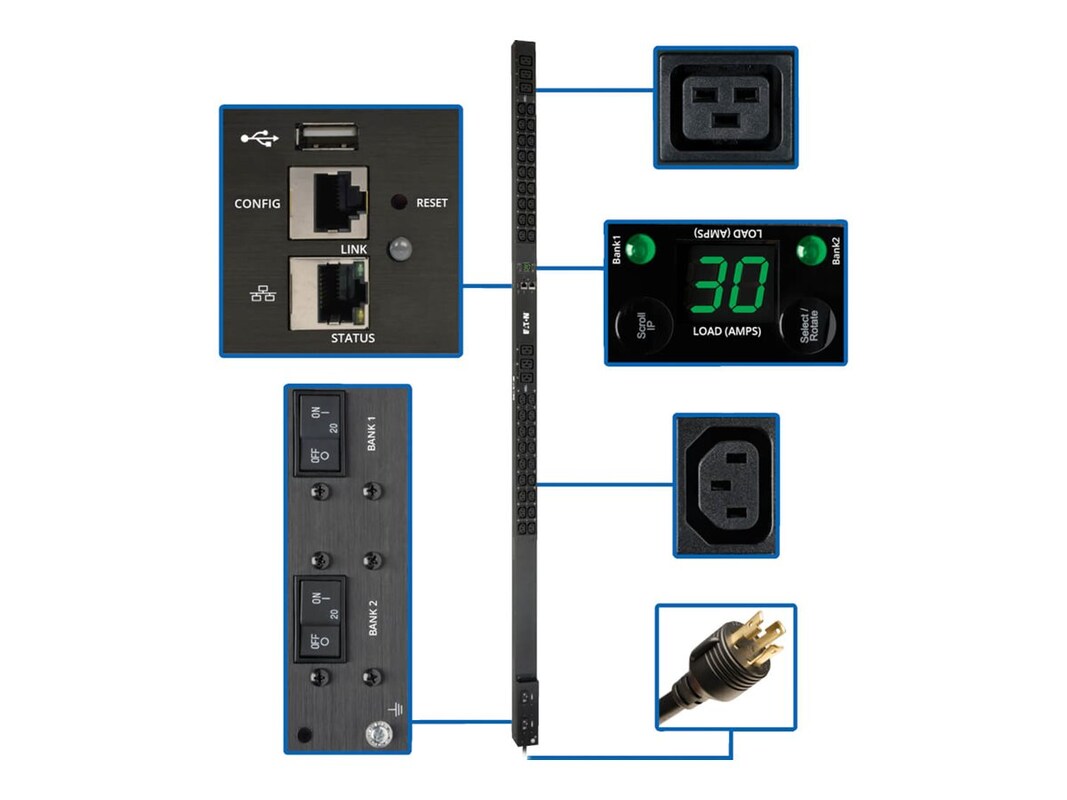

This 5/5.8kW 0U PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
-
15.00 lb(s)
-
Distributes and Monitors Network-Grade Single-Phase Power:
5/5.8kW 208/240V monitored PDU with single-phase input
NEMA L6-30P plug with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements
42 Outlets Distribute AC Power:
36 C13 and 6 C19 outlets split into 2 separately breakered 20A load banks
Plug-lock insert sleeves prevent cables from becoming accidentally disconnected
Digital Ammeter:
Reports current for each load bank and total connected PDU load
Supports IP-address self-ID
Rotates 180° for easy reading at either angle
Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility:
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Essential Safety Features:
Tiered access allows administrator and guest to log in via web browser
Immediate alert notifications via email or SNMP traps
Supports user-specified alarm notification thresholds
Real-time clock backup maintains day/date even if PDU is unpowered
Easy 0U Installation in EIA-Standard 19 in. Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
# Ports: 42Connector: Power IEC 320 EN 60320 C13 (F), Power IEC 320 EN 60320 C19 (F), Power NEMA L6-30 (M)
-
PDU with built-in LX platform interface, configuration cable, (42) plug-lock insert sleeves, rack mounting hardware, PDUMVROTATEBRKT mounting bracket accessory, documentation
-
Color: BlackForm Factor: 0U Rackmount, Rack-mountable
-
70"H x 2.2"W x 2.65"D
-
Power Provided: 208 V, 240 V, 5 kW, 5.8 kW
-
PDU Type: Monitored
Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (36) C13; (6) C19
Output Nominal Voltage: 200; 208; 240
Overload Protection: Two 20A breakers protect 21 outlets each
Customized Load Management Receptacles: n/a
PDU Input Voltage: 200; 208; 240
Recommended Electrical Service: 30A 208/240V
Maximum Input Amps: 30
Maximum Input Amps Details: Agency de-rated to 24A continuous
PDU Plug Type: NEMA L6-30P
Input Cord Length (ft.): 10
Input Phase: Single-phase
Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Front Panel LEDs: Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-21; Bank 2 LED indicates the meter is reporting load level for outlets 22-42; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Switches: Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees
Material of Construction: Metal
Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical
Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: 5 to 95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0 - 3000 m
SNMP Compatibility: Built-in LX Platform Interface -
This product is subject to our return policy. Please see our complete return policy for details.
-
Compliant Standards: CAN/CSA C22.2 No. 60950-1-07, FCC Part 15 A, NOM, RoHS, TAA, UL 60950-1:2007
-
