Tripp Lite Power Distribution Unit (PDU) Finder

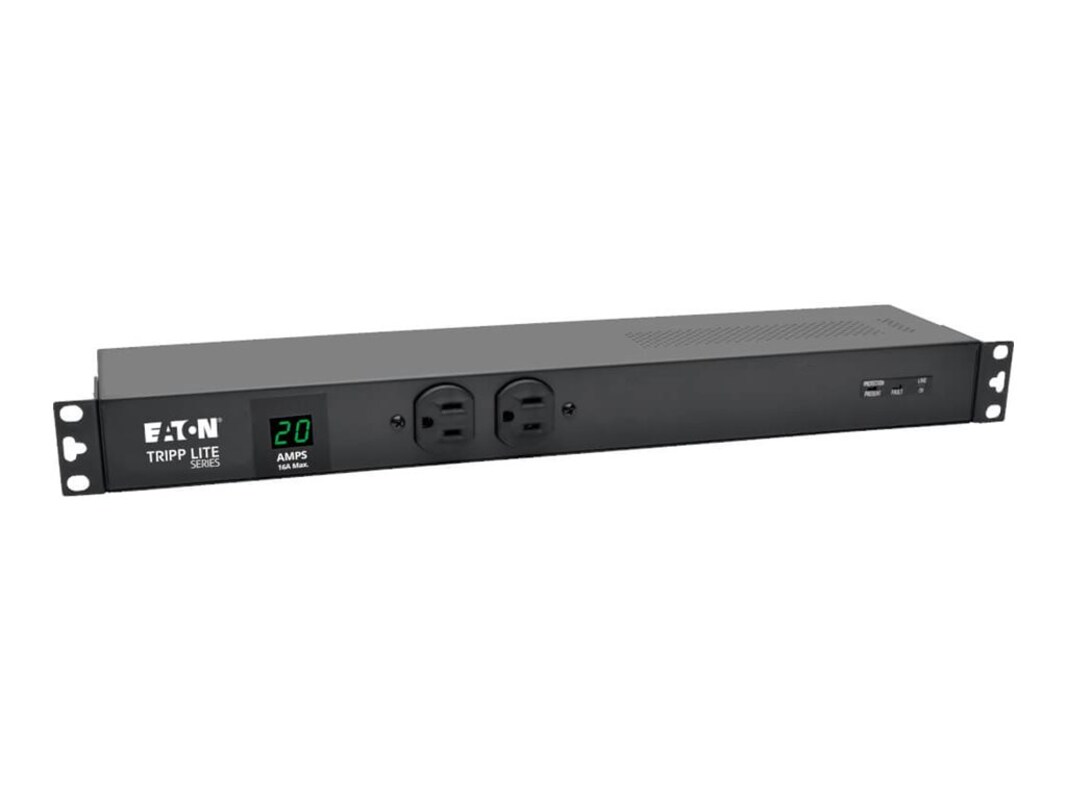

Tripp Lite Metered PDU + Isobar Surge 1.92kW 120V 1-Ph 3840 Joules 1U L5-20P 5-20P (12) 5-20R (2) 5-15R Outlets
-
In Stock
- Ships in 24-48 Hours
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Tripp Lite Metered PDU/Power Distribution Unit with Isobar Surge Suppression offers real-time local reporting of load level in Amps, plus premium ISOBAR network-grade AC surge and noise suppression. Digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added. Set of (3) front-panel LEDs provide notification of wiring fault, protection present and line OK status. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
4.60 lbs
-
Key Features
20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
Built-in 2-digit visual meter continuously reports PDU load level in Amps
ISOBAR Network-grade AC surge and noise suppression with 3840 Joules AC suppression rating and EMI/RFI filtering
Set of 3 diagnostic LEDs report LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green) status
Compatible with 120V AC sine wave input; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting this surge suppressor to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal output waveforms)
Attached NEMA L5-20P 20A 120V input plug with 15ft / 4.5m cord (NEMA 5-20P plug adapter included)
1U Horizontal rackmount format installs in one rack space
Switchless design prevents accidental shut-off
(12) NEMA 5-20R outlets (rear), (2) NEMA 5-15R outlets (front)
Included mounting accessories support installation in 2 and 4-post racks, with additional support for wall-mount and under-counter installation formats
Back panel grounding lug -
# Ports: 14Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA 5-20PConnector: Power NEMA L5-20 (M)
-
Unit, documentation
-
Attributes: MeteredColor: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 4.63lbs
-
1.75"h x 17.5"w x 4.5"d
-
Output Receptacles: (2) 5-15R; (12) 5-15/20R
PDU Plug Type: NEMA 5-20P; NEMA L5-20P
Input Cord Length: 15ft (4.57m) -
Power Provided: 1.92kWSurge Protection Rating: 3840JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
OUTPUT
Output Capacity Details: 1.92kW (120V), 2.03kW (127V), 1.6kW (100V); 20A maximum (Agency de-rated to 16A continuous)
Frequency Compatibility: 50/60Hz
Output Nominal Voltage: 100-127V nominal, single phase
Overload Protection: 20A Breaker
INPUT
PDU Input Voltage: 100V, 120V, 127V
Recommended Electrical Service: 20A 120V; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal waveforms)
Maximum Input Current: 20A
Maximum Input Details: Agency de-rated to 16A continuous
Output Receptacles: (2) 5-15R; (12) 5-15/20R
PDU Plug Type: NEMA 5-20P; NEMA L5-20P
Input Cord Length: 15ft (4.57m)
Input Phase: Single-Phase
SURGE / NOISE SUPPRESSION
AC Suppression Rating: 3840 Joules
AC Suppression Response Time: NM = 0ns, CM = <1ns
Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage: 140Vrms
AC Suppression Surge Current Rating: 60,000A
EMI/RFI Filtering: 40-80dB
Immunity: Conforms to IEEE 587 / ANSI C62.41 -
This product is subject to our return policy. Please see our complete return policy for details.
-
3 lbs
-
Compliant Standards: ANSI C62.41Compliant Standards: CSACompliant Standards: RoHSCompliant Standards: ULCompliant Standards: UL 1449 Third Edition
-
