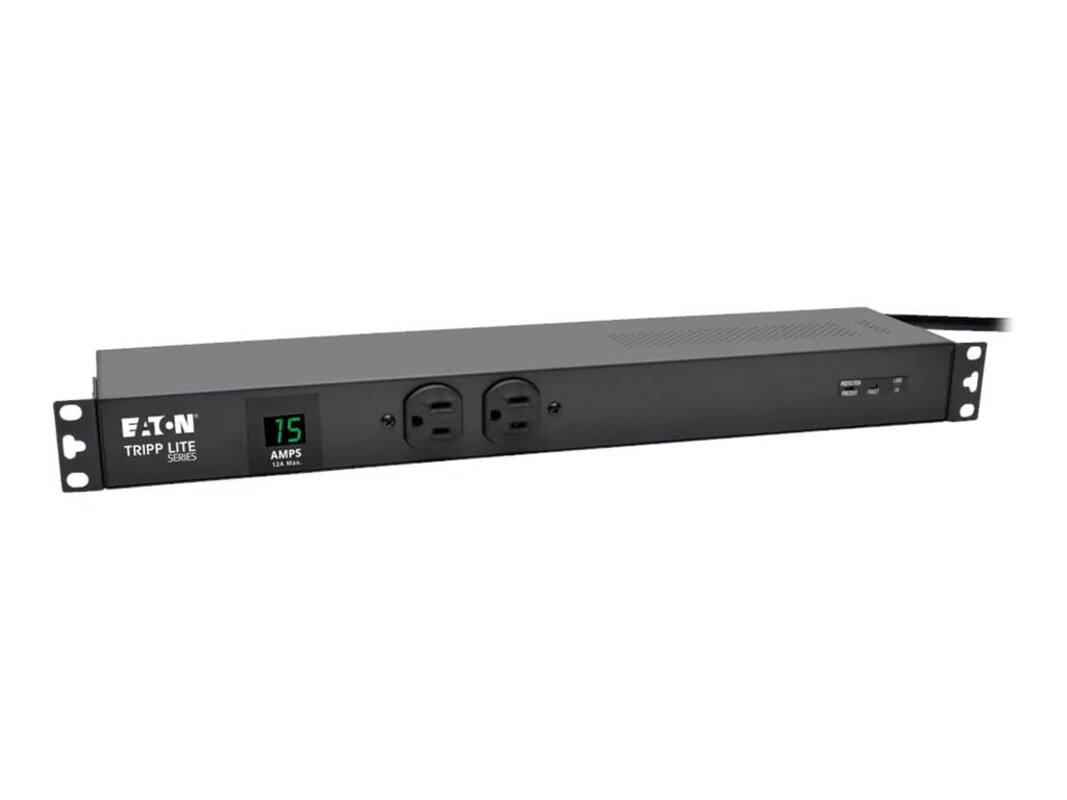

Tripp Lite Metered PDU + Isobar, 1.44kW 120V 15A, 3840 Joules, 1U RM, 5-15P 15ft Cord Input, (14) 5-15R Outlets

4.60 lbs

Features

15A single phase 120V Metered Power Distribution Unit (PDU) (Agency de-rated to 12A continuous)
Built-in 2-digit visual meter continuously reports PDU load level in amps
ISOBAR Network-grade AC surge and noise suppression with 3840 Joules AC suppression rating and EMI/RFI filtering
Set of (3) diagnostic LEDs report LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green) status
Compatible with 120VAC sine wave input; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting this surge suppressor to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal output waveforms)
Attached NEMA 5-15P 15A 120V input plug with 15ft/4.5m cord
1U Horizontal rackmount format installs in one rack space
Switchless design prevents accidental shut-off
(14) NEMA 5-15R outlets (2 front/12 rear)
Included mounting accessories support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation formats
Back panel grounding lug

USER INTERFACE, ALERTS & CONTROLS

Front Panel: Two digit LCD current meter reports PDU output load in Amperes
Front Panel LEDs: Set of (3) diagnostic LEDs continuously report status for LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green)
Switches: No power switch

SPECIAL FEATURES

TVSS Grounding: Rear grounding lug

CERTIFICATIONS

Tested to UL1449 3rd Edition (USA) and CSA (Canada), RoHS Compliant

PDU, documentation

1.75"h x 17.5"w x 4.5"d

Output Receptacles: (14) 5-15R
Outlet Type: NEMA 5-15R
Individual Outlet Switching: No
PDU Plug Type: NEMA 5-15P
Input Cord Length: 15ft

OUTPUT

Output Capacity Details: 1.44kW (120V), 1.52kW (127V), 1.2kW (100V); 15A maximum (Agency de-rated to 12A continuous)
Frequency Compatibility: 50/60Hz
Output Nominal Voltage: 100-127V nominal, single phase
Overload Protection: 15A Breaker?

INPUT

PDU Input Voltage: 100V, 120V, 127V
Recommended Electrical Service: 15A 120V; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal waveforms)
Maximum Input Current: 15A
Maximum Input Current Details: Agency de-rated to 12A continuous
Input Phase: Single-Phase

SURGE / NOISE SUPPRESSION

AC Suppression Rating: 3840 Joules
AC Suppression Response Time: NM = 0ns, CM = < 1ns
Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage: 140Vrms
AC Suppression Surge Current Rating: 60,000A
EMI/RFI Filtering: 40-80dB
Immunity: Conforms to IEEE 587/ANSI C62.41
