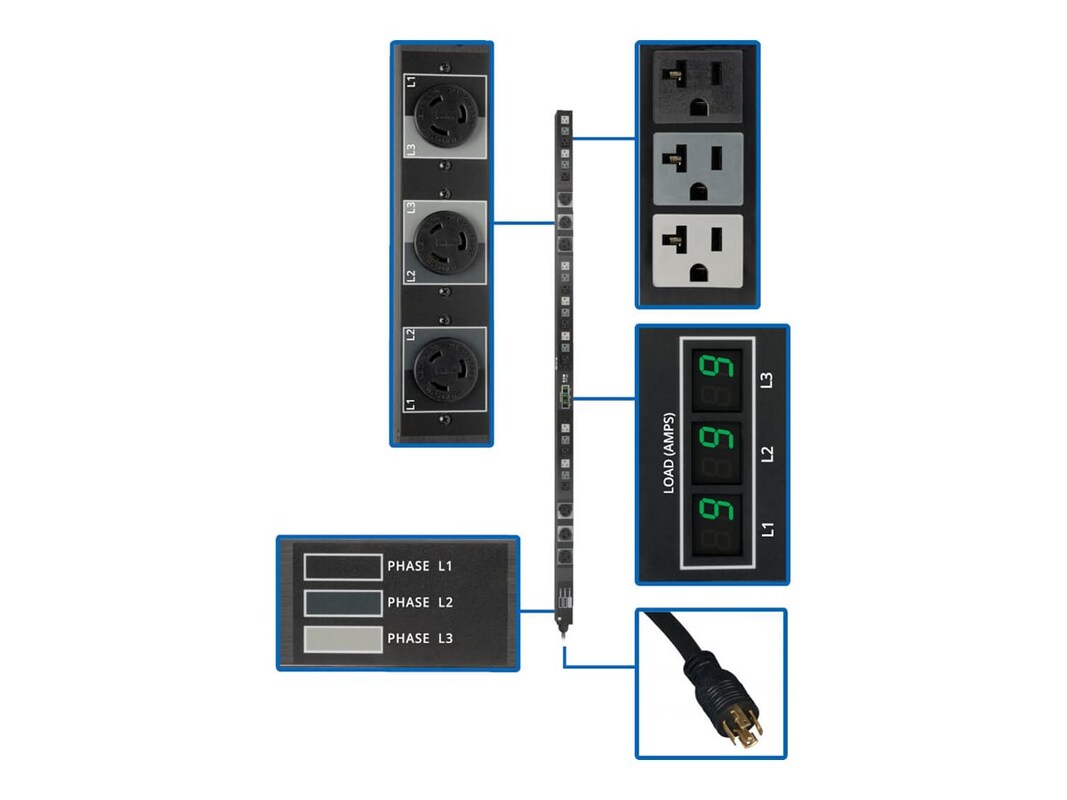

This Tripp Lite 3-phase Metered PDU / Power Distribution Unit gives you real-time local reporting of current levels in amps via set of (3) built-in digital meters. This enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. You get reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. Its high quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
12.60 lbs
-
Key Features
5.7kW 3-phase 208/120V Metered Power Distribution Unit (PDU)
Set of (3) built-in current meters continuously report input current per phase
Attached NEMA L21-20P 20A (3P+N+E) 208V 3-phase input plug with 6ft/1.8m cord
0U, 70"/178cm vertical form factor supports installation in 2 or 4-post equipment racks
(27) total outlets arranged in three breakered single phase output load banks
(21) NEMA 5-15/20R outlets output 120V
(6) NEMA L6-20R outlets output 208V
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications -
# Ports: 27Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L21-20Connector: Power NEMA L21-20 (M)Connector: Power NEMA L6-20 (F)
-
PDU, cord retention brackets, rack mounting brackets, documentation
-
Attributes: MeteredColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableManufacturer Product Line: Eaton Tripp Lite SeriesModel: PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URMWeight Taxonomy: 12.57lbs
-
70"h x 1.9"w x 2.2"d
-
Outlet quantity / type: (27) total - (6) NEMA L6-20R, (21) NEMA 5-15/20R
PDU Plug Type: NEMA L21-20P
Input cord length: 6ft (1.83m) -
Power Provided: 5.7kWVoltage Provided: 120VVoltage Provided: 208VVoltage Provided: AC 120/208V
-
Output Capacity: 5.7kVA total; 9.2A per bank input (balanced)
Frequency compatibility: 60Hz
Output nominal voltage: 208V L6-20R outlets / 120V NEMA 5-15/20R outlets
PDU Input Voltage: 208V
Maximum input current: 16A
Voltage compatibility: 208VAC, 3-phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
14.48 lbs
-
Compliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Warranty Period: 2 years
