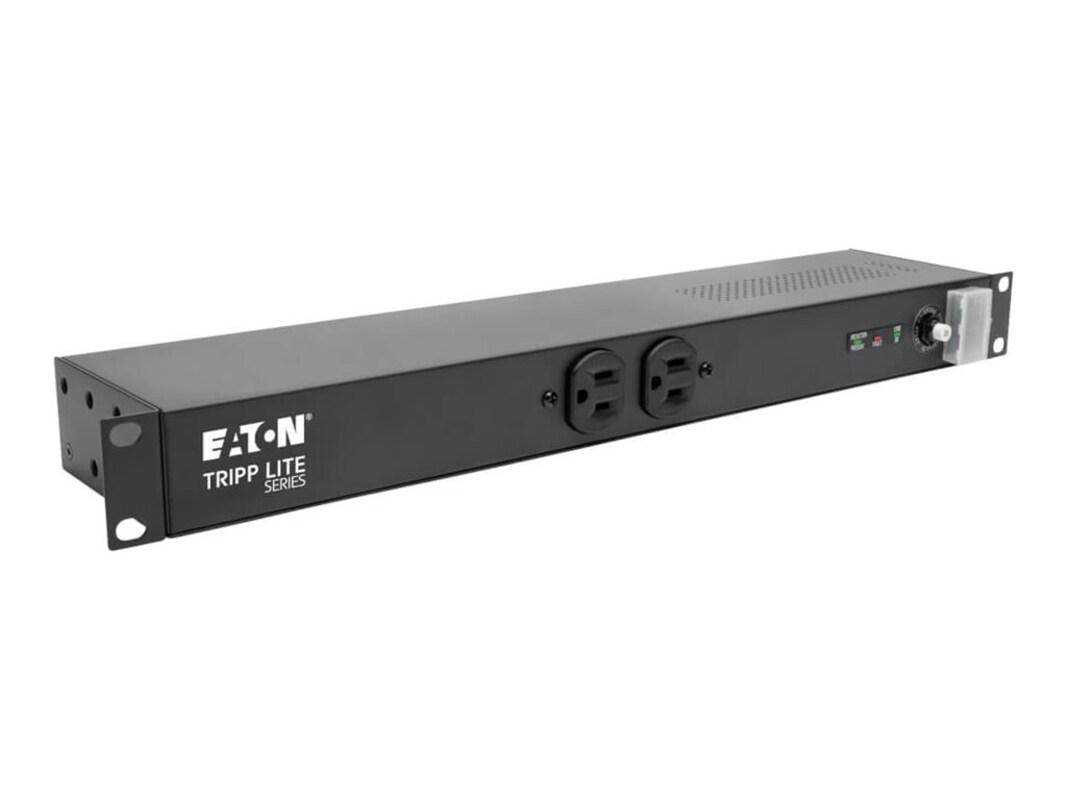

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rack mount, wall mount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 4.57 m (15-ft.) power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.
-
5.40 lbs
-
LEDS ALARMS & SWITCHES
Switches: Red illuminated power switch controls power to all outlets
Diagnostic LEDs: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
Locking switch cover: Transparent locking switch cover prevents accidental shutoff -
# Ports: 12Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-20Connector: Power NEMA L5-20 (M)
-
Unit, documentation
-
Color: BlackColor Family: BlackForm Factor: Rack-mountableManufacturer Product Line: Eaton Tripp Lite SeriesModel: Isobar Surge Protector Rackmount 20A 12 Outlet 15' Cord 1URM
-
1.7"h x 17.5"w x 4"d
-
Surge Protection Rating: 3840JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Voltage compatibility: 120VAC
Frequency compatibility: 50/60Hz
OUTPUT
Output capacity: 20A
Output capacity: 2400W
INPUT
Recommended electrical service: 120V
SURGE / NOISE SUPPRESSION
AC suppression rating: 3840 Joules
AC suppression response time: NM = 0ns, CM = < 1ns
Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage (RMS): 140V
AC suppression surge current rating: 96,000 amps
AC suppression components used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
Safe thermal fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through rating: 330V - UL Verified
EMI / RFI filtering: 40-80dB
Immunity: Conforms to IEE 587 / ANSI C62.41 -
This product is subject to our return policy. Please see our complete return policy for details.
-
6.3 lbs
-
39121610
-
Warranty Period: Limited lifetime
