In Stock
- Ships in 1-2 Business Days
Rackmount surge, spike and line noise protection
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

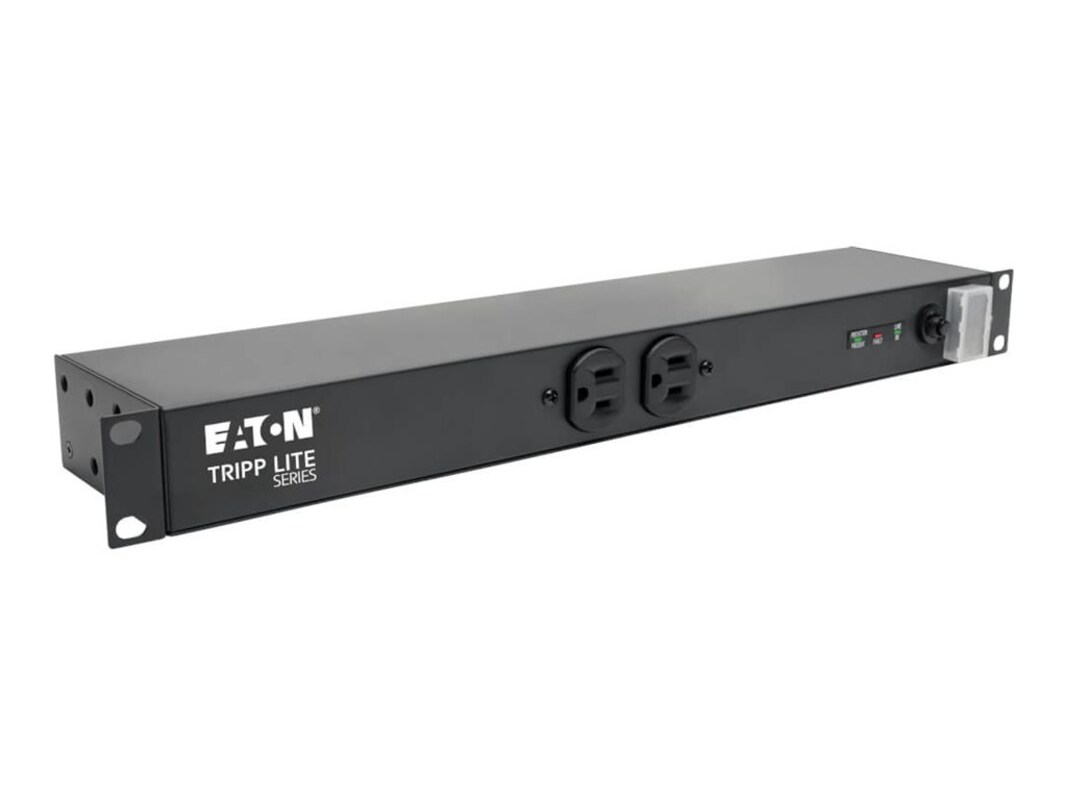

The Tripp Lite IBAR12 gives you network-grade surge and noise suppression in a versatile all-metal multi-mount unit. The detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. It uses only 1U of rack space when installed in any 19 inch EIA standard rack. Network grade AC surge suppression with EMI/RFI noise filtering is provided. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Its (12) outlets are distributed with (2) in front and (10) in the rear. The unit includes a 15 ft AC power cord and a guarded power switch to reduce the risk of accidental shutoff.
-
4.60 lbs
-
LEDS ALARMS & SWITCHES
Switches: Red illuminated power switch controls power to all outlets
Locking switch cover: Transparent locking switch cover prevents accidental shutoff -
# Ports: 12Connector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
Unit, rack mounting hardware, documentation
-
Attributes: SwitchedChassis Form Factor: Rack-mountableColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetime
-
1.75"h x 17.5"w x 4"d
-
(12) NEMA 5-15R outlets (2 front, 10 rear)
(1) NEMA 5-15P input plug, 15ft. cord -
Power Provided: 1800WSurge Protection Rating: 3840JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Voltage compatibility: 120VAC
Frequency compatibility: 50/60Hz
OUTPUT
Output capacity: 15A
Output capacity: 1800W
INPUT
Recommended electrical service: 120V,15A
SURGE / NOISE SUPPRESSION
AC suppression rating: 3840 Joules
AC suppression response time: NM = 0ns, CM = < 1ns
Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage (RMS): 140V
AC suppression surge current rating: 60,000 amps
AC suppression components used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
Safe thermal fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through rating: 400V - UL Verified
EMI / RFI filtering: 40-80dB
Immunity: Conforms to IEE 587 / ANSI C62.41 -
This product is subject to our return policy. Please see our complete return policy for details.
-
6.02 lbs
-
Compliant Standards: UL
-
OS Required: None
-
39121610
