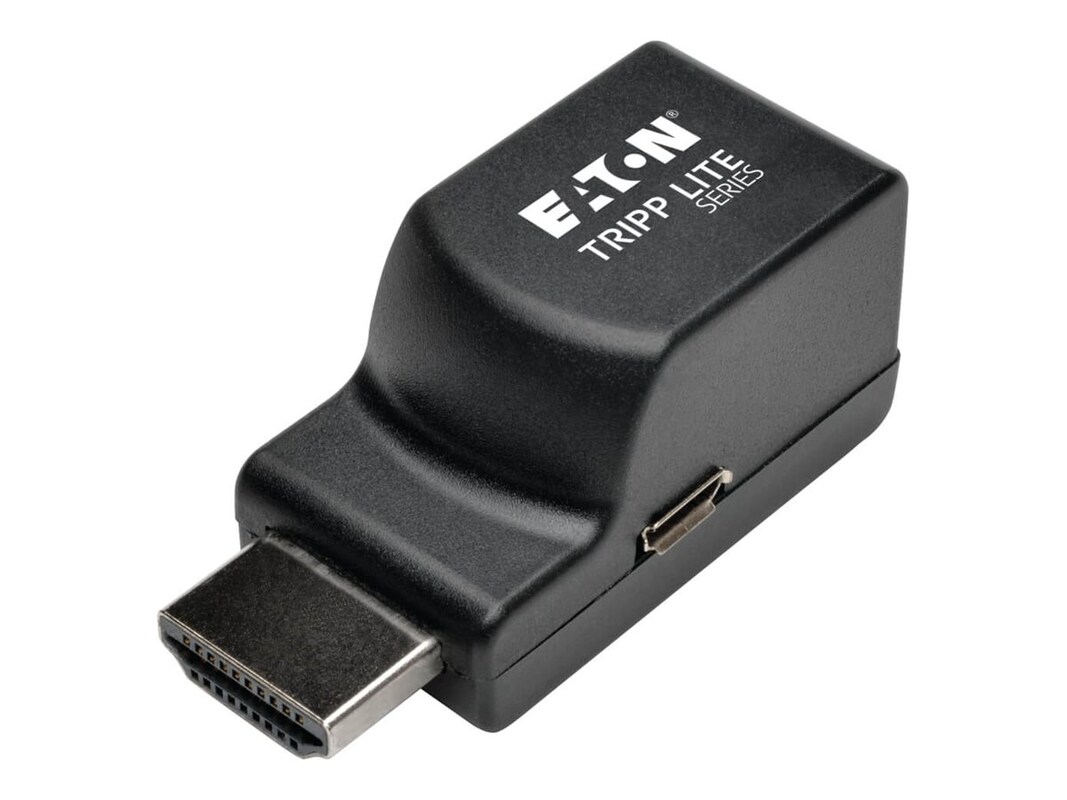

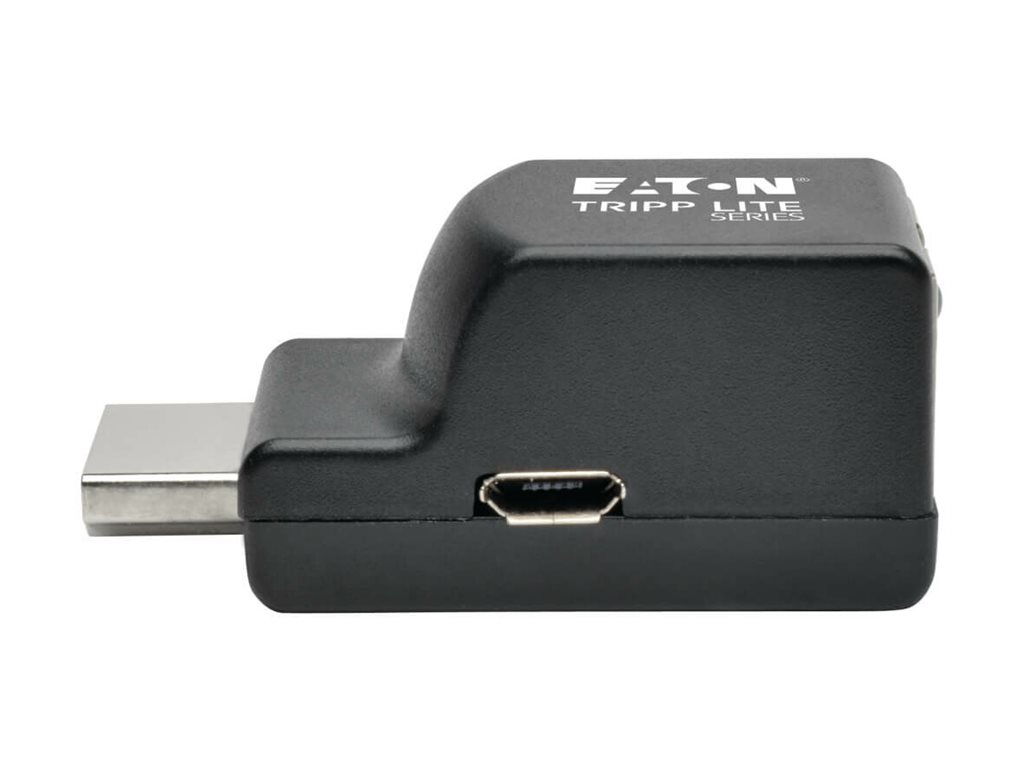

The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite’s B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It’s recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI’s built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite’s N202-Series) between this unit and the transmitter.
In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.
The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI’s built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite’s N202-Series) between this unit and the transmitter.
In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.
-
Works in tandem with Tripp Lite’s B126-002 and B126-004 transmitter units (sold separately).
Extends a 1080i (@ 60 Hz) signal up to 100 ft. (30.5 m).
Extends a 1080p (@ 60 Hz) signal up to 50 ft. (15.2 m).
Connects to transmitter with one Cat5e/6 cable.
Built-in HDMI male connector plugs directly into monitor.
Works with all operating systems and HDMI video sources.
Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004.
Supports 24-bit True Color (8 bits per channel) and HDCP.
Plug-and-play engineering—no software or drivers necessary.
No external power required; included USB Micro-B cable provides extra power when necessary.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. -
Connectivity Technology: Wired
-
receiver, USB Micro-B cable, documentation
-
Color: BlackForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: HDMI over Cat5e/Cat6 Passive Extender, Low-Profile Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 100 ft. (30.5 m)Product Type: AV Extender
-
Networking Type: Video/audio extender
-
(1) RJ-45 (F)
(1) HDMI (M)
(1) Micro USB Type B (F) -
Networking Protocol: 24-bit True Color supportNetworking Protocol: 7.1 channel audio supportNetworking Protocol: HDCP compliantNetworking Protocol: USB powered
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0 lbs
-
Compliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
43222619
-
Warranty Period: 1-year warranty
