- Ethernet 40GBase-PLR4 Transceiver
- 40GB/s Transfer Rate
- 40 Gigabit Ethernet Protocol(s)
- REACH, RoHS, MSA SFF-8436 Compliant

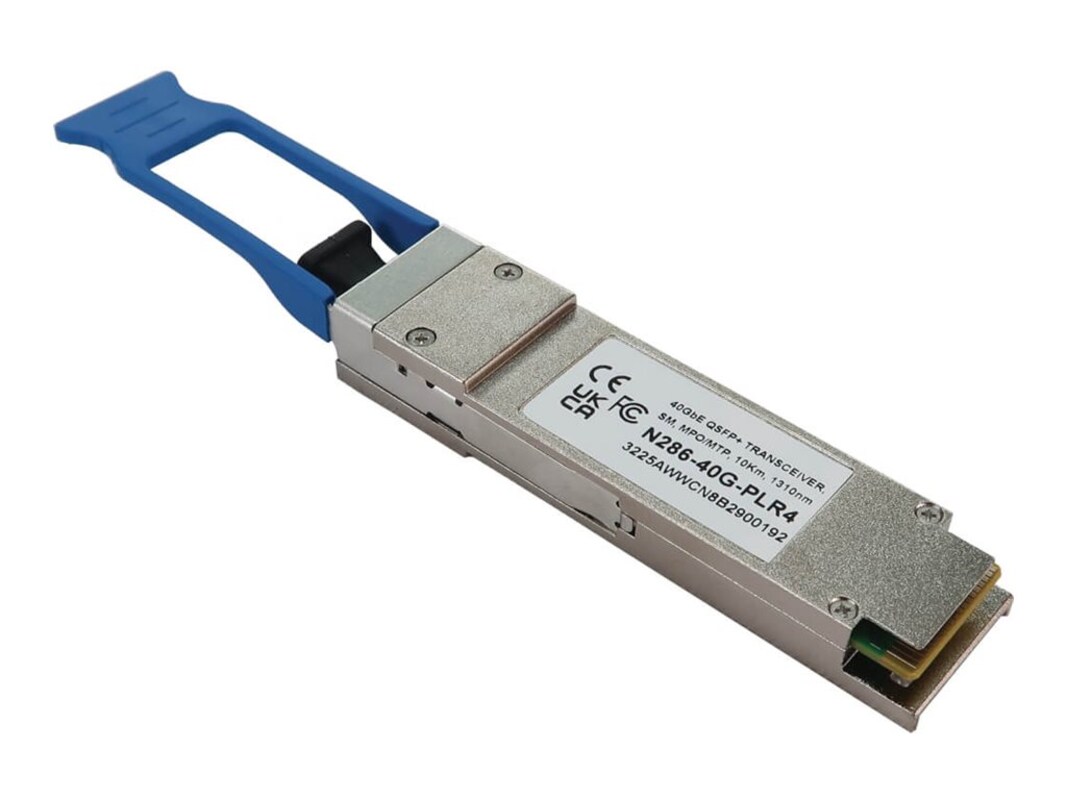

This QSFP+ transceiver allows you to connect a singlemode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) using a 1260 to 1360 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
The MSA-compliant N286-40G-PLR4 functions just like the equivalent Cisco QSFP-4X10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-4X10G-LR-S.
This input/output device is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an MPO/MTP connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
The MSA-compliant N286-40G-PLR4 functions just like the equivalent Cisco QSFP-4X10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-4X10G-LR-S.
This input/output device is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an MPO/MTP connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
-
QSFP+ transceiver module 100% compatible with Cisco’s QSFP-4X10G-LR-S module
Provides 40 Gbps throughput up to 10 km (6.2 mi.) via singlemode fiber cabling
MPO/MTP male connector supports 40GBase-LR4 signal at 1260–1360 nm wavelength
Hot-swappable interface lets you install and uninstall without shutting down
Meets or exceeds MSA standards and works in all MSA-compliant platforms -
Cabling Type: Ethernet 40GBase-PLR4Cabling Type: Ethernet 40GBase-LR4Connectivity Technology: Wired
-
transceiver, documentation
-
Color: SilverForm Factor: Plug-in moduleManufacturer Product Line: Eaton Tripp Lite SeriesModel: Cisco-Compatible QSFP+ Transceiver - 40GBase-PLR4, Singlemode MPO/MTP, 1310 nm, 10 km (6.2 mi.)Warranty Period: 3 years
-
Networking Type: QSFP+ transceiver module
-
Data Transfer Rate: 40GB/sData Transfer Rate: 40Gbps
-
(1) MTP/MPO (F)
-
Networking Protocol: 40 Gigabit Ethernet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.11 lbs
-
Compliant Standards: MSA SFF-8436Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: UKCA
-
Cisco or other compatible network router, server or switch
-
